Description

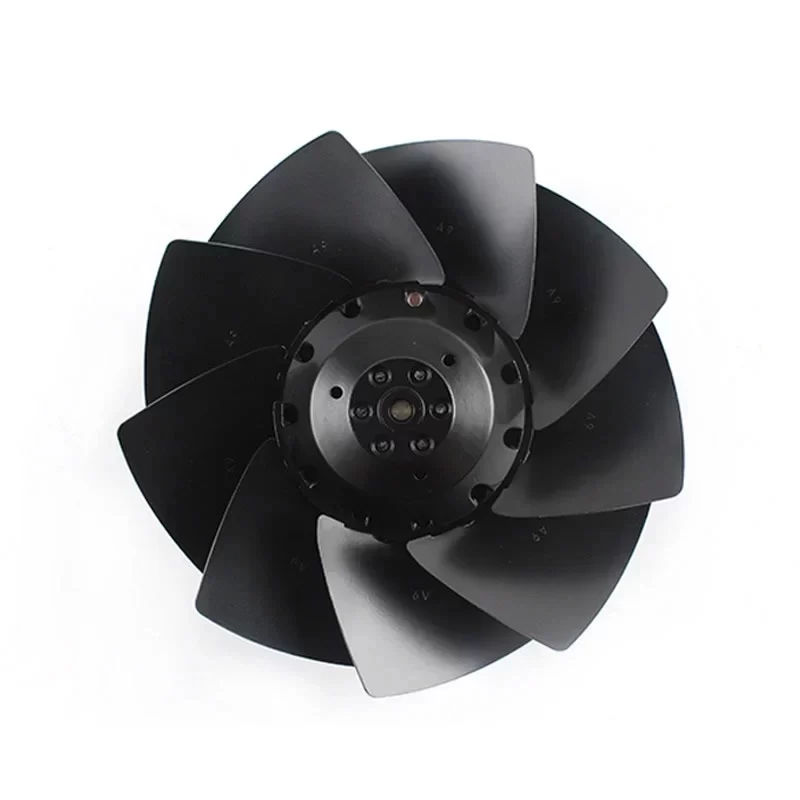

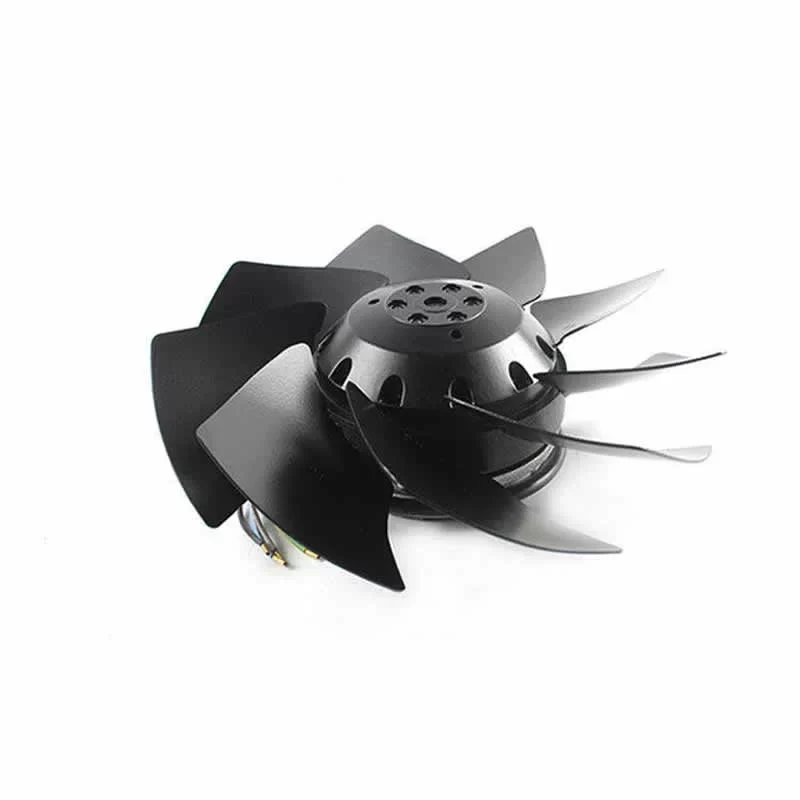

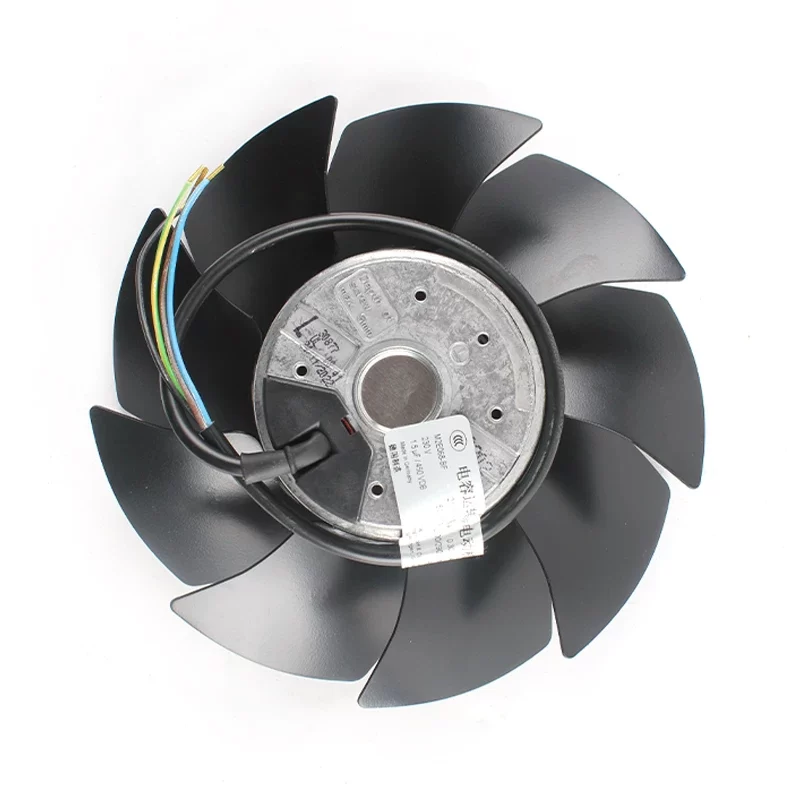

The ebmpapst A2E200-AI38-01 is a high-performance 230VAC single-phase AC Axial Fan from the S-series, featuring 9 sickle-shaped blades with an Impeller Size of 200 mm. Specifically engineered for mission-critical industrial refrigeration and heat exchangers, this unit features compact overall Dimensions of 200 x 200 x 62 mm. Driven by the M2E068-BF external rotor motor with maintenance-free ball bearings and a 1.5 µF / 450 VDB capacitor connection, it operates on a 230 VAC supply. Delivering a Power Consumption of 64 W (50 Hz) / 78 W (60 Hz) and a Current Draw of 0.30 A / 0.34 A at a rated speed of 2600 / 2900 RPM under free air (fa) conditions, this unit ensures superior thermal management with IP44 protection and an extended service life in continuous S1 environments at the end.
A2E200-AI38-01 Fan Parameters
Model Number: A2E200-AI38-01
Motor Model: M2E068-BF
Manufacturer: ebmpapst
Type: AC Axial Fan – Sickle-shaped blades (S series)
Impeller Size: 200 mm
Dimensions: 200 x 62 mm
Weight: 1.33 kg
Bearing Type: Ball bearing
Nominal Voltage: 230 VAC
Phase: 1~
Frequency: 50 / 60 Hz
Method of Obtaining Data: fa (Free air)
Current Draw: 0.30 / 0.34 A
Starting Current: 0.55 / 0.54 A
Power Consumption: 64 / 78 W
Rated Speed: 2600 / 2900 RPM
Max. Air Flow: 512.1 / 570.9 CFM (870.0 / 970.0 m³/h / 14.50 / 16.17 m³/min)
Max. Static Pressure: 15.30 / 15.30 mmH₂O (150.0 / 150.0 Pa / 0.60 / 0.60 inAq)

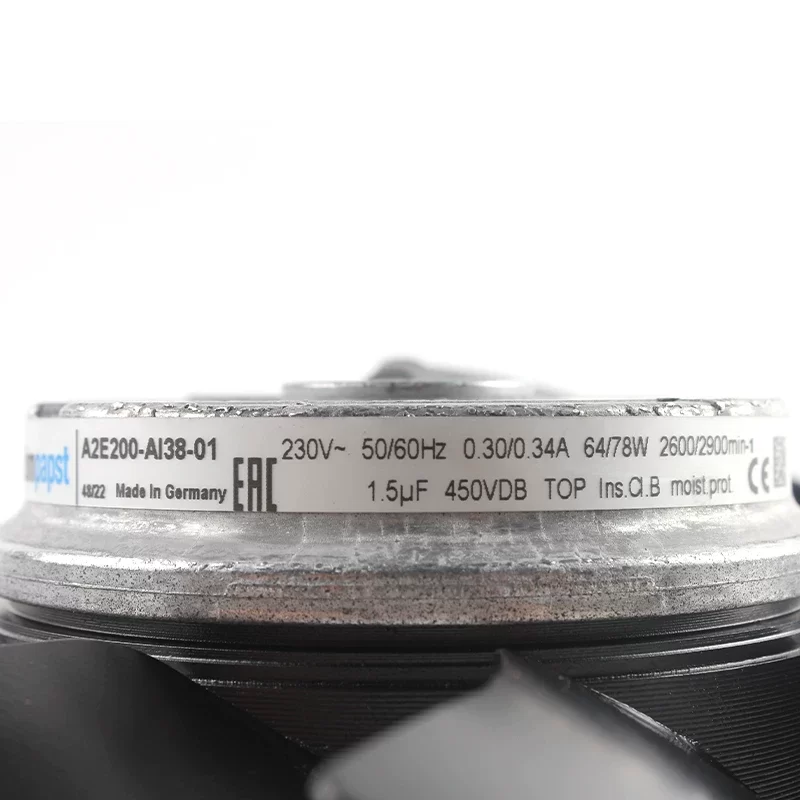

Capacitor: 1.5 µF / 450 VDB (S0 CE)
Number of Blades: 9
Impeller Material: Sheet steel, painted black
Rotor Surface: Painted black
Direction of Airflow: “A”
Direction of Rotation: Counterclockwise (viewed toward rotor)
Insulation Class: “B”
Degree of Protection: IP44
Environmental Protection Class: H1
Touch Current: < 0.75 mA
Motor Protection: Thermal overload protector (TOP) internally connected
Installation Position: Shaft horizontal or rotor on bottom
Condensation Drainage Holes: On rotor side
Mode: S1
Protection Class: I
Max. Ambient Temperature: 65 / 65 °C
Min. Ambient Temperature: -25 °C
Max. Storage Temperature: +80 °C
Min. Storage Temperature: -40 °C
Standard Compliance: EN 60335-1; CE
Approval: CCC; EAC
Application
The ebmpapst A2E200-AI38-01 fan is the primary cooling component for refrigeration condensers, small heat exchangers, and industrial ventilation systems requiring high-velocity 230V single-phase axial airflow via a 200mm sickle-shaped impeller in a 62mm low-profile configuration.
