Description

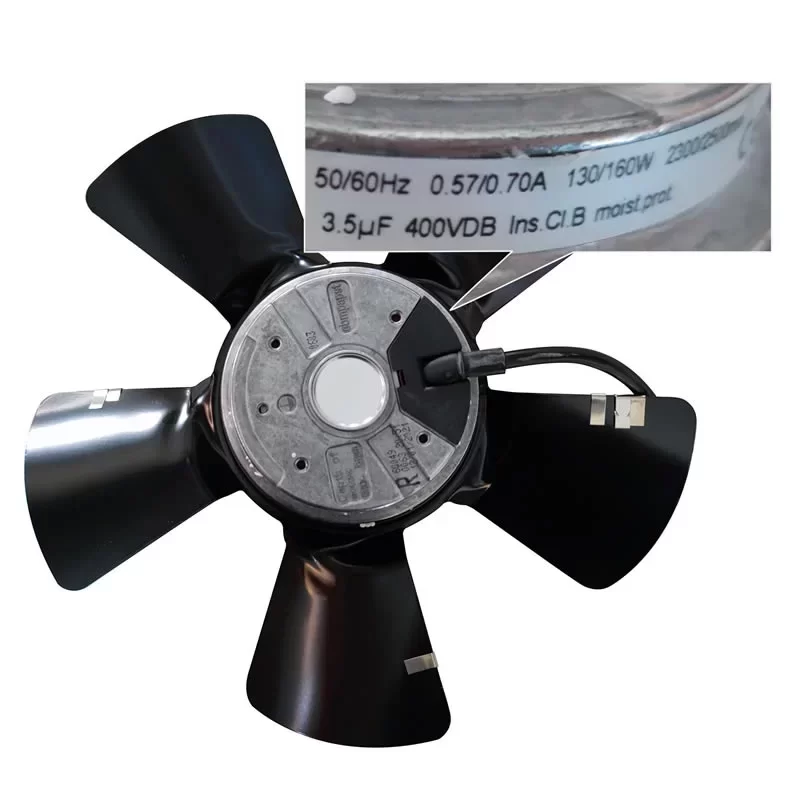

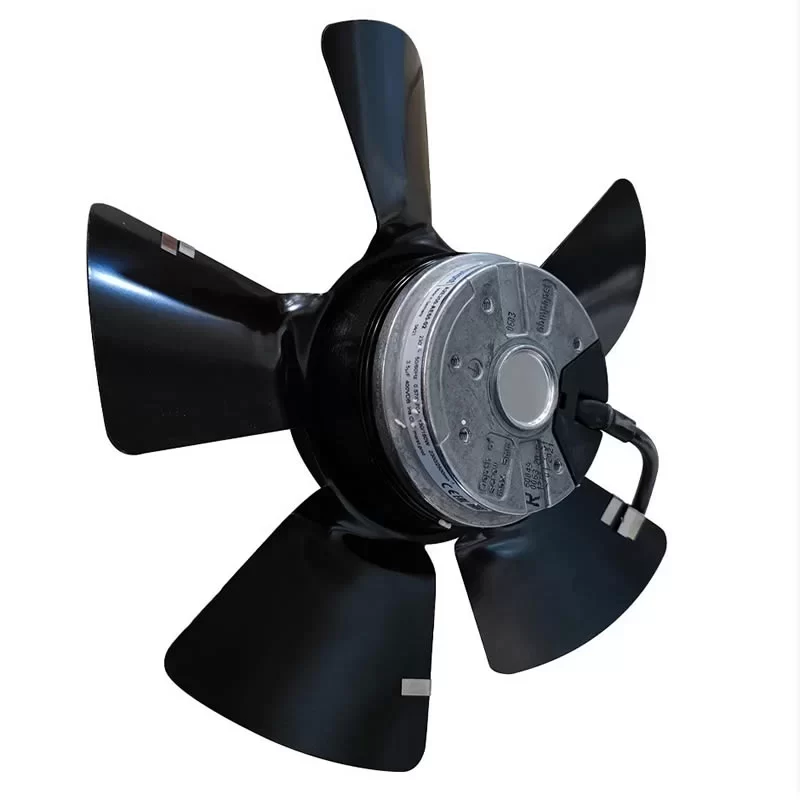

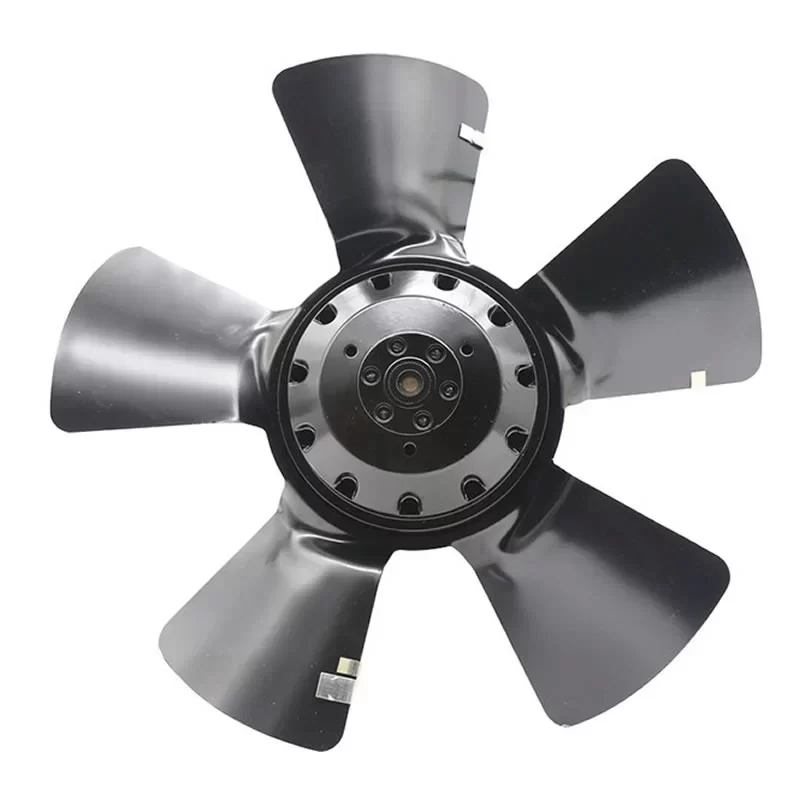

The ebmpapst A2E250-AE65-02 is a high-performance 230VAC single-phase AC Axial Fan featuring 5 straight blades with a robust Impeller Size of 250 mm. Driven by the M2E068-DF external rotor motor with maintenance-free ball bearings and a 4 µF / 400 VDB capacitor, this unit is specifically engineered for mission-critical heat exchangers, air conditioning units, and industrial cooling applications. Operating on a 230 VAC supply, it delivers a Power Input of 115 W / 165 W and a Current Draw of 0.51 A / 0.74 A at rated speeds of 2550 / 2750 RPM. Featuring a rugged sheet steel construction with a black-coated finish, it ensures superior aerodynamic efficiency, high static pressure capability (150 Pa), and reliable continuous S1 operation at the end.
A2E250-AE65-02 Fan Parameters
Model Number: A2E250-AE65-02
Motor Model: M2E068-DF
Manufacturer: ebmpapst
Type: AC Axial Fan – 5 Straight blades
Impeller Size: 250 mm
Dimensions: Ø 250 x 82.5 mm
Weight: 2.2 kg
Bearing Type: Ball bearing
Nominal Voltage: 230 VAC
Phase: 1~
Frequency: 50 / 60 Hz
Method of Obtaining Data: rfa (Running at free air)
Current Draw: 0.51 / 0.74 A
Starting Current: 0.90 / 0.90 A
Power Input: 115 / 165 W
Rated Speed: 2550 / 2750 RPM
Max. Air Flow: 947.6 / 1024.1 CFM (1610.0 / 1740.0 m³/h / 26.83 / 29.00 m³/min)
Max. Static Pressure: 15.30 / 13.26 mmH₂O (150.0 / 130.0 Pa / 0.60 / 0.52 inAq)
Capacitor: 4.0 µF / 400 VDB (P0 standard)
Blade Material: Sheet steel, painted black
Rotor Surface: Painted black
Number of Blades: 5
Direction of Airflow: “A” (Inlet over struts)
Direction of Rotation: Clockwise (viewed toward rotor)
Insulation Class: “B”
Degree of Protection: IP44
Humidity Class: F1-2 / H1
Touch Current: < 0.75 mA (acc. IEC 60990, Fig. 4, TN system)
Motor Protection: Thermal overload protector (TOP) wired internally
Condensation Drainage Holes: On rotor side
Cable Exit: Variable
Installation Position: Shaft horizontal or rotor on bottom; rotor on top on request
Mode: S1 (Continuous operation)
Protection Class: I (with customer connection of protective earth)
Max. Ambient Temperature: 55 / 50 °C
Min. Ambient Temperature: -25 °C
Standard Compliance: EN 60335-1; CE; UKCA
Approval: CCC; EAC; UL; VDE
Application
The ebmpapst A2E250-AE65-02 axial fan is the primary cooling solution for refrigeration condensers, heat pump evaporators, and industrial ventilation systems requiring high-volume 230V single-phase axial airflow in a 250mm configuration.
