Description

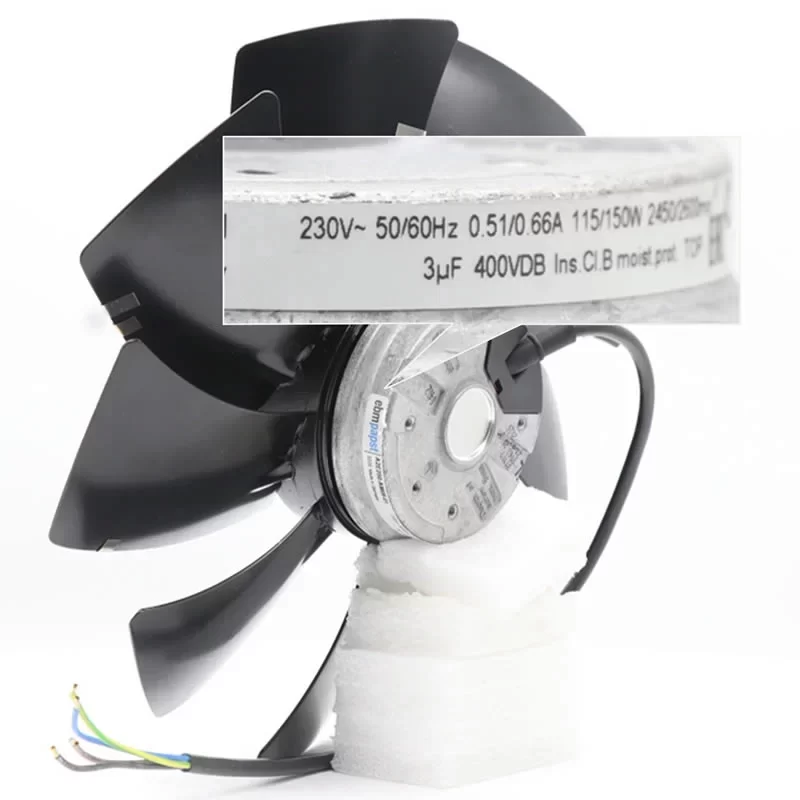

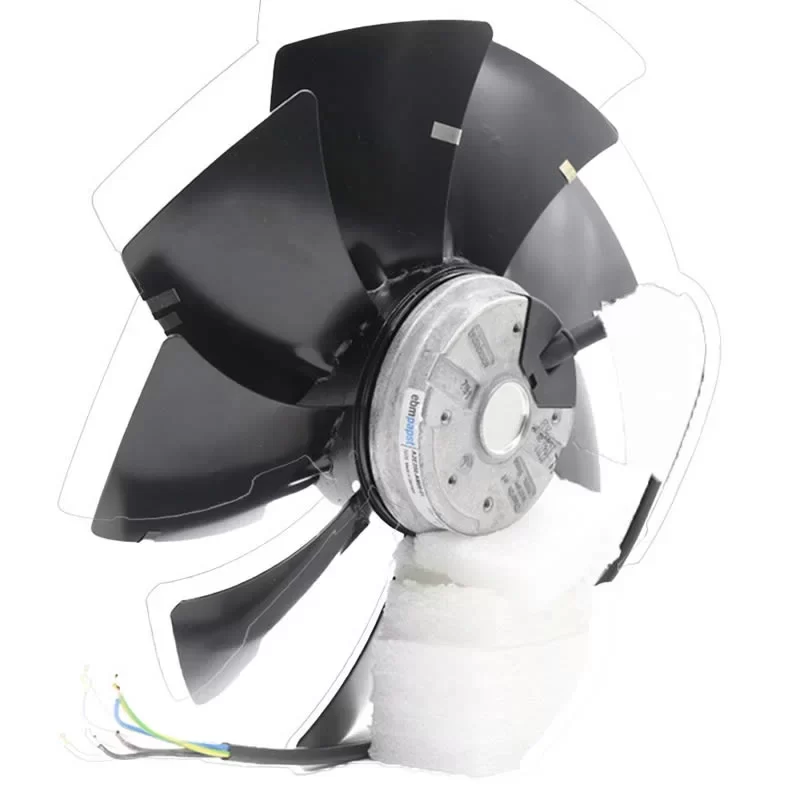

The ebmpapst A2E250-AM06-01 is a high-performance 230VAC single-phase AC Axial Fan featuring 7 blades with a robust Impeller Size of 250 mm. Driven by the M2E068-CF external rotor motor with maintenance-free ball bearings and a 3 µF / 400 VDB capacitor, this unit is specifically engineered for mission-critical industrial ventilation, refrigeration condensers, and air conditioning applications. Operating on a 230 VAC supply, it delivers a Power Consumption of 115 W / 150 W and a Current Draw of 0.51 A / 0.66 A at rated speeds of 2450 / 2600 RPM. Featuring a rugged sheet steel construction with a black-painted finish and an internally connected thermal overload protector, it ensures superior aerodynamic efficiency, durability, and reliable continuous S1 operation in demanding HVAC environments at the end.
A2E250-AM06-01 Fan Parameters
Model Number: A2E250-AM06-01
Motor Model: M2E068-CF
Manufacturer: ebmpapst
Type: AC Axial Fan
Impeller Size: 250 mm
Dimensions: Ø 250 x 72 mm
Weight: 1.9 kg
Bearing Type: Ball bearing
Nominal Voltage: 230 VAC
Phase: 1~
Frequency: 50 / 60 Hz
Method of Obtaining Data: fa (Free air)
Current Draw: 0.51 / 0.66 A
Starting Current: 0.88 / 0.87 A
Power Consumption: 115 / 150 W
Rated Speed: 2450 / 2600 RPM
Max. Air Flow: 971.2 / 1030.0 CFM (1650.0 / 1750.0 m³/h / 27.50 / 29.17 m³/min)
Max. Back Pressure: 12.24 / 8.67 mmH₂O (120.0 / 85.0 Pa / 0.48 / 0.34 inAq)
Capacitor: 3.0 µF / 400 VDB (S0 / CE standard)
Blade Material: Sheet steel, painted black
Rotor Surface: Painted black
Number of Blades: 7
Airflow Direction: “A”
Direction of Rotation: Counter-clockwise (viewed toward rotor)
Insulation Class: “B”
Degree of Protection: IP44
Moisture (F) / Environmental (H) Protection Class: H1
Touch Current: < 0.75 mA (acc. IEC 60990, Fig. 4, TN system)
Motor Protection: Thermal overload protector (TOP) internally connected
Condensation Drainage Holes: On rotor side
With Cable: Variable
Installation Position: Shaft horizontal or rotor on bottom; rotor on top on request
Mode: S1 (Continuous operation)
Protection Class: I (with customer connection of protective earth)
Max. Ambient Temperature: 65 / 50 °C
Min. Ambient Temperature: -25 °C
Max. Storage Temperature: +80 °C
Min. Storage Temperature: -40 °C
Standard Compliance: EN 60335-1; CE
Approval: EAC
Application
The ebmpapst A2E250-AM06-01 axial fan is the primary cooling solution for refrigeration condensers, industrial dry coolers, and heat pump evaporators requiring robust 230V single-phase axial airflow in a 250mm configuration.
