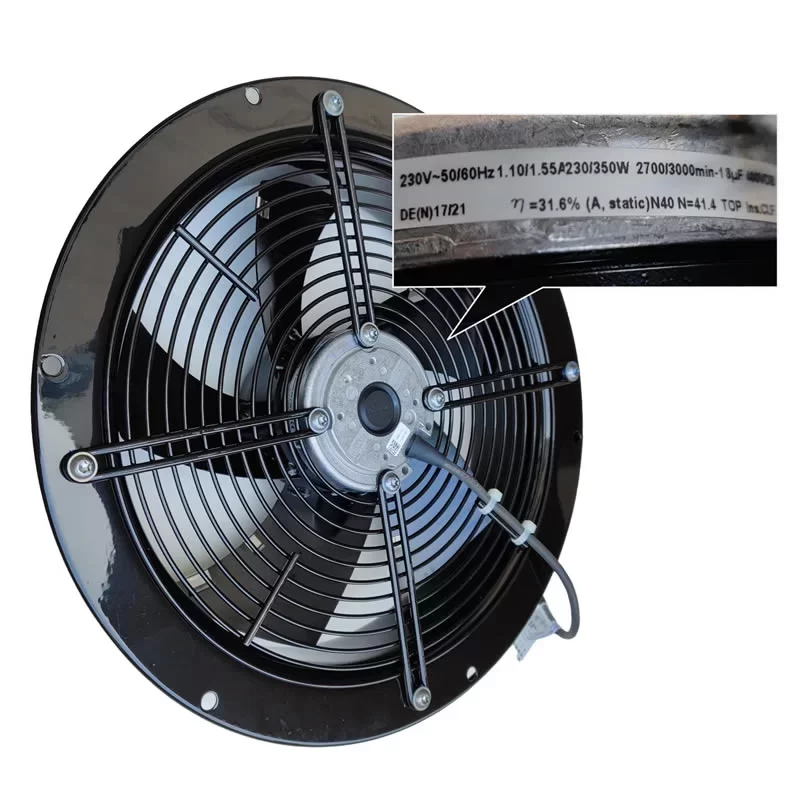

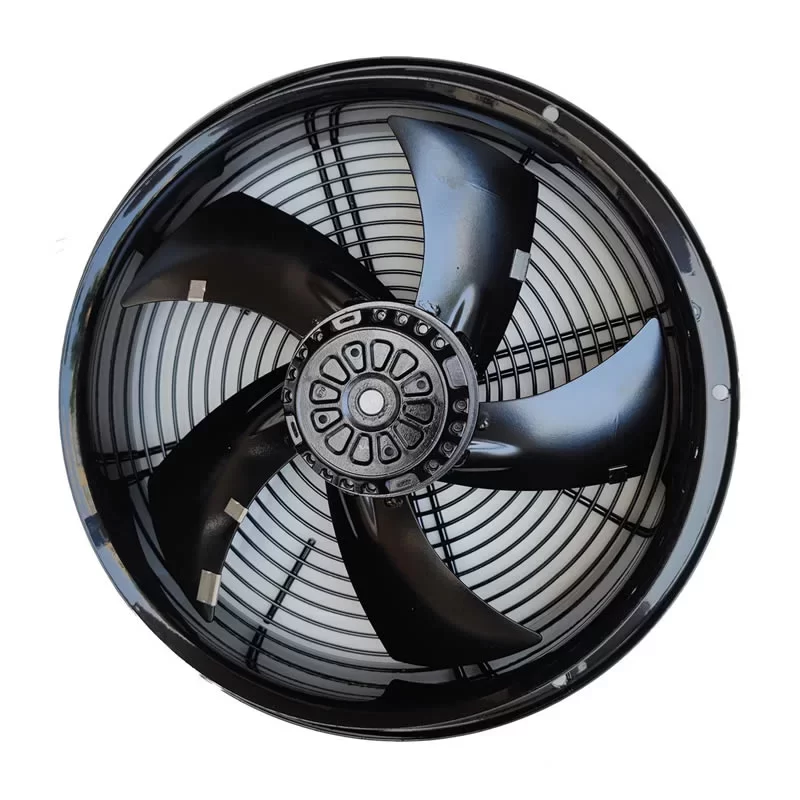

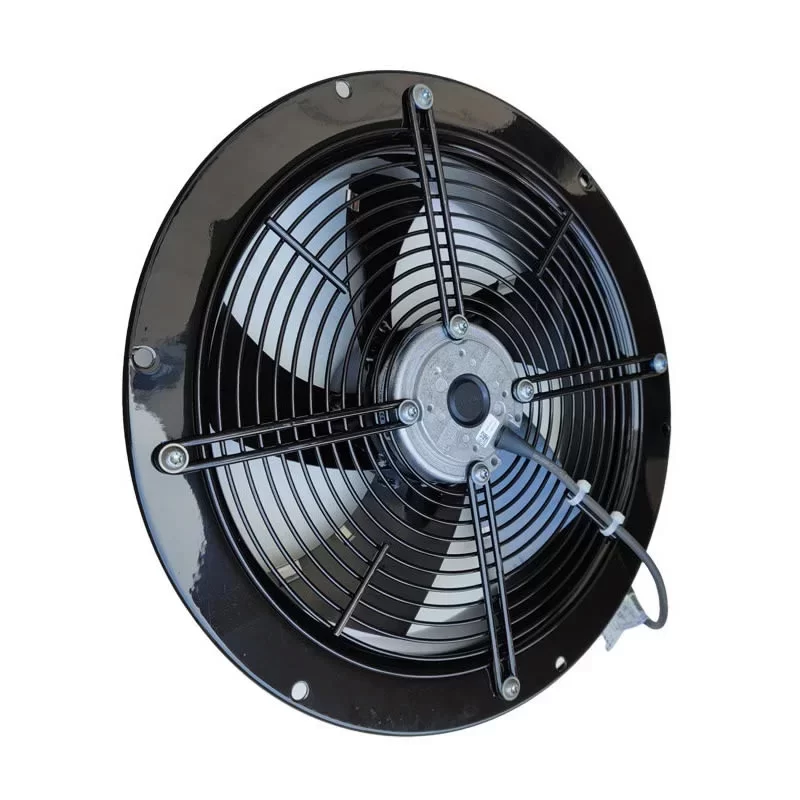

A2E300-AP02-01 ebmpapst 230V 300mm AC Axial Fan

Description

The ebmpapst A2E300-AP02-01 is a high-performance 230VAC AC Axial Fan featuring a 300 mm specialized aerodynamic sickle-shaped sheet steel impeller, specifically engineered for mission-critical cooling in Industrial Frequency Converters and specialized ventilation systems. Driven by an M2E074-DF external rotor motor with maintenance-free ball bearings and moisture protection (H1), this 3.13 kg unit operates at 230 VAC / 50/60 Hz delivering a Max. Power Consumption of 230.0 / 350.0 W and a Max. Current Draw of 1.10 / 1.55 A at a rated speed of 2700 / 3000 RPM. This High-performance unit achieves a Max. Air Flow of 2245.0 m³/h at optimum efficiency, with a Max. Static Pressure of 16.32 / 5.10 mmH₂O (160.0 / 50.0 Pa / 0.64 / 0.20 inAq). Featuring a robust construction with an integrated thermal overload protector (TOP) and black painted motor surface, this IP44-rated unit meets ErP 2015 efficiency standards (N=41.4) and is optimized for environments requiring high reliability and industrial-grade airflow in VFD systems at the end.

A2E300-AP02-01 Fan Parameters
Model Number: A2E300-AP02-01
Manufacturer: ebmpapst
Motor Model: M2E074-DF
Type: AC Axial Fan
Impeller Size: 300 mm
Weight: 3.13 kg
Origin: Germany
Bearing Type: Ball bearing
Phase: 1~
Nominal Voltage: 230 VAC
Voltage Range: 200 – 240 VAC
Connection Type: Variable cable (Customer connection)
Frequency: 50 / 60 Hz
Max. Current Draw: 1.10 / 1.55 A
Max. Power Consumption: 230.0 / 350.0 W
Starting Current: 2.2 / 2.1 A
Capacitor: 8.0 µF / 400 VDB
Rated Speed: 2700 / 3000 RPM
Max. Air Flow: 1321.4 CFM (2245.0 m³/h / 37.42 m³/min)
Max. Static Pressure: 16.32 / 5.10 mmH₂O (160.0 / 50.0 Pa / 0.64 / 0.20 inAq)
Working Air Flow: 2245.0 m³/h
Static Pressure Increase: 143.0 / 160.0 Pa
Overall Efficiency (ηes): 31.6% (Efficiency grade N: 41.4)
Touch Current: < 0.75 mA
Number of Blades: 5
Direction of Air Flow: "V"
Direction of Rotation: Counter-clockwise (viewed toward rotor)
Motor Protection: Thermal overload protector (TOP) internally connected
Insulation Class: "F"
Moisture Protection Class: H1
Degree of Protection: IP44 (installation-dependent)
Protection Class: I (with customer connection of protective earth)
Operation Mode: S1 (Continuous operation)
Condensation Drainage Holes: On rotor side
Material of Impeller: Sheet steel, painted black
Surface of Rotor: Painted black
Ambient Temperature (Max.): 70 / 50 °C
Min. Operating Temperature: -25 °C
Permitted Storage Temp.: -40 °C to +80 °C
Standard Compliance: EN 60335-1; CE; CCC; EAC

Application
The ebmpapst A2E300-AP02-01 axial fan is the primary cooling component for industrial frequency converters and high-performance ventilation units requiring stable air throughput and ErP 2015 compliant efficiency in 230V environments.
