Description

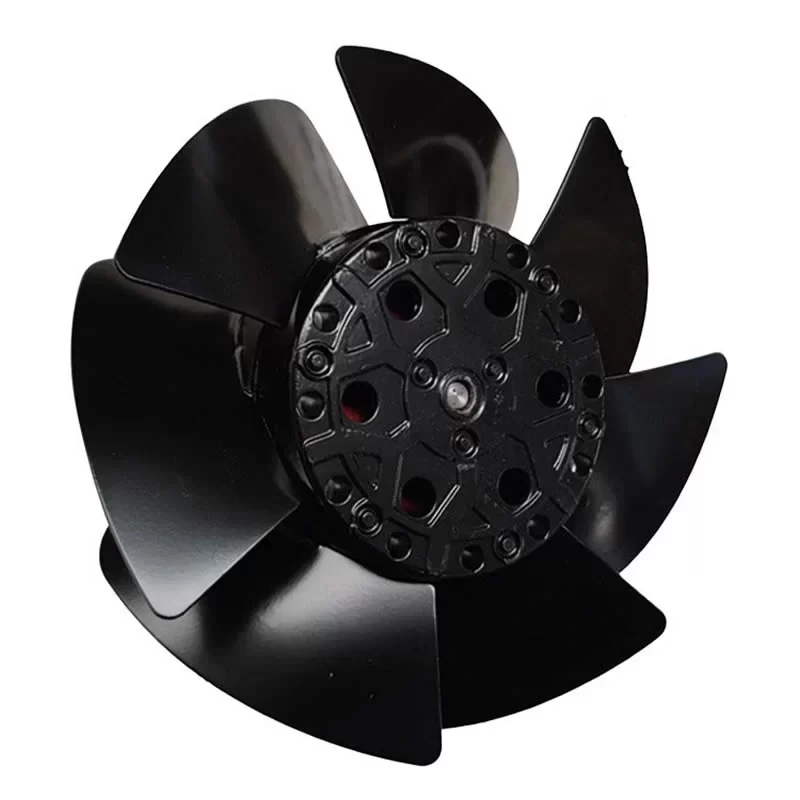

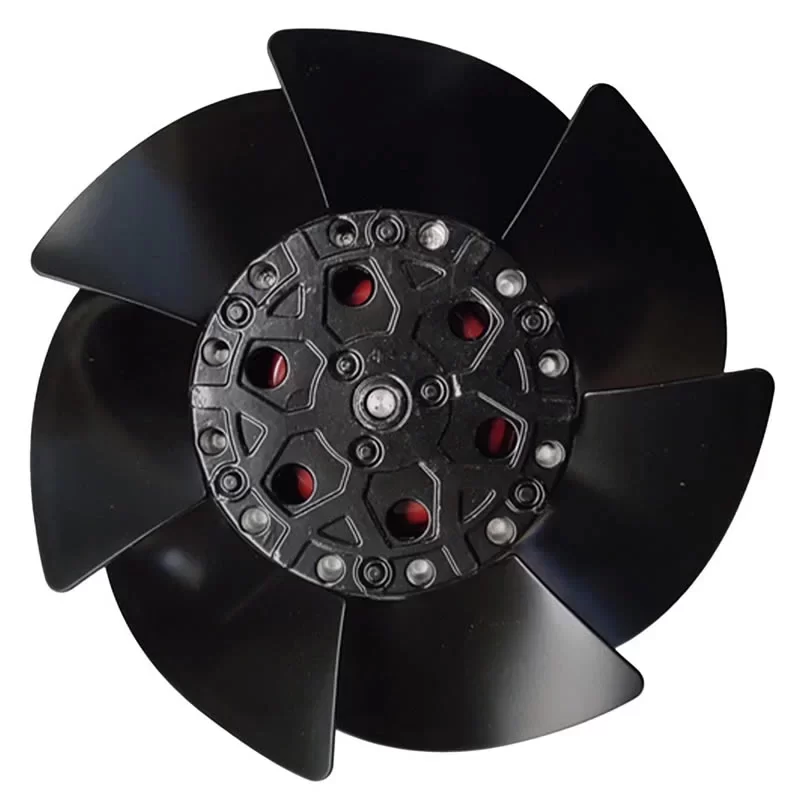

The ebmpapst A2S130-AA03-39 is a high-performance 230VAC single-phase AC Axial Fan with an Impeller Size of 130 mm. Specifically engineered for mission-critical cooling in industrial control cabinets and electronic enclosures, this unit features overall Dimensions of 138.3 x 138.3 x 57 mm. Driven by the M2S052-CA external rotor motor with maintenance-free ball bearings, it operates on a 230 VAC supply, delivering a Power Consumption of 45 W (50 Hz) / 39 W (60 Hz) and a Current Draw of 0.31 A / 0.25 A at a rated speed of 2800 / 3250 RPM under free air conditions. Featuring a rugged sheet steel impeller with a black painted surface and a die-cast aluminum housing, this 130 mm unit ensures superior thermal management with IP20 protection and an extended service life in continuous S1 environments at the end.

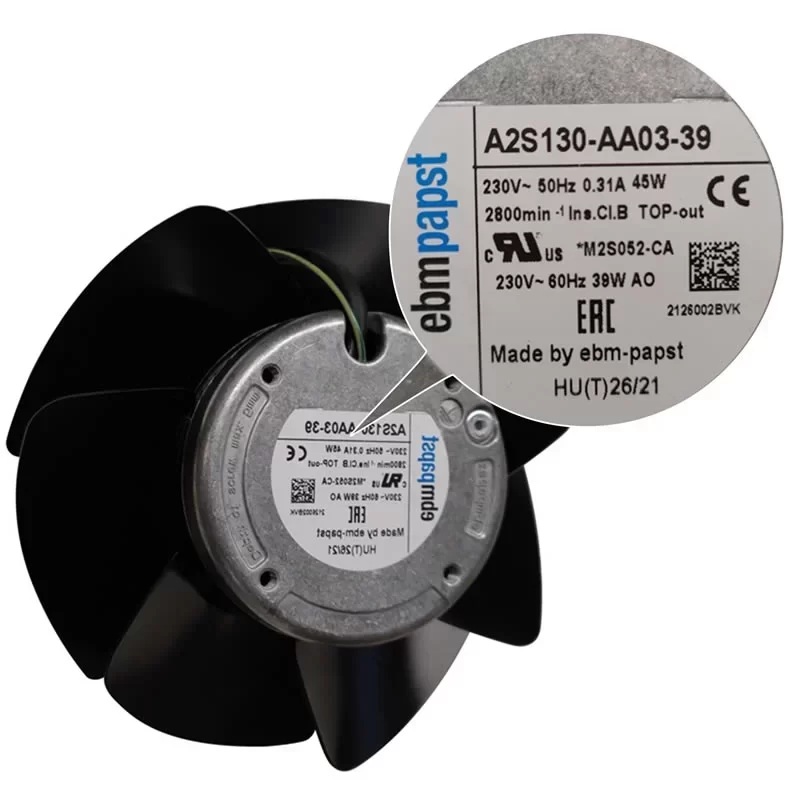

A2S130-AA03-39 Fan Parameters
Model Number: A2S130-AA03-39
Motor Model: M2S052-CA
Manufacturer: ebmpapst
Type: AC Axial Fan
Impeller Size: 130 mm
Dimensions: 138.3 x 138.3 x 57 mm
Weight: 1.1 kg
Bearing Type: Ball bearing
Nominal Voltage: 230 / 230 VAC
Phase: 1~
Frequency: 50 / 60 Hz
Method of Obtaining Data: fa (Free air)
Current Draw: 0.31 / 0.25 A
Power Consumption: 45 / 39 W
Rated Speed: 2800 / 3250 RPM
Max. Air Flow: 191.29 / 226.60 CFM (325.0 / 385.0 m³/h / 5.42 / 6.42 m³/min)
Max. Static Pressure: 8.16 / 12.24 mmH₂O (80.0 / 120.0 Pa / 0.32 / 0.48 inAq)
Starting Current: 0.45 / 0.30 A
Number of Blades: 7
Impeller Material: Sheet steel, painted black
Housing Material: Die-cast aluminum, painted black
Rotor Surface: Painted black
Direction of Rotation: Counter-clockwise (viewed toward rotor)
Direction of Airflow: “V” (Exhaust over struts)
Touch Current: < 0.75 mA
Motor Protection: Impedance protected
Insulation Class: "B"
Degree of Protection: IP20
Moisture (F) / Environmental (H) class: H0 – dry environment
Installation Position: Any
Condensate Discharge Holes: None
Mode: S1
Protection Class: I
Max. Ambient Temperature: 50 / 70 °C
Min. Ambient Temperature: -25 °C
Max. Storage Temperature: +80 °C
Min. Storage Temperature: -40 °C
Standard Compliance: EN 60335-1; CE
Approval: CCC; EAC; VDE
Application
The ebmpapst A2S130-AA03-39 fan is the primary cooling component for server racks, power supplies, and telecommunications equipment requiring high-speed 230V axial airflow.
