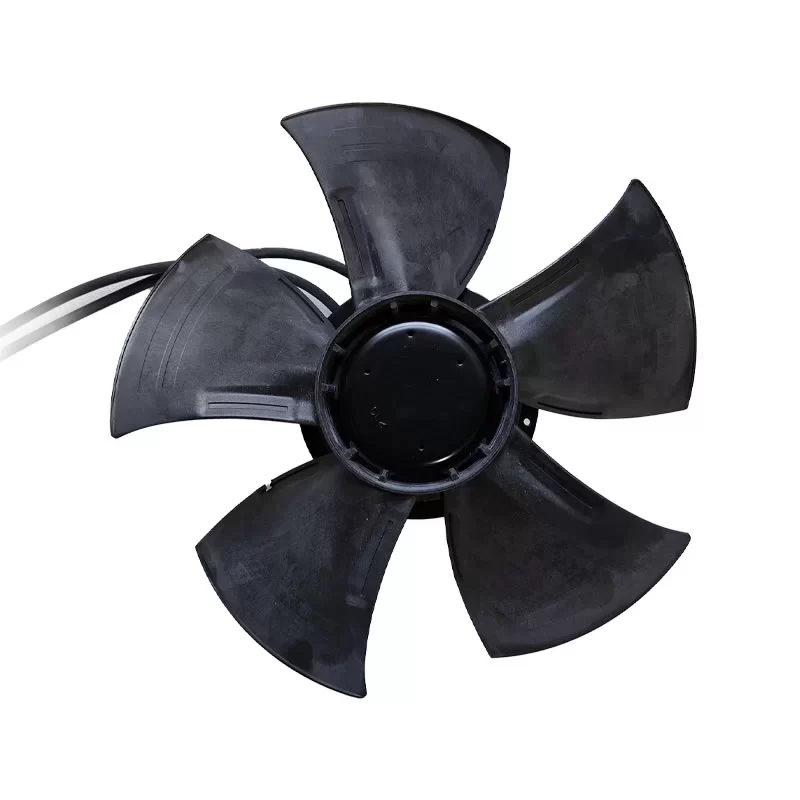

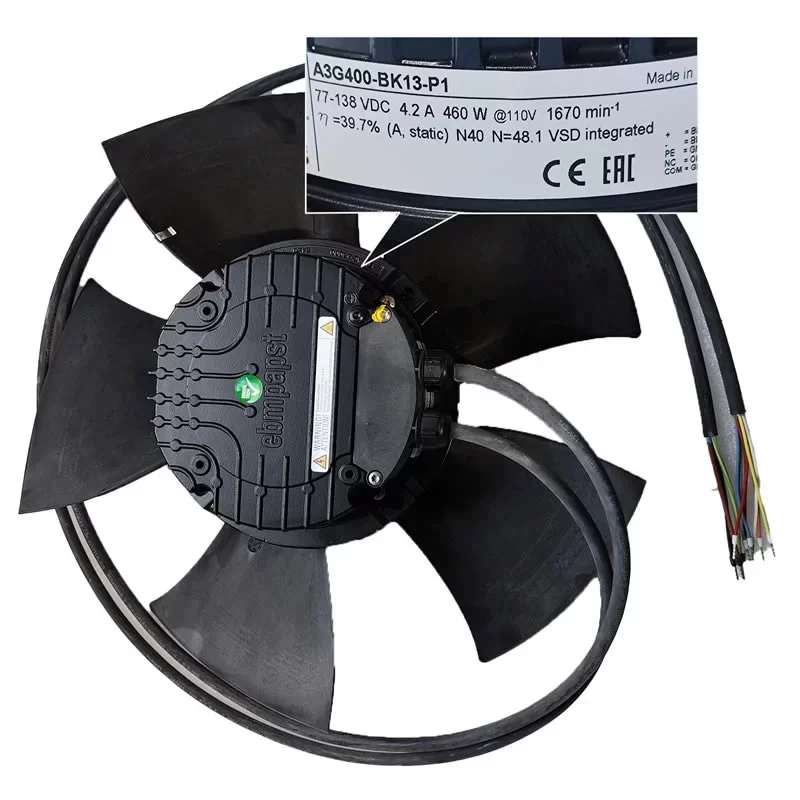

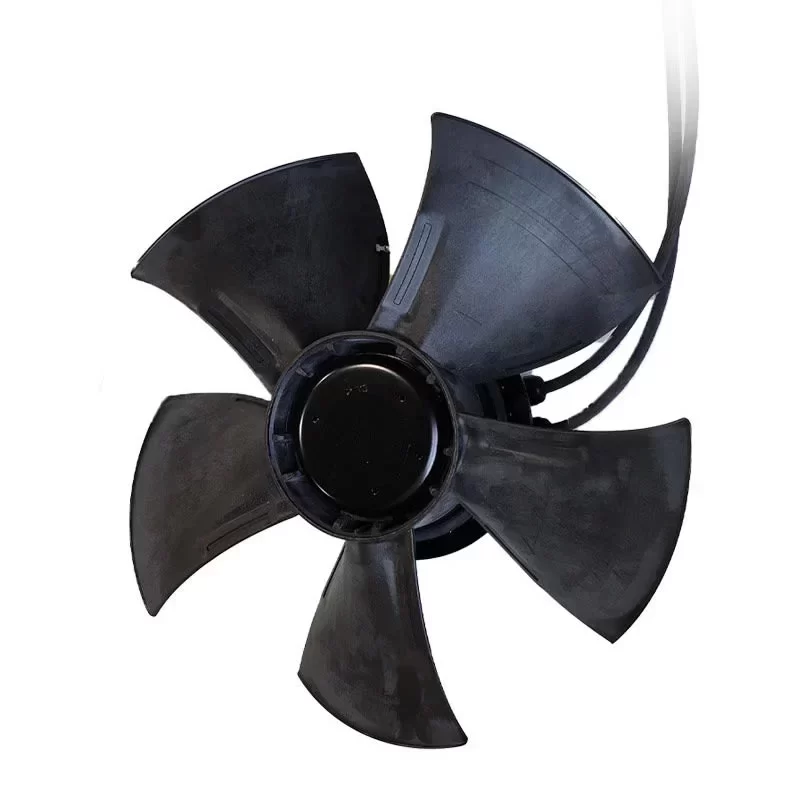

A3G400-BK13-P1 ebmpapst 110VDC 400mm EC Axial Fan

Description

The ebmpapst A3G400-BK13-P1 is a high-performance 110V DC EC Axial Fan featuring a 400 mm impeller diameter and powered by the advanced M3G084-DF motor. This unit is specifically engineered for demanding environments, operating on a nominal 110 VDC with a wide range of 77-138 VDC. It delivers a rated speed of 1670 RPM at maximum load, consuming 460 W with a current draw of 4.2 A. The fan features 5 blades made of PA plastic (UL94 V0) and a black-painted die-cast aluminum electronics housing. With an IP55 protection rating, H3 environmental protection class, and Class F insulation, the A3G400-BK13-P1 is optimized for S1 continuous duty in railway and heavy-duty industrial applications. It is fully equipped with modern control features including RS-485 MODBUS-RTU, 0-10V/PWM speed control, and comprehensive thermal and electrical protections.

A3G400-BK13-P1 Fan Parameters
Manufacturer: ebmpapst
Model Number: A3G400-BK13-P1
Motor Model: M3G084-DF (Size 84)
Type: EC Axial Fan (DC)
Nominal Voltage: 110 VDC
Nominal Voltage Range: 77-138 VDC
Dimensions: 392 x 139.3 mm
Impeller Size: 400 mm
Weight: 4.32 kg

[Electrical Data]
Speed: 1670 RPM
Power Consumption: 460 W
Current Draw: 4.2 A
Method of Obtaining Data: ml (Max. load)
Control Input: 0-10 VDC / PWM
Output: 10 VDC, max. 10 mA
Interface: RS-485 MODBUS-RTU
Insulation Class: F
Motor Bearing: Ball bearing (Sealed)

[Performance & Protection]
Max. Back Pressure: 170 Pa
Degree of Protection: IP55
Moisture (F) / Environmental (H) Protection Class: H3
Protection Class: I (with protective earth)
Touch Current: <= 3.5 mA (IEC 60990)

[Technical Features]
– Soft start
– Operation and alarm display / Alarm relay
– Motor current limitation
– Overvoltage and line undervoltage detection
– Thermal overload protection for electronics/motor
– Reverse polarity protection
– EEPROM write cycles: 100,000 maximum
– Control interface with SELV potential
– RS-485 MODBUS-RTU

[Materials & Construction]
Impeller Material: PA plastic UL94 V0
Electronics Housing: Die-cast aluminum, painted black
Rotor Surface: Painted black
Number of Blades: 5
Airflow Direction: V
Direction of Rotation: Counterclockwise, viewed toward rotor
Installation Position: Shaft horizontal or rotor on bottom (Rotor on top on request)
Condensation Drainage Holes: On rotor side
Mode: S1
Cable: Lateral exit

[Reliability & Standards]
Min. Ambient Temperature: -40 °C
Max. Ambient Temperature: 60 °C
Min./Max. Storage Temp: -40 °C to +80 °C
Motor Protection: Thermal overload protector (TOP) internally connected
Conformity: EN 15085-1; EN 45545-2 (HL3); EN 50155; EN 61373 (Cat. 1B)
Approval: EAC

Application
The ebmpapst A3G400-BK13-P1 is a specialized EC axial fan designed for mission-critical railway and transportation infrastructure, meeting stringent fire protection (EN 45545-2) and vibration (EN 61373) standards. Its 110V DC operation and RS-485 MODBUS-RTU interface allow for seamless integration into vehicle control systems for cooling traction inverters, brake resistors, and HVAC units. The PA plastic UL94 V0 blades and IP55/H3 rating provide exceptional resistance to moisture and fire hazards. With features like soft start and thermal overload protection, it is ideal for high-static pressure environments requiring precise speed regulation and high reliability in sub-zero or high-temperature ambient conditions.
