A4D630-AD01-01 ebmpapst 400V 630mm 2630W AC Axial Fan

Description

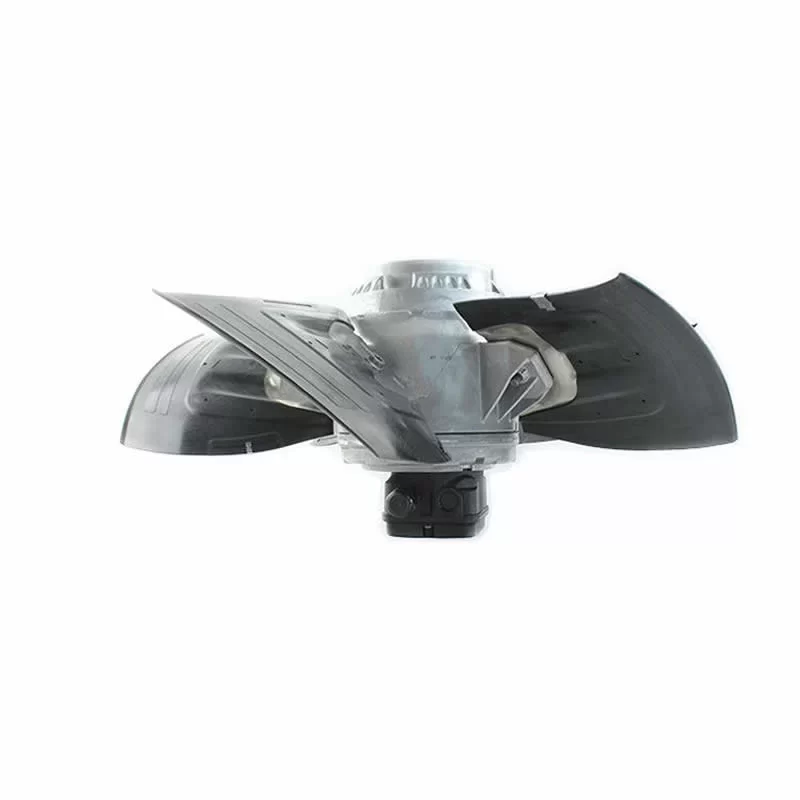

The ebmpapst A4D630-AD01-01 is a high-performance 3~ AC Axial Fan featuring a 630 mm diameter and a 5-blade HyBlade® design, powered by a high-torque M4D138-LA external rotor motor. Designed for 400 VAC (50 Hz) operation, this unit supports both Delta (Δ) and Star (Y) connections, offering dual-speed flexibility with a maximum speed of 1320 RPM and a powerful 2630 W power input. The fan is built for extreme durability, utilizing aluminum sheet inserts sprayed with PP plastic for its blades and a black ABS plastic terminal box. Engineered for S1 continuous duty with Class F insulation and IP54 protection, it operates reliably in ambient temperatures from -40 °C to 60 °C. Equipped with a Thermal Overload Protector (TOP) and featuring condensate discharge holes on both rotor and stator sides, the A4D630-AD01-01 is a mission-critical thermal management solution for heavy-duty industrial condensers, large heat exchangers, and high-capacity cooling systems.

A4D630-AD01-01 Fan Parameters
Manufacturer: ebmpapst
Model Number: A4D630-AD01-01
Motor Model: M4D138-LA
Type: AC Axial Fan
Phase: 3~
Nominal Voltage: 400 VAC
Frequency: 50 Hz
Size: 630 mm
Number of Blades: 5
Mass: 23.5 kg

[Electrical Data]
Connection: Delta (Δ) / Star (Y)
Speed (Δ / Y): 1320 / 1050 RPM
Power Input (Δ / Y): 2630 / 1750 W
Current Draw (Δ / Y): 4.78 / 2.95 A
Starting Current (Δ / Y): 19 / 6.5 A

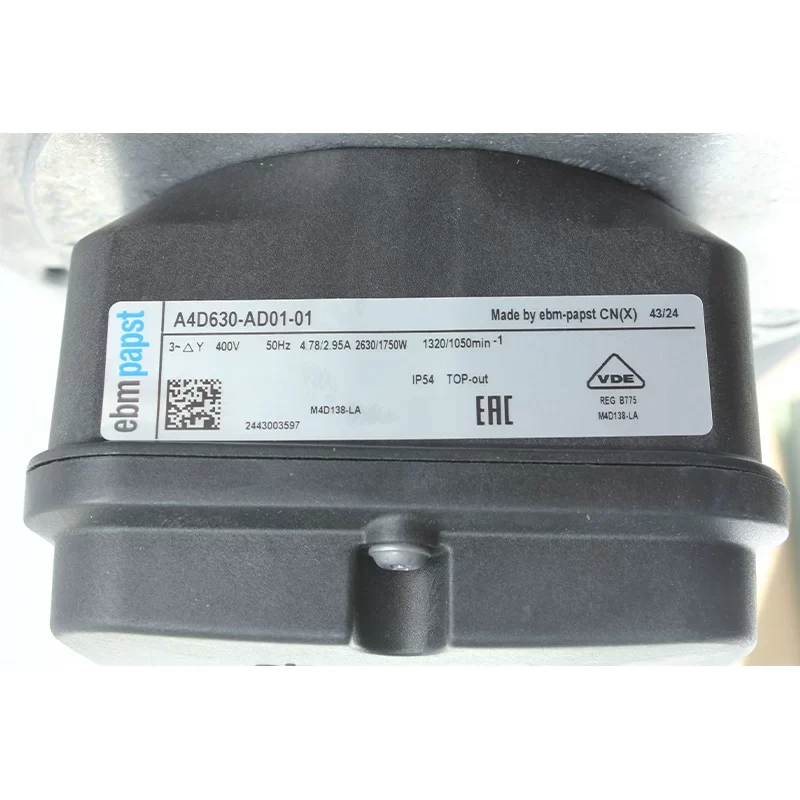

Termination: Terminal box (ABS plastic, black)
Cable Exit: Axial
Motor Bearing: Ball bearing
Insulation Class: F
Touch Current: <= 3.5 mA

[Performance & Acoustics]
Max. Back Pressure (Δ / Y): 220 / 140 Pa (0.88 / 0.56 inAq)
Airflow Direction: “V” (Exhaust over struts)
Direction of Rotation: Clockwise (seen on rotor)
Blade Angle: 0°

[Materials & Construction]
Rotor Surface: Cast in aluminium
Blade Material: Aluminium sheet insert, sprayed with PP plastic
Mounting Position: Any
Condensate Discharge: On rotor and stator sides
Operation Mode: S1

[Reliability & Protection]
Type of Protection: IP54
Humidity Class: F3-1
Min. Ambient Temp: -40 °C
Max. Ambient Temp: 60 °C
Storage Temp Range: -40 °C to +80 °C
Motor Protection: Thermal overload protector (TOP) brought out
Protection Class: I
Approval: EAC, VDE, CE
Standards: EN 60034; EN 61800-5-1

[Application]
The ebmpapst A4D630-AD01-01 is engineered for heavy-duty industrial cooling where massive air volume and high static pressure (up to 220 Pa) are required. Its 630 mm HyBlade® design is optimized for large-scale refrigeration condensers, air-cooled heat exchangers, and cooling towers. The dual Δ/Y connection capability allows operators to toggle between high-performance heat extraction and more energy-efficient or quieter operation, while the robust aluminum-plastic composite blades and dual-side condensate drainage ensure maximum reliability in harsh outdoor or high-humidity industrial environments.
