Description

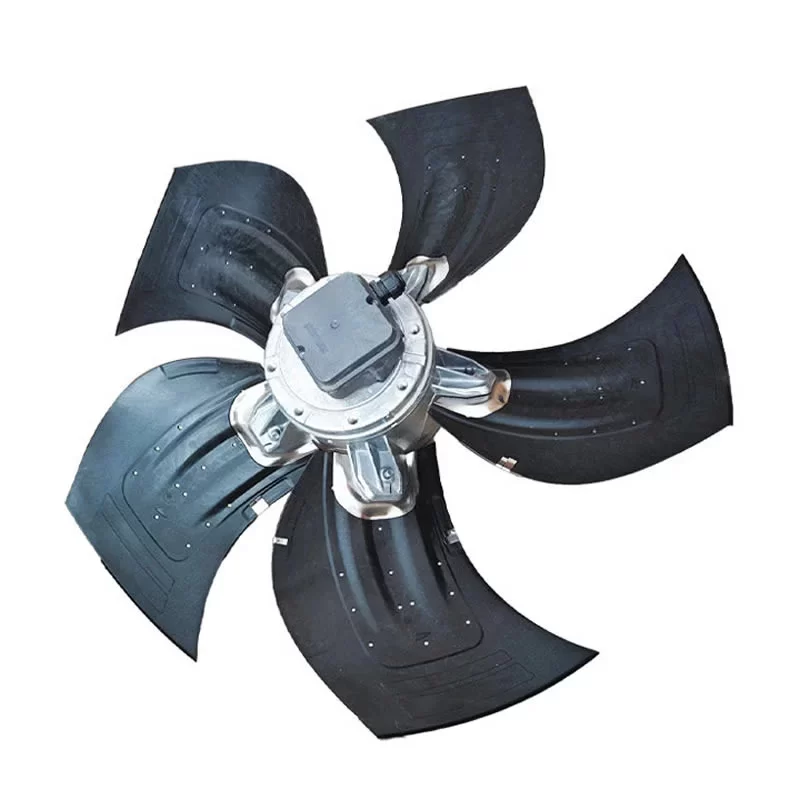

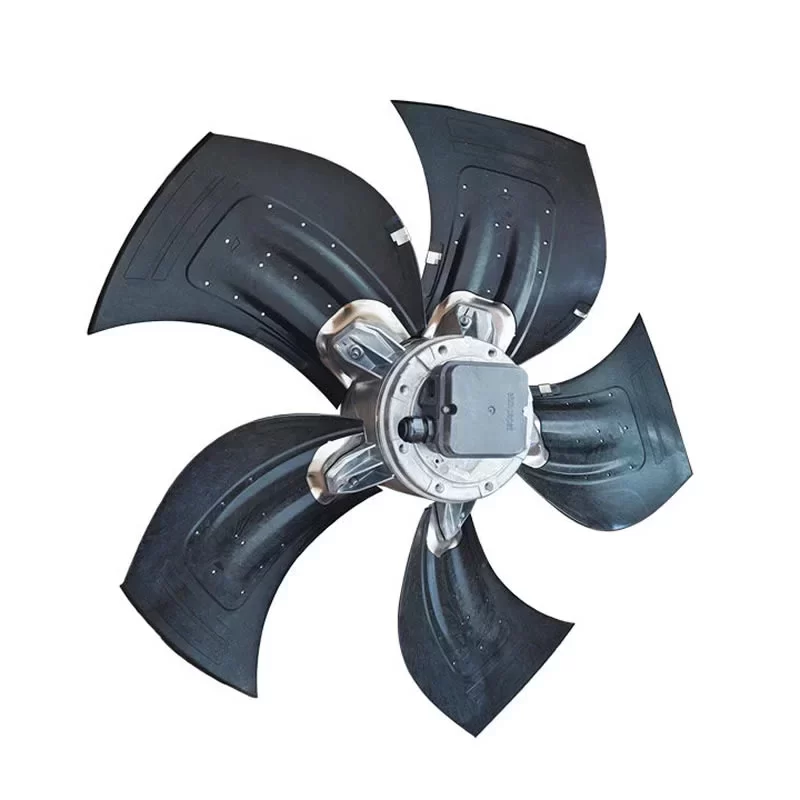

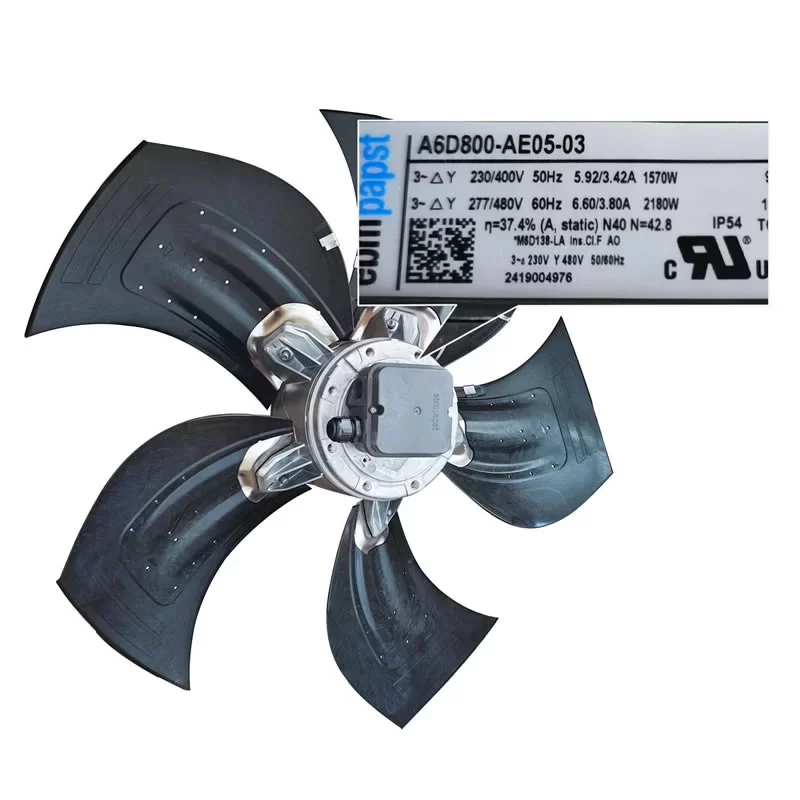

The ebmpapst A6D800-AE05-03 is a high-performance 230/277/400/480 VAC AC Axial Fan with an impeller size of 800 mm, specifically engineered for demanding thermal management in industrial frequency converters and electrical control cabinets. Driven by a robust three-phase M6D138-LA external rotor motor with a maximum power input of 2180 W at 480 VAC/60 Hz, this precision unit operates at a maximum speed of 1080 RPM, delivering a massive airflow for efficient heat extraction. Constructed with a 5-blade HyBlade® technology impeller system featuring an aluminum sheet insert sprayed with PP plastic and a -5° blade angle, high-precision ball bearings, and a PC/ABS plastic terminal box, this 24.2 kg unit provides a dependable and energy-efficient air-moving solution with a static efficiency of 37.4% and IP54 protection, ensuring maximum cooling performance and long-term mechanical stability with an axial cable exit and thermal overload protection brought out for high-power inverters, variable frequency drives (VFD), and integrated electrical switchgear systems at the end.
A6D800-AE05-03 Fan Parameters
Model Number: A6D800-AE05-03
Manufacturer: ebmpapst
Motor Model: M6D138-LA
Series: A6D 800 Series (HyBlade®)
Type: AC Axial Fan
Impeller Size: 800 mm
Weight: 24.2 kg
Bearing Type: Ball bearing
Nominal Voltage: 230 / 277 / 400 / 480 VAC (3-phase)
Wiring: Δ (230/277V) / Y (400/480V) connection
Frequency: 50 / 60 Hz
Power Input: 1570 W (400V/50Hz) / 1990 W (400V/60Hz) / 2180 W (480V/60Hz)
Current Draw: 3.42 A (400V/50Hz) / 3.78 A (400V/60Hz) / 3.8 A (480V/60Hz)
Starting Current: 13.0 A (400V/50Hz) / 11.0 A (400V/60Hz) / 14.0 A (480V/60Hz)
Speed: 905 RPM (50Hz) / 1030 RPM (60Hz) / 1080 RPM (480V/60Hz)
Max. Back Pressure: 170 Pa (50Hz) / 135 Pa (60Hz/400V) / 150 Pa (60Hz/480V)
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Actual Air Flow: 14570.0 m³/h
Pressure Increase: 128 Pa
Overall Efficiency (ηes): 37.4%
Efficiency Grade: N 42.8
Specific Ratio: 1.00
Measurement Category: A
Efficiency Category: Static
Variable Speed Drive: No
Motor Protection: Thermal overload protector (TOP) brought out
Insulation Class: Class F
Humidity Class: F3-1
Electrical Hookup: Terminal box (PC / ABS plastic)
Cable Exit: Axial
Number of Blades: 5
Blade Angle: -5°
Direction of Rotation: Clockwise, viewed toward rotor
Airflow Direction: “V” (Exhaust over struts)
Impeller Material: Aluminium sheet insert, sprayed with PP plastic
Rotor Surface: Cast in aluminium
Condensate Discharge Holes: On rotor and stator sides
Operation Mode: S1
Touch Current (IEC 60990): <= 3.5 mA
Operating Temperature: -40 – +65 °C (50Hz) / -40 – +60 °C (60Hz)
Storage Temperature: -40 – +80 °C
Degree of Protection: IP54
Standard Compliance: EN 61800-5-1; EN 60034; CE
Approval Agency: UL 1004-1; CSA C22.2 Nr.100
Application
The ebmpapst A6D800-AE05-03 AC fan is primarily utilized in industrial frequency converters, power inverters, and electrical control cabinet heat dissipation systems.
