A6E500-AJ05-04 ebmpapst 230V 500mm 220W AC Axial Fan

Description

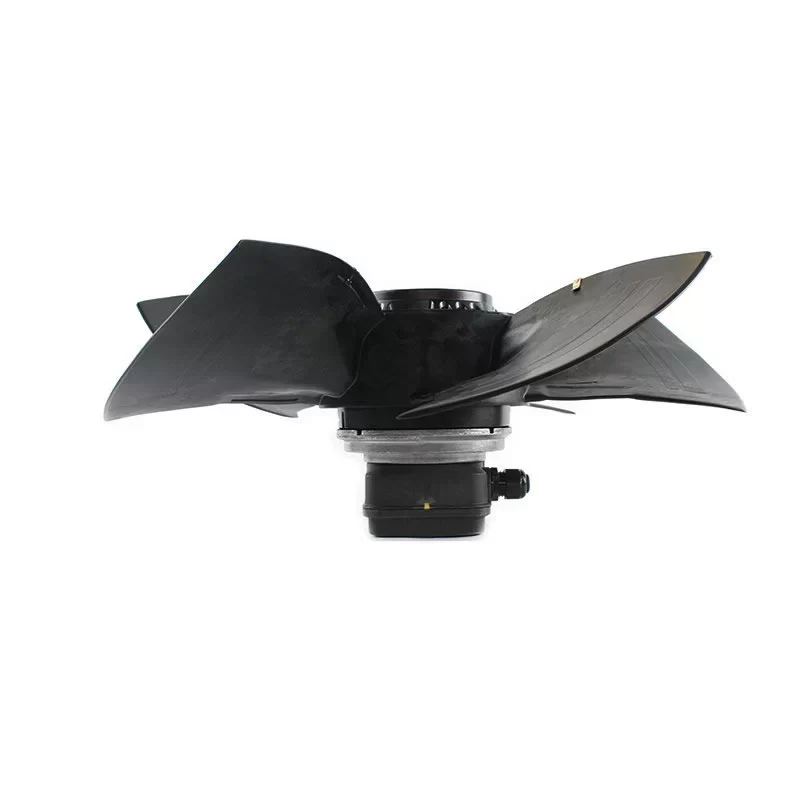

The ebmpapst A6E500-AJ05-04 is a robust 1~ AC Axial Fan with a 500 mm diameter, powered by the M6E110-EF external rotor motor. Designed for dual-frequency operation, it runs at 230 VAC (50/60 Hz), delivering a speed of 865 RPM at 50 Hz with a power input of 220 W. The fan features a specialized “A” airflow direction (intake over struts) and a 5-blade design made of press-fitted sheet steel sprayed with PP plastic for enhanced environmental resistance. Engineered for S1 continuous duty with Class F insulation and IP54 protection, this unit is built to withstand extreme temperatures from -40 °C up to 80 °C. Integrated with a thermal overload protector (TOP) and a terminal box housing the 5 µF capacitor, the A6E500-AJ05-04 is a mission-critical ventilation solution for large-scale condensers, heat exchangers, and industrial cooling systems.

A6E500-AJ05-04 Fan Parameters
Manufacturer: ebmpapst
Model Number: A6E500-AJ05-04
Motor Model: M6E110-EF
Type: AC Axial Fan
Phase: 1~
Nominal Voltage: 230 VAC
Frequency: 50 / 60 Hz
Impeller Size: 500 mm
Number of Blades: 5
Mass: 7.6 kg

[Electrical Data]
Speed (50/60 Hz): 865 / 810 RPM
Power Input (50/60 Hz): 220 / 290 W
Current Draw (50/60 Hz): 0.97 / 1.3 A
Starting Current (50/60 Hz): 1.7 / 1.51 A

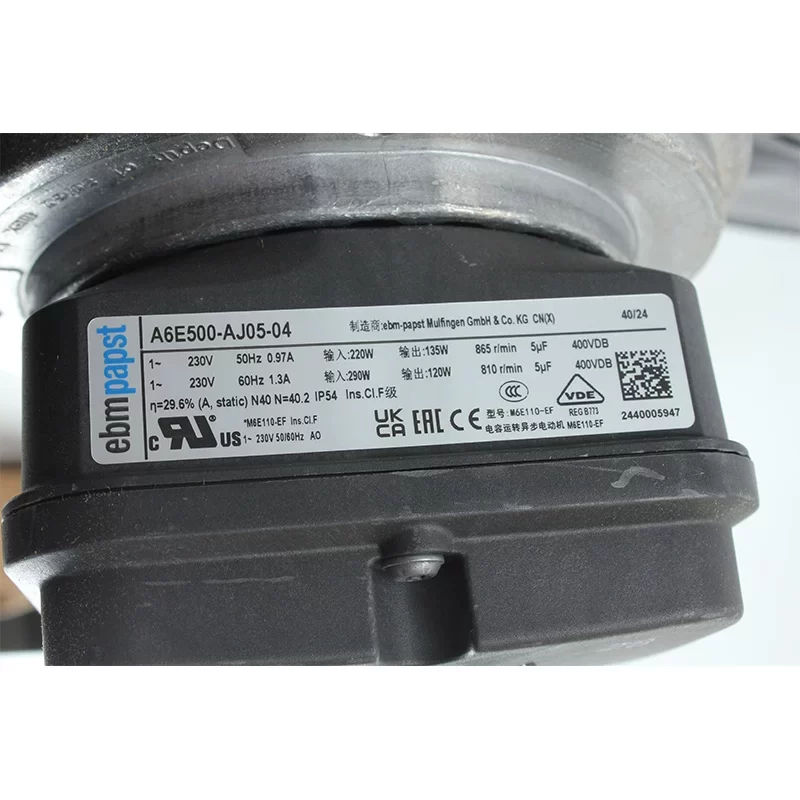

Motor Capacitor: 5 µF / 400 VDB (integrated via terminal box)
Termination: Terminal box (PC / ABS plastic)
Motor Bearing: Ball bearing
Insulation Class: F
Touch Current: <= 3.5 mA

[Performance & Acoustics]
Max. Back Pressure (50/60 Hz): 60 / 57 Pa
Airflow Direction: “A” (Intake over struts)
Direction of Rotation: Clockwise (seen on rotor)

[Materials & Construction]
Rotor Surface: Coated in black
Blade Material: Press-fitted sheet steel blank, sprayed with PP plastic
Mounting Position: Shaft horizontal or rotor on bottom (rotor on top on request)
Condensate Discharge Holes: Rotor-side
Operation Mode: S1

[Reliability & Protection]
Type of Protection: IP54
Humidity Class: F4-1
Min. Ambient Temp: -40 °C
Max. Ambient Temp (50/60 Hz): 80 / 70 °C
Storage Temp Range: -40 °C to +80 °C
Motor Protection: Thermal overload protector (TOP) brought out
Protection Class: I
Approval: EAC, VDE, UL 1004-1, CSA C22.2 Nr.100, CE

[Application]
The ebmpapst A6E500-AJ05-04 is specifically designed for high-volume air intake applications (Direction “A”) in large industrial heat exchangers and refrigeration condensers. Its bi-material blades—combining the structural strength of sheet steel with the
protective properties of PP plastic—make it highly resistant to corrosive environments and humidity (Class F4-1). The 500 mm diameter and 6-pole motor provide efficient, low-speed operation suitable for large-scale HVAC systems and industrial cooling towers where reliability under continuous S1 duty and wide temperature fluctuations (-40 °C to +80 °C) is required.
