Description

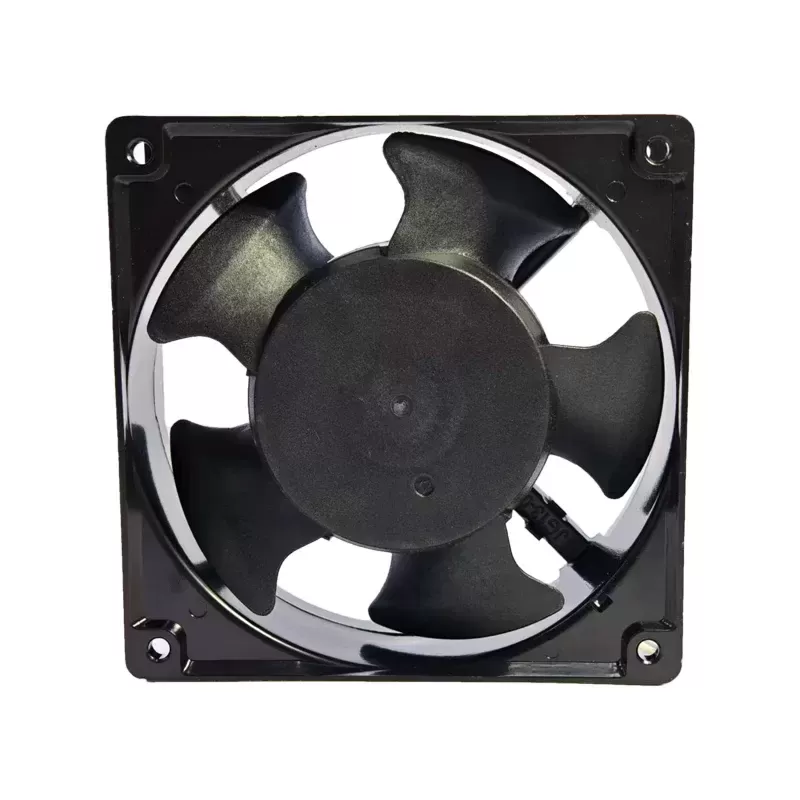

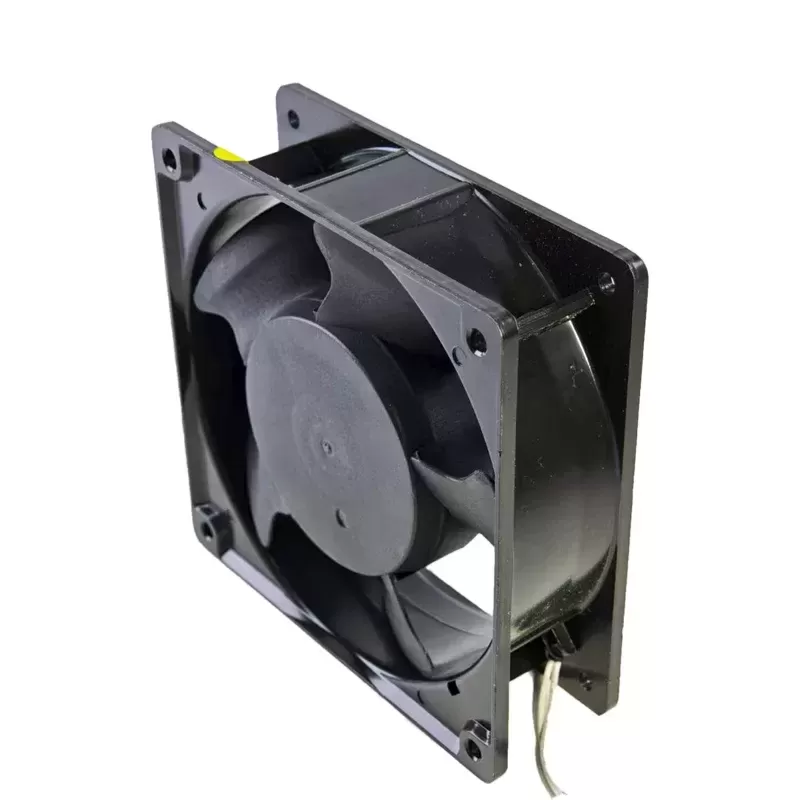

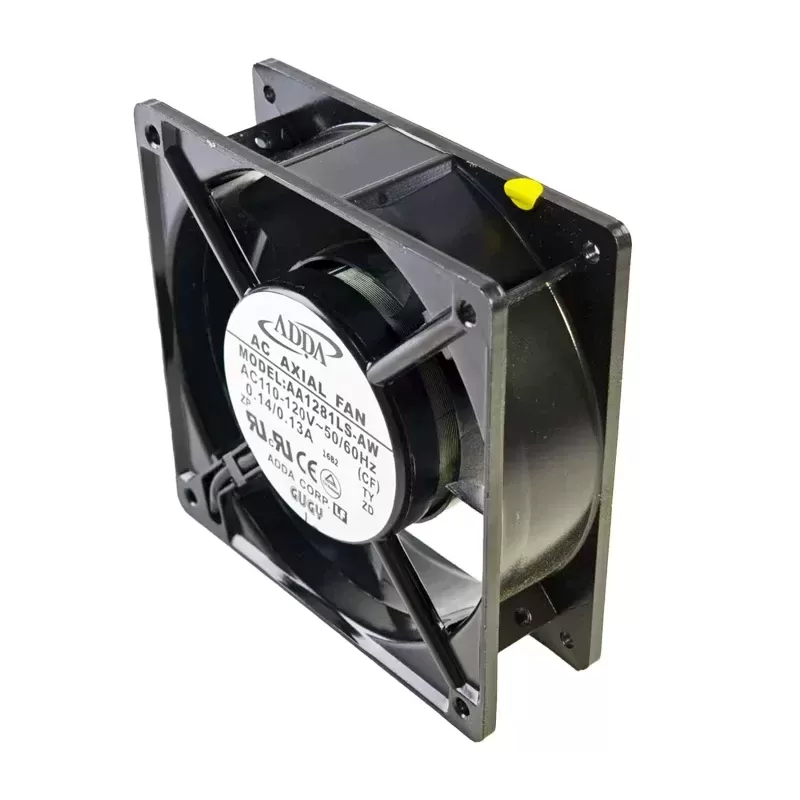

The ADDA AA1281LS-AW is an AC axial fan measuring 120x120x38mm. It operates on a voltage range of 110 to 120 VAC at 50/60 Hz, drawing 0.14 A at 50 Hz and 0.13 A at 60 Hz. This results in a power consumption of 16.8 W at 50 Hz and 15.6 W at 60 Hz. The fan achieves a speed of 2150 RPM, providing an airflow of 87 CFM (approximately 147.8 m³/h). The noise level is 34 dB(A), making it suitable for applications requiring moderate noise levels. It features a sleeve bearing for reliable operation and connects via terminals. The housing is made of die-cast aluminum, and the impeller is made of thermoplastic. This fan is commonly used in various industrial equipment, power supplies, and general ventilation systems.
AA1281LS-AW Fan Parameters
Model: AA1281LS-AW
Manufacturer: ADDA
Type: AC Axial Fan
Dimensions: 120x120x38 mm
Rated Voltage: 110-120 VAC
Frequency: 50/60 Hz
Rated Current: 0.14 A (at 50 Hz) / 0.13 A (at 60 Hz)
Power Consumption: 16.8 W (at 50 Hz) / 15.6 W (at 60 Hz)
Speed: 2150 RPM
Airflow: 87 CFM (147.8 m³/h)
Noise Level: 34 dB(A)
Bearing Type: Sleeve bearing
Termination: Terminals
Housing Material: Die-cast aluminum
Impeller Material: Thermoplastic (PBT)
Operating Temperature: -10 to 70°C
Expected Life L10 at 40°C: 30000 h
Application: Industrial equipment, power supplies, general ventilation.
Weight: 0.550 kg (550 g)
