AA1282HB-AT ADDA 220-240V AC Axial Fan

Description

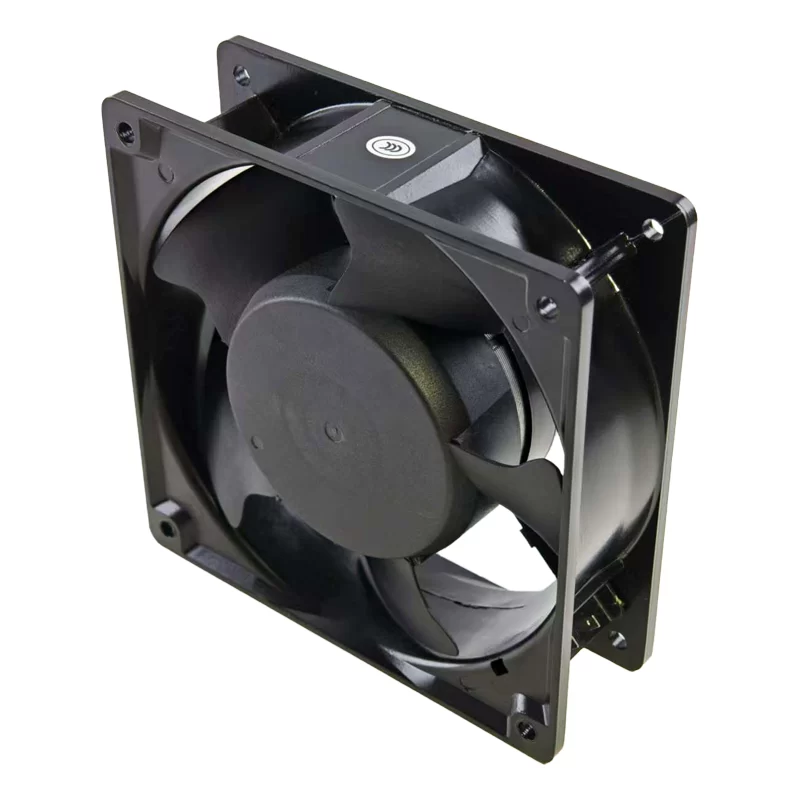

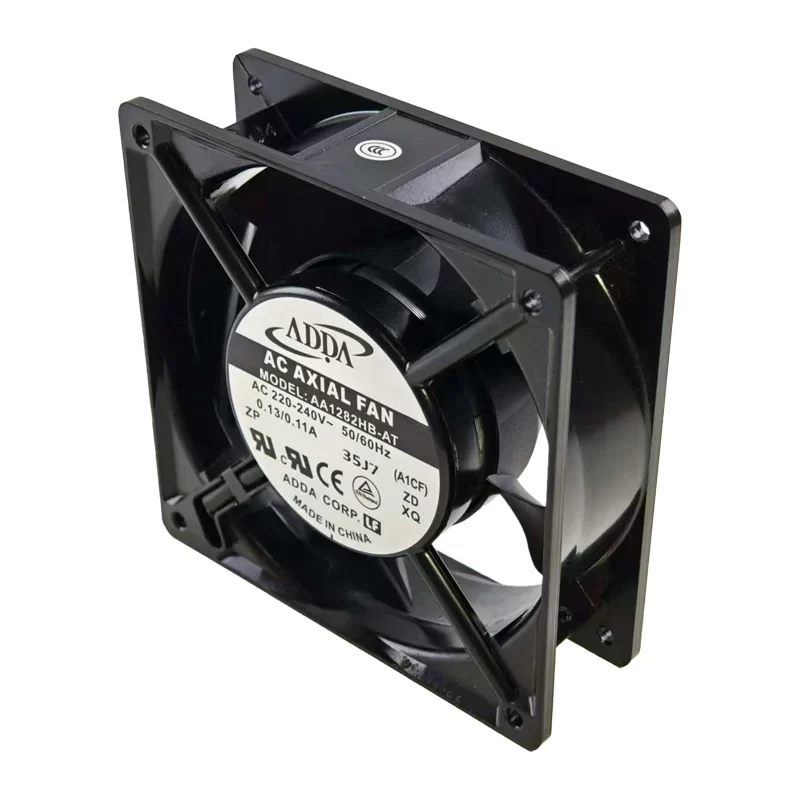

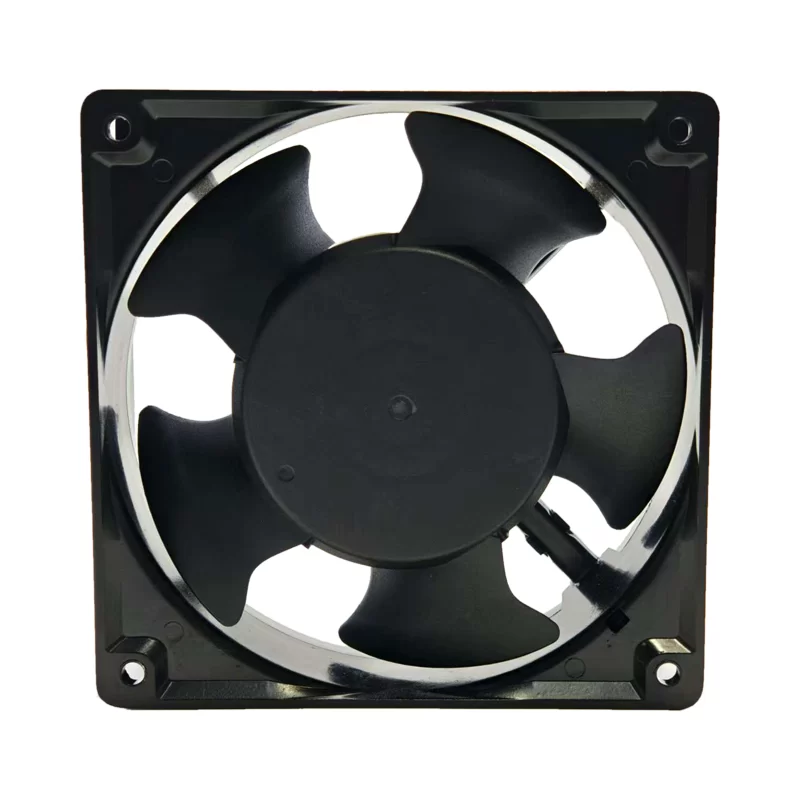

The ADDA AA1282HB-AT is a high-performance AC Axial Fan with dimensions of 120×120×38 mm. This fan operates on a wide 220−240 V power supply and is a high-speed model designed for reliable equipment cooling. At 50 Hz, it draws 0.13 A (approx. 31.2 W), achieving a Nominal Speed of 2,400 RPM and Airflow of 157.3 m
3/h. At 60 Hz, it draws 0.11 A (approx. 26.4 W), increasing performance to 2,500 RPM and 170.2 m3/h Airflow. Built with Ball Bearings and an aluminum alloy frame, it is commonly used for general ventilation and heat dissipation in industrial control panels, telecommunications racks, and power supply units.

AA1282HB-AT Fan Parameters
Model: AA1282HB-AT
Manufacturer: ADDA
Type: AC Axial Fan
Dimensions: 120×120×38 mm
Operating Voltage: 220−240 V
Frequency: 50 Hz/60 Hz
Rated Current (50 Hz / 60 Hz): 0.13 A/0.11 A
Power Consumption (50 Hz / 60 Hz): 31.2 W/26.4 W
Nominal Speed (50 Hz / 60 Hz): 2,400 RPM/2,500 RPM
Airflow (50 Hz): 157.3 m3/h (92.6 CFM)
Airflow (60 Hz): 170.2 m3/h (100.2 CFM)
Static Pressure (50 Hz): 47.8 Pa (0.191 inH2O)
Static Pressure (60 Hz): 45.5 Pa (0.182 inH2O)
Bearing Type: Ball
Frame Material: Aluminum Alloy
Impeller Material: PBT (UL94V-0)
Operating Temperature: −10 °C to 70 °C
Termination: Terminals
Safety Approvals: UL, TÜV, CE

Application
The AA1282HB-AT is a versatile 120 mm AC fan primarily used for exhausting heat from enclosures in industrial and commercial environments. The dual-frequency operation and wide voltage range make the AA1282HB-AT suitable for global use in network cabinets, rack-mount servers, high-wattage power supplies, and general machinery cooling.
