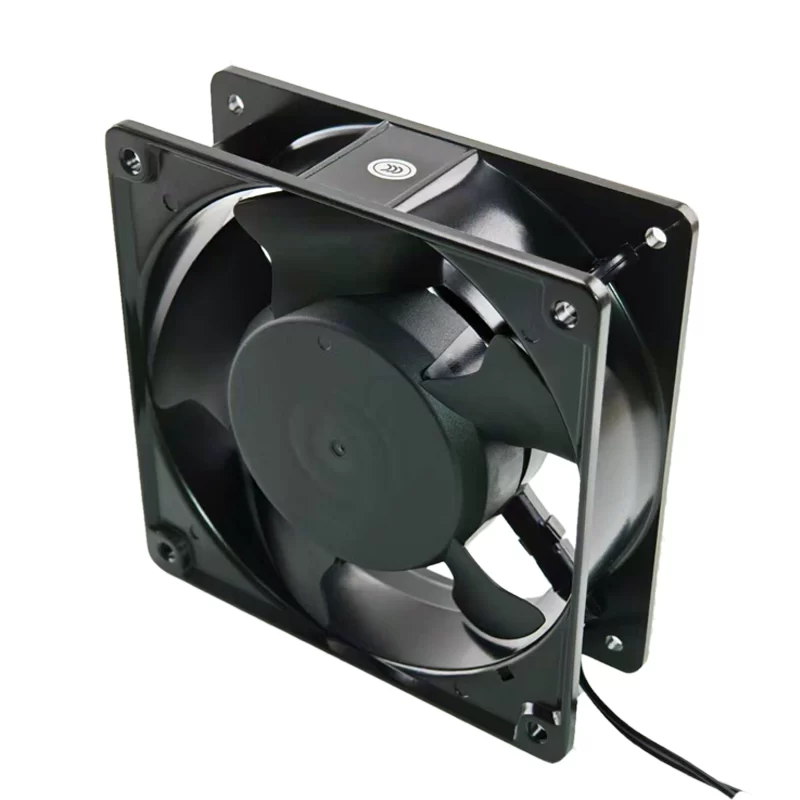

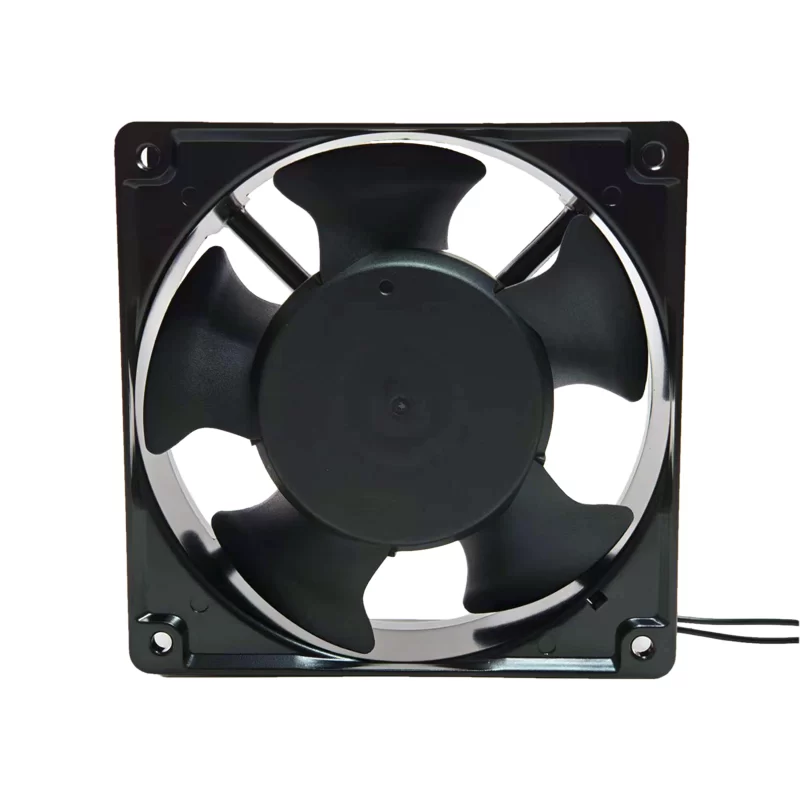

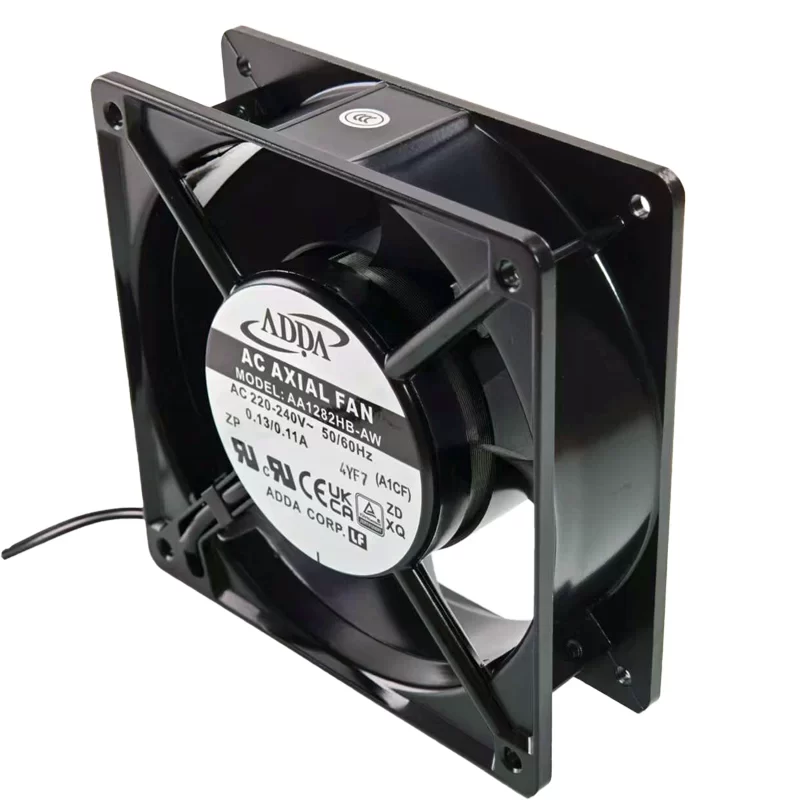

AA1282HB-AW ADDA 230V AC Axial Fan

Description

The ADDA AA1282HB-AW is a high-speed AC axial fan with dimensions of 120 x 120 x 38 mm. Designed for operation at 230V AC on either 50 Hz or 60 Hz systems, it offers two distinct performance points. At 50 Hz, it draws 0.12 A (16 W) and delivers 92.6 CFM of airflow at 2400 RPM with a noise level of 43.5 dB(A). At 60 Hz, performance increases, drawing 0.10 A (14 W) to provide 100.2 CFM of airflow at 2500 RPM with a noise level of 44.9 dB(A). This fan utilizes a durable ball bearing system, features an aluminum frame and PBT plastic impeller, and connects via a 2-wire lead. It is widely used in applications requiring robust, high-volume cooling.

AA1282HB-AW Fan Parameters
Manufacturer: ADDA
Model: AA1282HB-AW
Fan Type: AC Axial Fan
Dimensions: 120 x 120 x 38 mm
Rated Voltage: 230V AC
Frequency: 50/60 Hz
Current Rating (50 Hz): 0.12 A
Current Rating (60 Hz): 0.10 A
Power Consumption (50 Hz): 16 W
Power Consumption (60 Hz): 14 W
Airflow (50 Hz): 92.6 CFM
Airflow (60 Hz): 100.2 CFM
Static Pressure (50 Hz): 0.19 inch-H₂O
Static Pressure (60 Hz): 0.18 inch-H₂O
Speed (50 Hz): 2400 RPM
Speed (60 Hz): 2500 RPM
Noise Level (50 Hz): 43.5 dB(A)
Noise Level (60 Hz): 44.9 dB(A)
Weight: 545 g
Bearing Type: Ball bearing
Termination: 2-Wire Leads
Frame Material: Aluminum
Impeller Material: Plastic (PBT)
Operating Temperature: -10 °C to 70 °C
Approval: UL, cUL, CE

Application
The AA1282HB-AW fan is suitable for inverters, UPS systems, network cabinets, industrial control panels, and general cabinet and case cooling where reliable, high-volume AC airflow is essential.
