Description

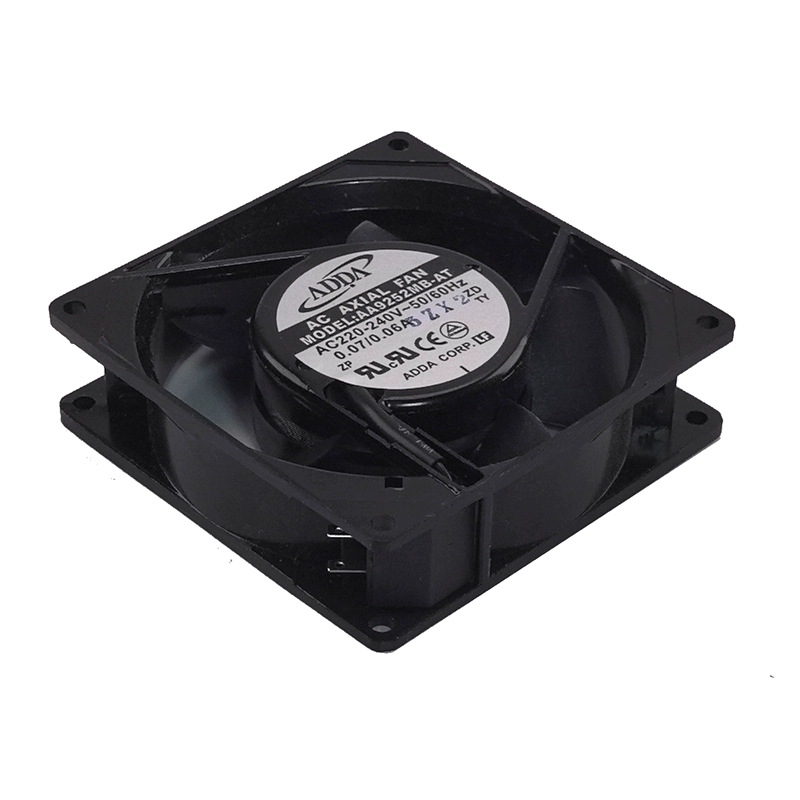

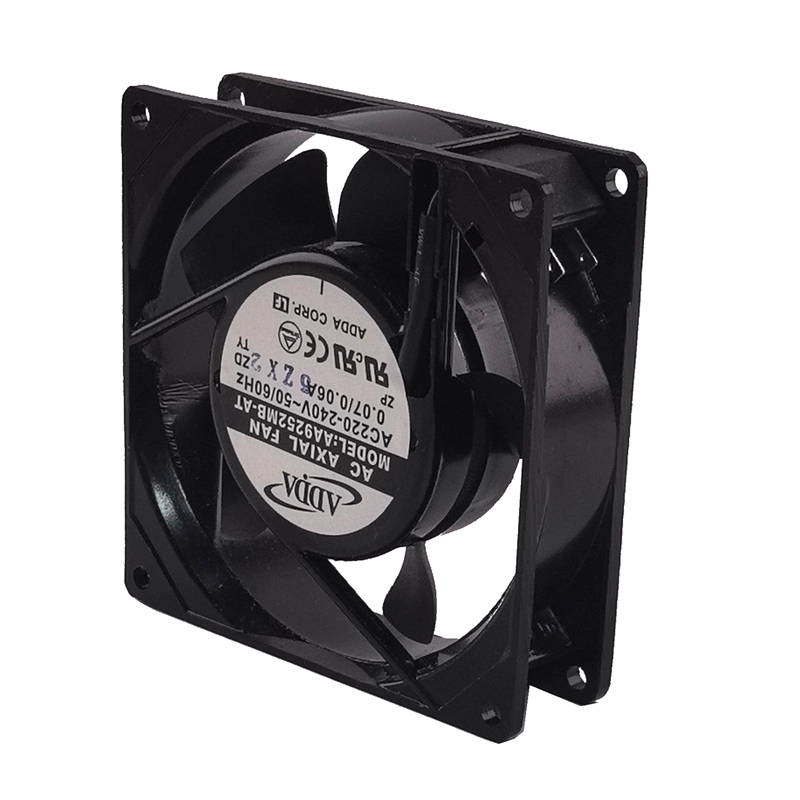

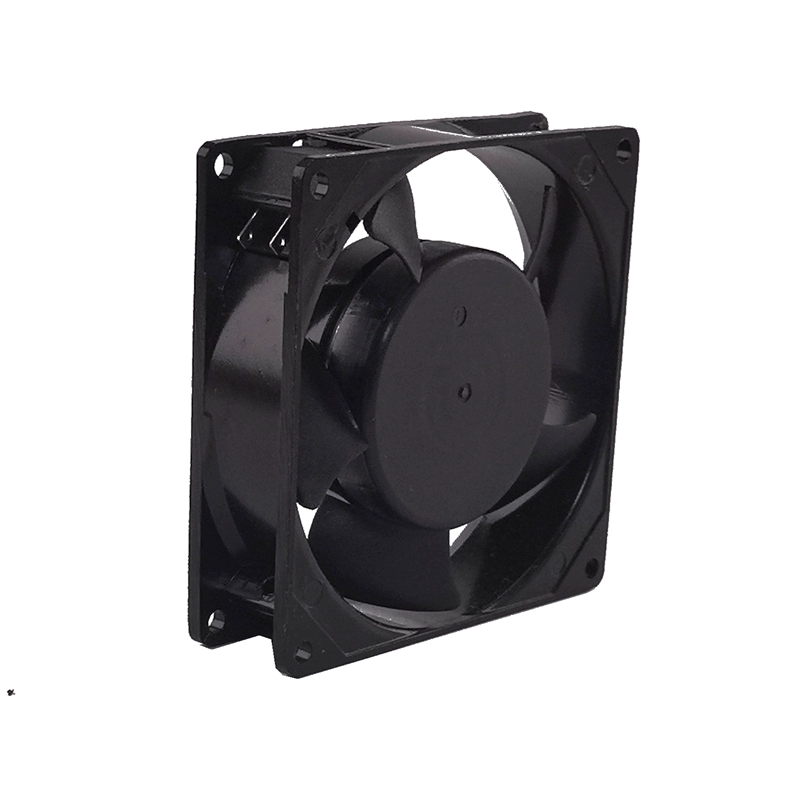

The ADDA AA9252MB-HB-AT is a reliable 220-240V AC axial fan, precisely measuring 92mm x 92mm x 25mm, manufactured by ADDA Corporation. This fan is engineered for general cooling tasks in electronic enclosures and equipment, utilizing durable ball bearings to ensure consistent performance and a long operational lifespan. Designed for standard AC power, its performance subtly shifts with frequency: at 50Hz, it draws 0.07A (consuming 16.1W), runs at 1900 RPM, and provides 27.5 CFM of airflow with a quiet 21.1 dBA noise level; at 60Hz, it draws 0.06A (consuming 14.9W), operates at 2000 RPM, delivers 28.0 CFM of airflow, and maintains a low 21.1 dBA noise level. Typically connected via wire leads, and constructed with an aluminum frame and plastic impeller, the ADDA AA9252MB-HB-AT is an ideal solution for cooling components in control cabinets, power supplies, small servers, and other electronic devices where dependable airflow and low acoustic output are desired.
AA9252MB-HB-AT new original genuine ADDA fan 9225 220V 9CM cm cooling fan
Model: AA9252MB-HB-AT
Manufacturer: ADDA Corporation
Type: AC Axial Fan
Dimensions: 92mm x 92mm x 25mm
Nominal Voltage: 220-240V AC
Frequency: 50/60 Hz
Current:
0.07A (at 50Hz)
0.06A (at 60Hz)
Power Consumption:
16.1W (at 50Hz)
14.9W (at 60Hz)
Speed:
1900 RPM (at 50Hz)
2000 RPM (at 60Hz)
Airflow:
27.5 CFM (at 50Hz)
28.0 CFM (at 60Hz)
Noise Level:
21.1 dBA (at 50Hz)
21.1 dBA (at 60Hz)
Bearing Type: Ball Bearing
Life Expectancy: 50,000 to 80,000 Hours
Frame Material: Aluminum
Blade Material: Plastic
Features: RoHS compliant, Impedance Protected.
