AB03504HX100000 ADDA 4V DC Blower

Description

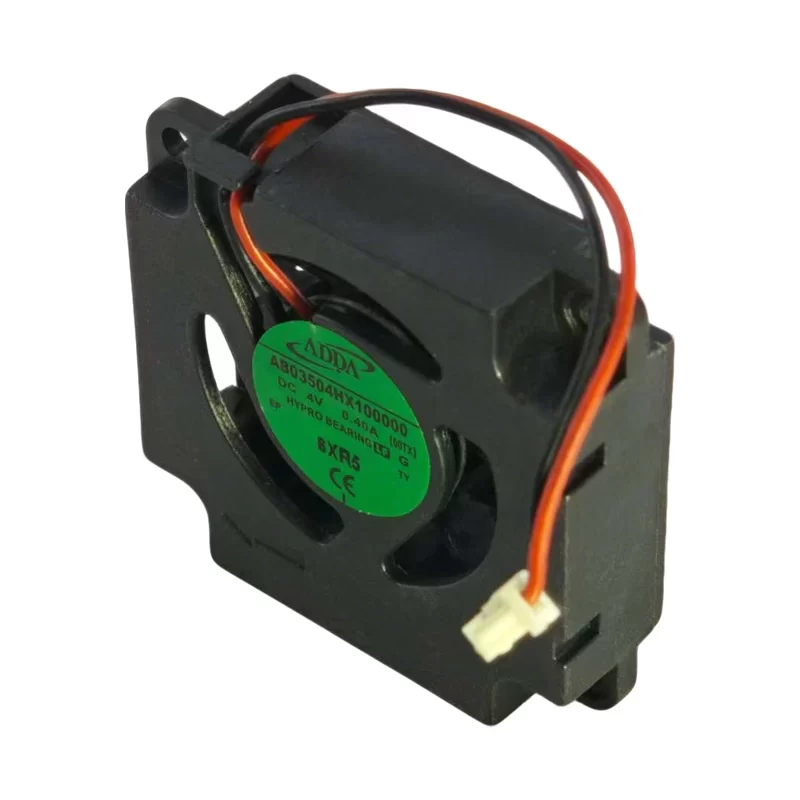

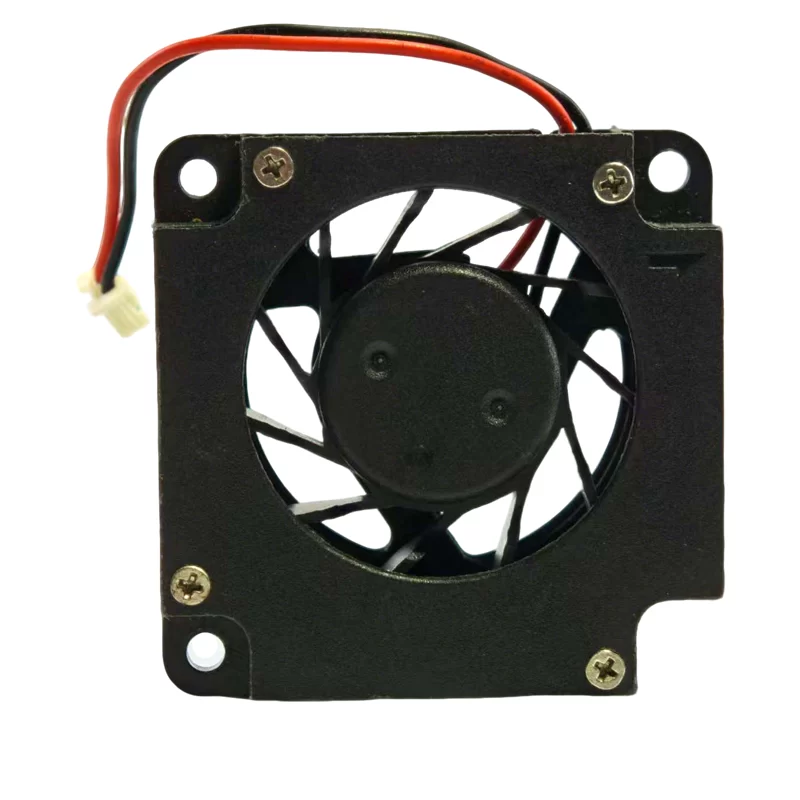

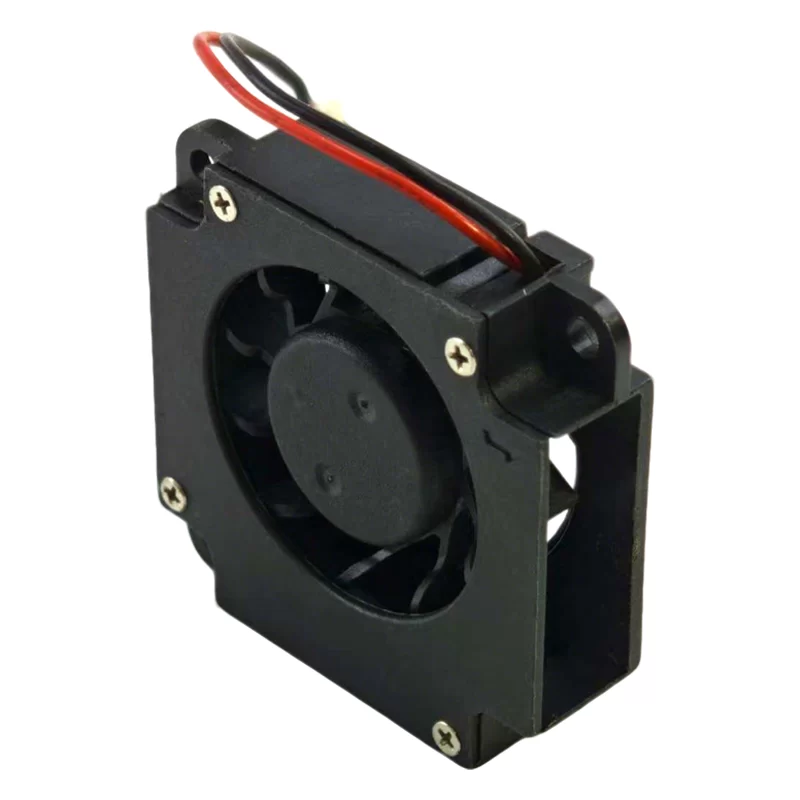

The ADDA AB03504HX100000 is a DC blower with dimensions of 35 x 35 x 10 mm. It operates on 4V DC, drawing 0.40 A of current and consuming 1.60 W of power. This blower runs at a speed of 8500 RPM, delivering an airflow of 1.44 CFM. It produces a noise level of 29 dBA. The fan utilizes a Hypro Bearing for reliability and is terminated with two-wire leads with a length of 60 mm. It is constructed from thermoplastic materials and operates within a temperature range of -10 °C to 70 °C.

AB03504HX100000 Fan Parameters
Manufacturer: ADDA
Model: AB03504HX100000
Fan Type: DC Blower
Dimensions: 35 x 35 x 10 mm
Rated Voltage: 4V DC
Current Rating: 0.40 A
Power Consumption: 1.60 W
Airflow: 1.44 CFM
Static Pressure: 0.18 inch H₂O / 3.940 mmAq
Speed: 8500 RPM
Noise Level: 29 dBA
Bearing Type: Hypro Bearing
Termination: 2-Wire Leads (60 mm)
Housing Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10 °C to 70 °C
Weight: 16 g

Application
The AB03504HX100000 is a projector turbine cooling fan suitable for compact electronics, medical instruments, and other portable devices that require a slim, high-performance cooling solution to dissipate heat from specific components.
