Description

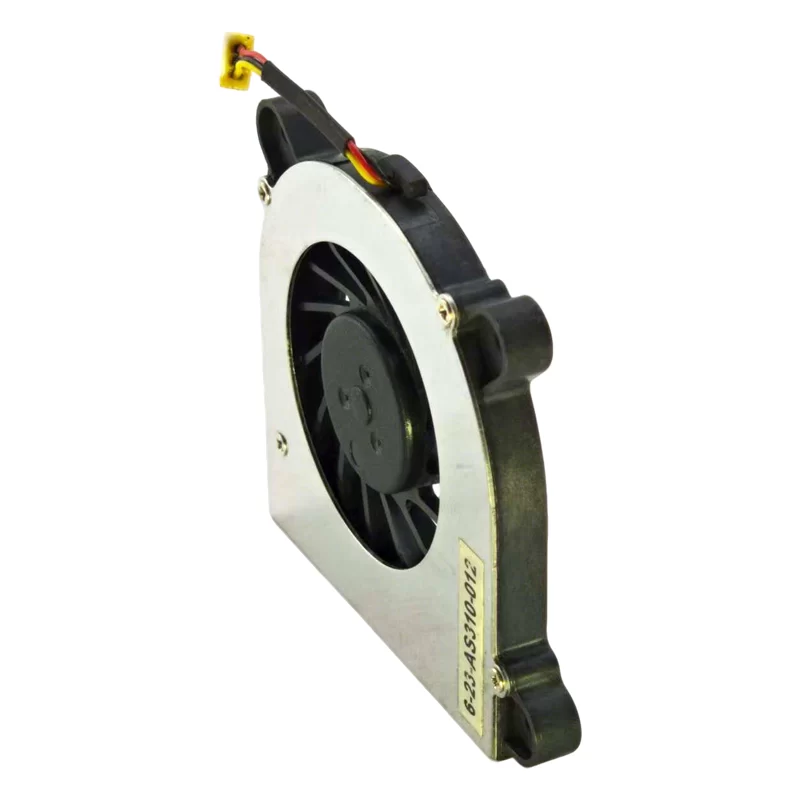

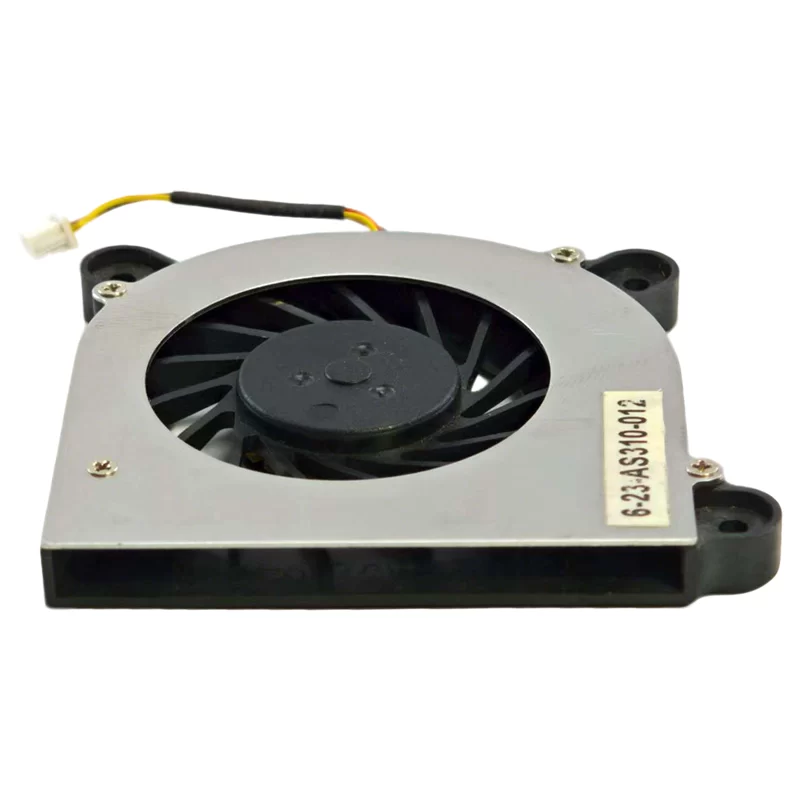

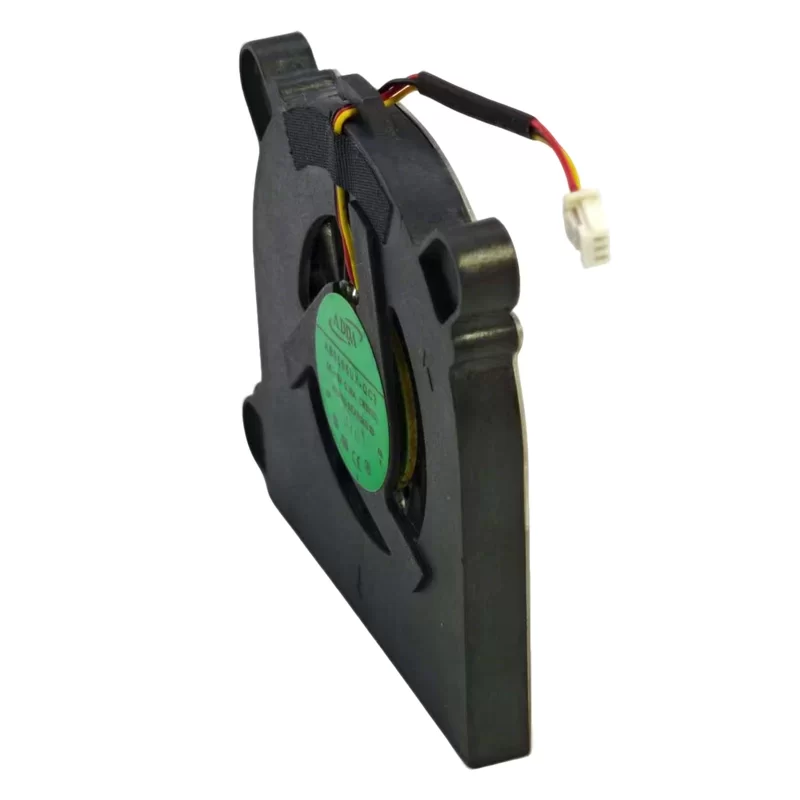

The ADDA AB0505UX-QC3 is a DC blower with ultra-slim dimensions of 50 x 50 x 7 mm. It operates on 5V DC, drawing a current of 0.35 A with a power consumption of 1.2 W. The fan runs at a speed of 5500 RPM, providing an airflow of 3.5 CFM. It produces a quiet noise level of 29 dBA. Utilizing Hypro Bearing technology for reliability, the fan is terminated with three-wire leads and is constructed from thermoplastic materials.
AB0505UX-QC3 Fan Parameters
Manufacturer: ADDA
Model: AB0505UX-QC3
Fan Type: DC Blower
Dimensions: 50 x 50 x 7 mm
Rated Voltage: 5V DC
Current Rating: 0.35 A
Power Consumption: 1.2 W
Airflow: 3.5 CFM
Speed: 5500 RPM
Noise Level: 29 dBA
Bearing Type: Hypro Bearing
Termination: 3-Wire Leads
Housing Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10 °C to 70 °C
Weight: 8 g
Application
The AB0505UX-QC3 fan is suitable for compact electronic devices, personal computers, and embedded systems that require quiet cooling in an extremely thin form factor.
