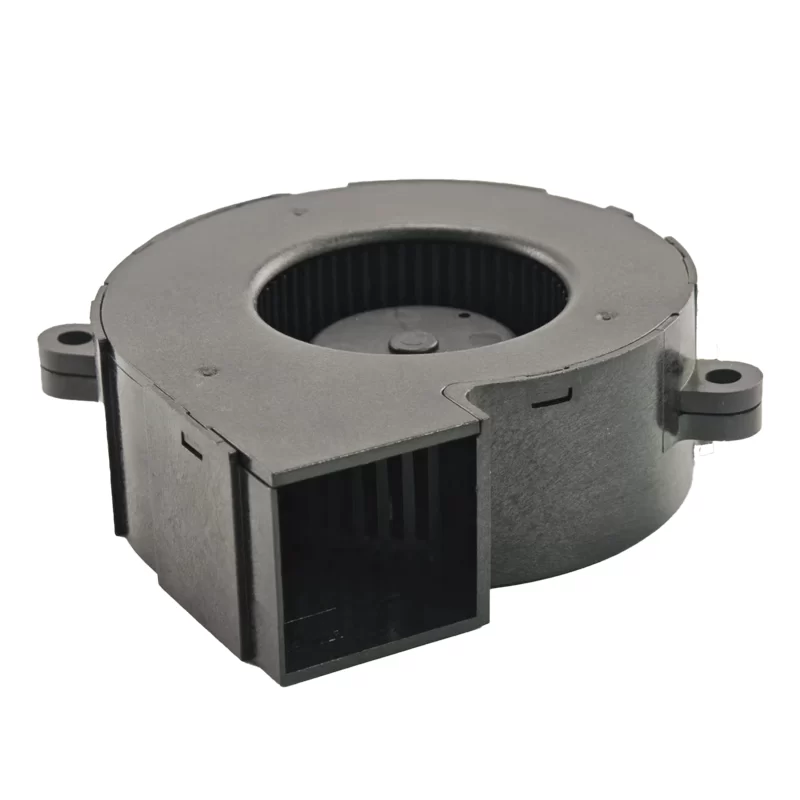

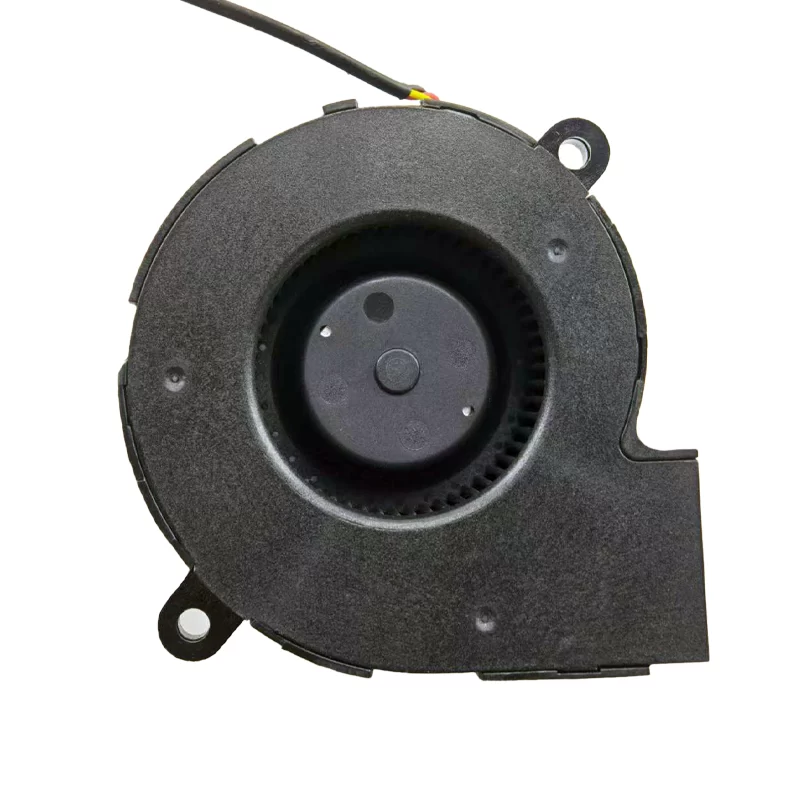

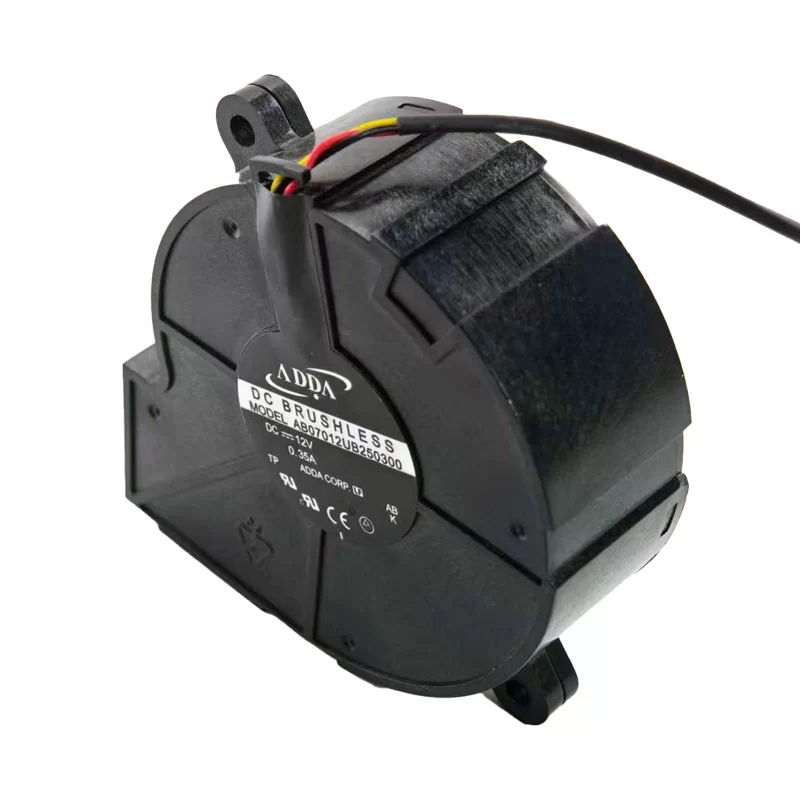

AB07012UB250300 ADDA 12V DC Centrifugal Blower

Description

The ADDA AB07012UB250300 is a compact DC centrifugal blower, measuring 70 x 70 x 25 mm, engineered for thermal solutions that require high static pressure. Operating on a 12 V DC supply, this high-performance model draws 0.35 A of current and consumes 4.2 W of power. The blower utilizes a reliable Double Ball Bearing system to ensure long life, typically rated for 70000 Hours. It is constructed with a durable Plastic (PBT) frame and impeller, and features a 3-Wire termination for connection.

AB07012UB250300 Fan Parameters
Manufacturer: ADDA
Model: AB07012UB250300
Fan Type: DC Centrifugal Blower
Dimensions: 70 x 70 x 25 mm
Rated Voltage: 12 V DC
Current Rating: 0.35 A
Power Consumption: 4.2 W
Bearing Type: Double Ball Bearing
Frame Material: Plastic (PBT)
Impeller Material: Plastic (PBT)
Life Expectancy: 70000 Hours
Termination: 3-Wire Leads

Application
As a centrifugal blower, the AB07012UB250300 is most effective in applications that feature constrained space and require air to be pushed through high-impedance pathways. Typical uses include cooling server rack blades, ducted systems, portable medical devices, and industrial control panels.
