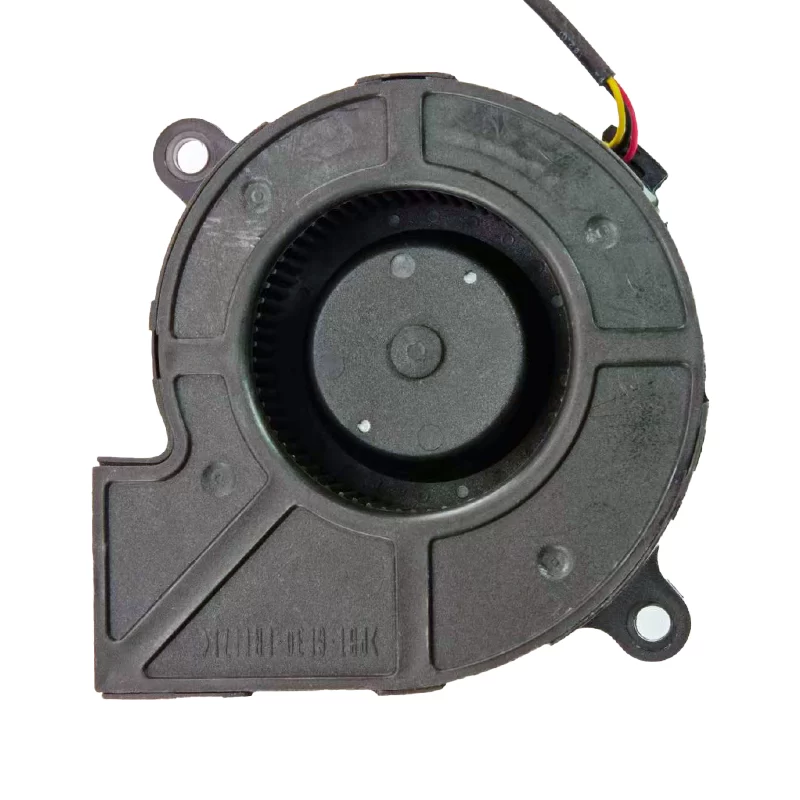

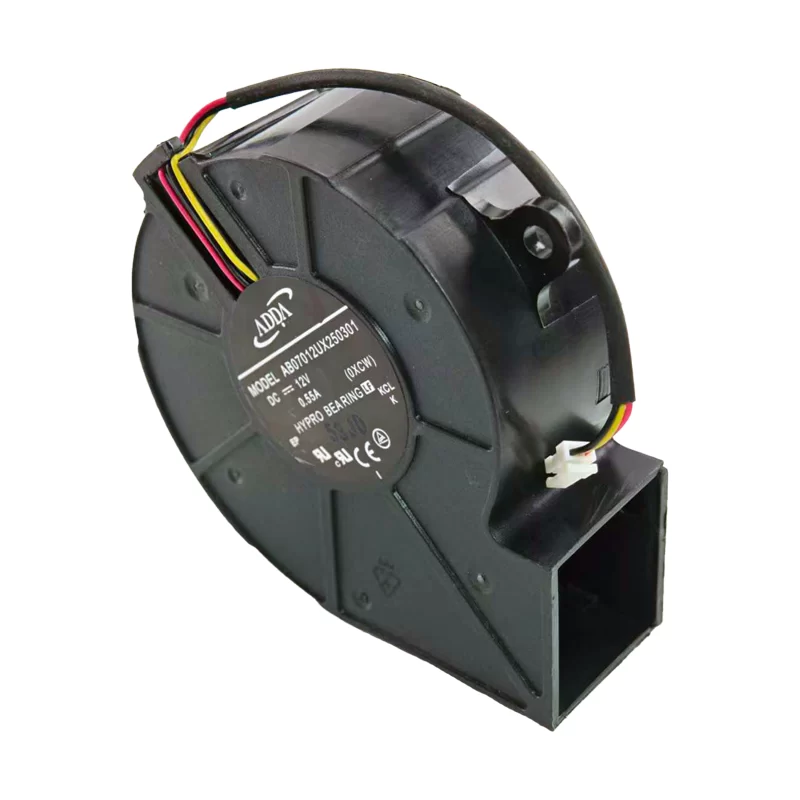

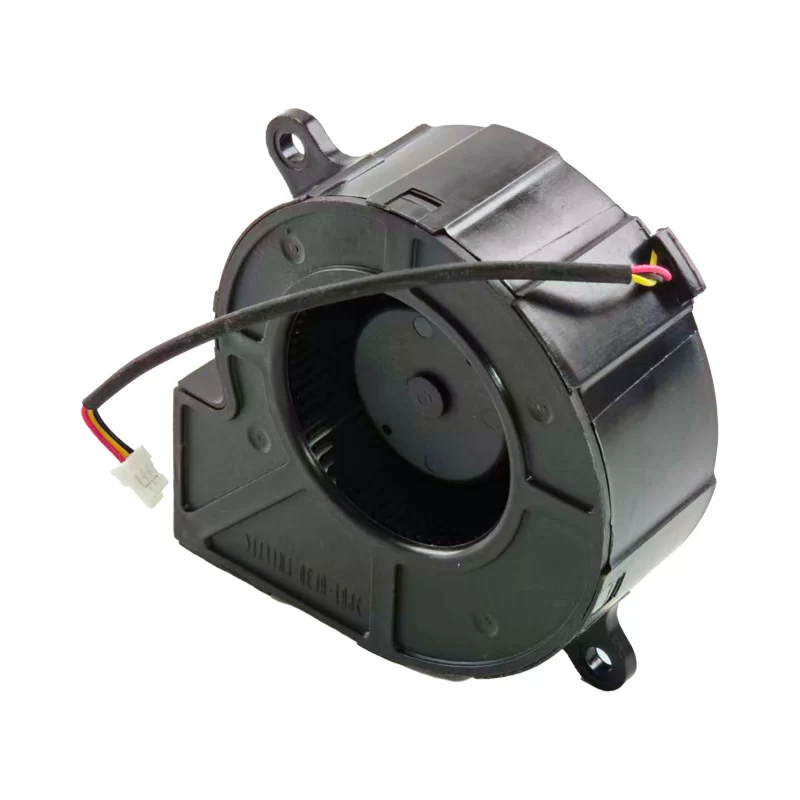

AB07012UX250301 ADDA 12V DC Blower Fan

Description

The ADDA AB07012UX250301 is a high-performance DC Blower Fan (Centrifugal Fan) measuring 70×70×25 mm. Operating on 12 VDC, it has a rated current of 0.35 A and consumes 4.2 W of power. This model utilizes a durable Ball Bearing system to reach a high speed of 3,500 RPM. It generates a concentrated airflow of 18.87 m3/h (11.11 CFM) and a high static pressure of 134.4 Pa (0.54 inH2O) with a noise level of 43.8 dB(A).

AB07012UX250301 Fan Parameters
Model: AB07012UX250301
Manufacturer: ADDA
Fan Type: DC Blower Fan (Centrifugal/Turbine)
Dimensions: 70×70×25 mm
Nominal Voltage: 12 VDC
Rated Current: 0.35 A
Rated Power: 4.2 W
Rated Speed: 3,500 RPM
Airflow: 18.87 m3/h
Static Pressure: 134.4 Pa
Noise Level: 43.8 dB(A)
Weight: 35 g
Bearing System: Ball Bearing
Termination: 3-Wire Leads
Frame Material: Plastic (UL94V−0)
Impeller Material: Plastic (UL94V−0)
Motor Design: Brushless DC Motor

Application
The AB07012UX250301 is a specialized fan designed for applications demanding concentrated airflow and high static pressure to effectively overcome flow resistance. It is typically used for forced air cooling in high-density electronic devices such as projectors, servers, networking equipment, and various forms of industrial or medical apparatus with restrictive or channeled air paths.
