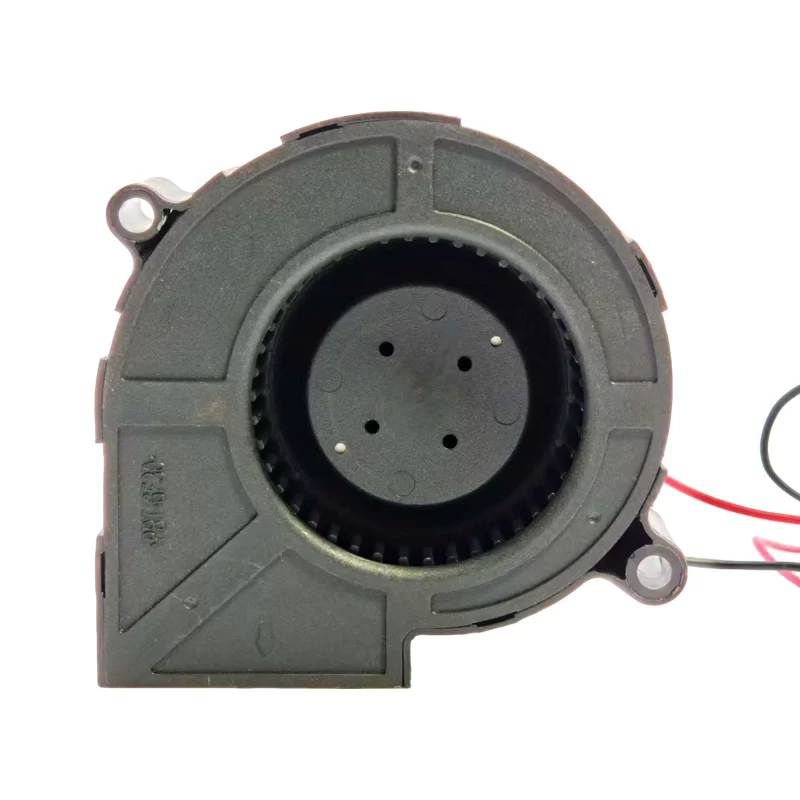

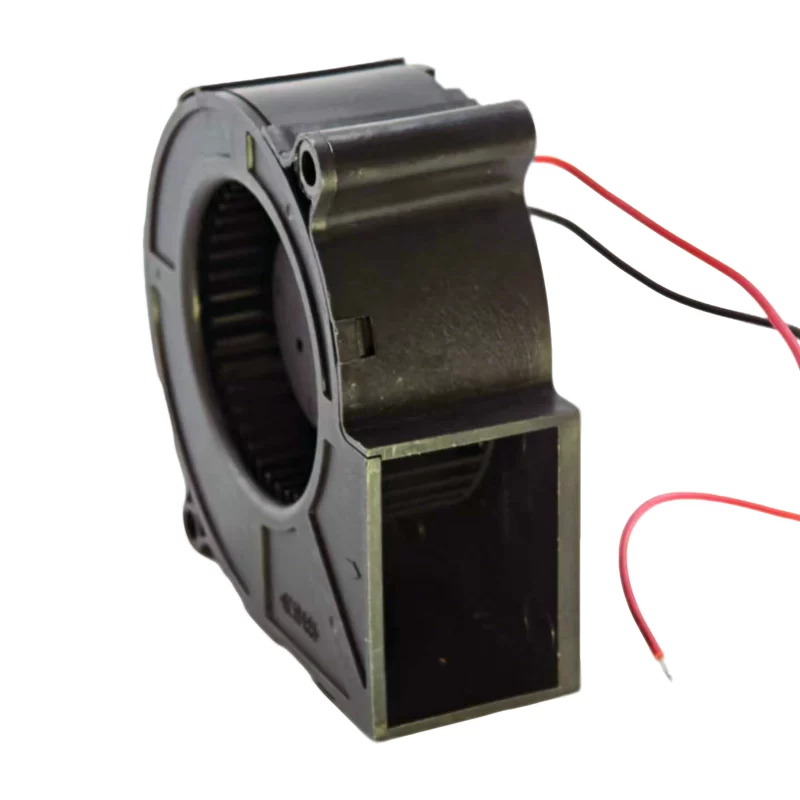

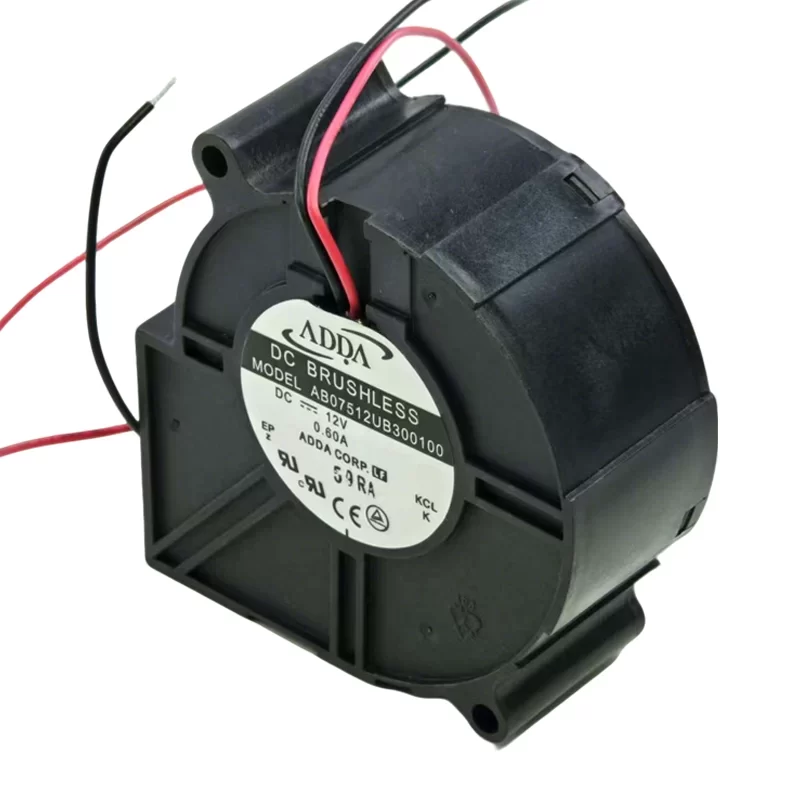

AB07512UB300100 ADDA 12V DC Blower Fan

Description

The ADDA AB07512UB300100 is a DC blower fan with dimensions of 75 x 75 x 30 mm. It operates at 12V DC, drawing 0.60A and consuming 5.76W. This fan delivers an airflow of 18.5 CFM (31.4 m³/h) with a static pressure of 1.02 inch H₂O (254 Pa). It spins at 4500 RPM, producing a noise level of 49.1 dB(A). The fan uses ball bearings for reliability and has two-wire leads for connection. It operates within a temperature range of -10 °C to 60 °C.

AB07512UB300100 Fan Parameters
Manufacturer: ADDA
Model: AB07512UB300100
Fan Type: DC Blower / Centrifugal Fan
Dimensions: 75 x 75 x 30 mm
Rated Voltage: 12V DC
Current Rating: 0.60 A
Power Consumption: 5.76 W
Airflow: 18.5 CFM (31.4 m³/h)
Static Pressure: 1.02 inch H₂O (254 Pa)
Speed: 4500 RPM
Noise Level: 49.1 dB(A)
Bearing Type: Ball Bearing
Termination: Two Wire Leads
Housing Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10 °C ~ 60 °C
Weight: 80 g

Application
This DC blower fan, AB07512UB300100, is designed for applications requiring directed airflow and higher static pressure, such as cooling electronic components, ventilating small enclosures, and in medical devices.
