Description

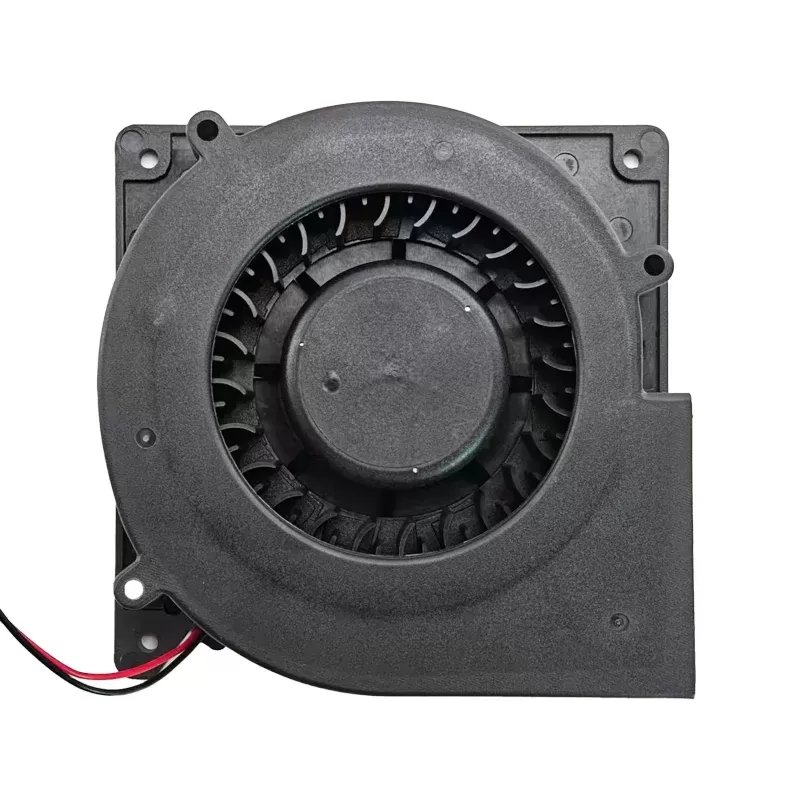

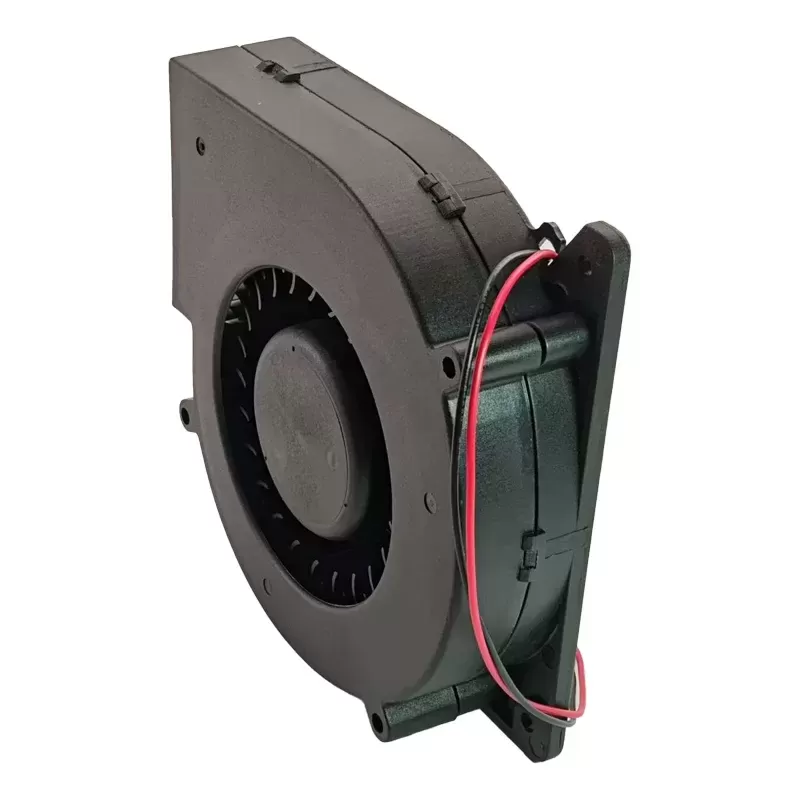

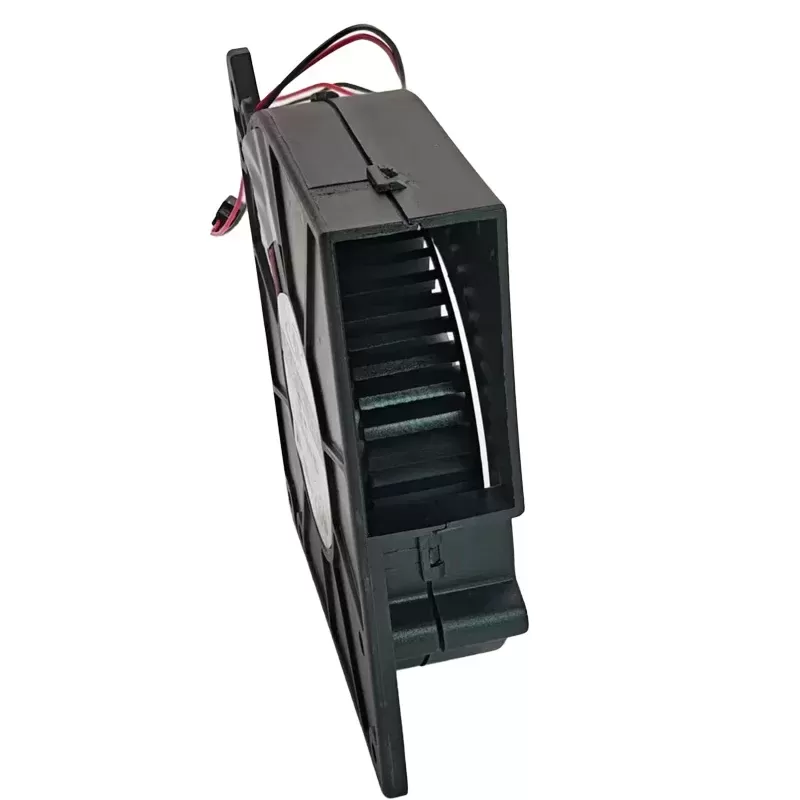

The ADDA AB1224UB-Y01 is a high-performance 24V DC centrifugal blower fan. Measuring 120mm x 120mm x 32mm, this blower is designed for efficient cooling in systems that require focused airflow and significant static pressure, such as industrial electronics, server racks, and telecommunication equipment. It operates within an operating voltage range of 14.0V to 27.6V DC and draws a current of 0.55A, resulting in a power consumption of 13.2W. This allows it to achieve a rotational speed of 3000 RPM, delivering an airflow of 37.0 CFM and a static pressure of 1.6 inch-H2O. Its noise level is 57.0 dBA. The fan features ball bearings for enhanced durability and a reliable operational lifespan of 50,000 hours at 40°C. It also includes auto-restart and polarity protection. It commonly comes with 2-wire leads for power connection and is built with a plastic frame and impeller.
Model Number: AB1224UB-Y01
Manufacturer: ADDA Corporation
Type: DC Blower Fan (Centrifugal Fan)
Dimensions: 120mm x 120mm x 32mm
Rated Voltage: 24V DC
Operating Voltage Range: 14.0V to 27.6V DC
Rated Current: 0.55A
Rated Power: 13.2W (calculated: 24V * 0.55A)
Speed: 3000 RPM
Airflow: 37.0 CFM (1.05 m³/min)
Static Pressure: 1.6 inch-H2O (40.64 mmH2O)
Noise Level: 57.0 dBA
Connector: 2-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 50,000 hours at 40°C
Frame Material: Plastic (UL94V-0)
Impeller (Blade) Material: Plastic (UL94V-0)
Features: Auto Restart, Polarity Protection
Operating Temperature: -10°C to +70°C
Weight: 180g
Approvals/Certifications: CE, UL, TUV
