Description

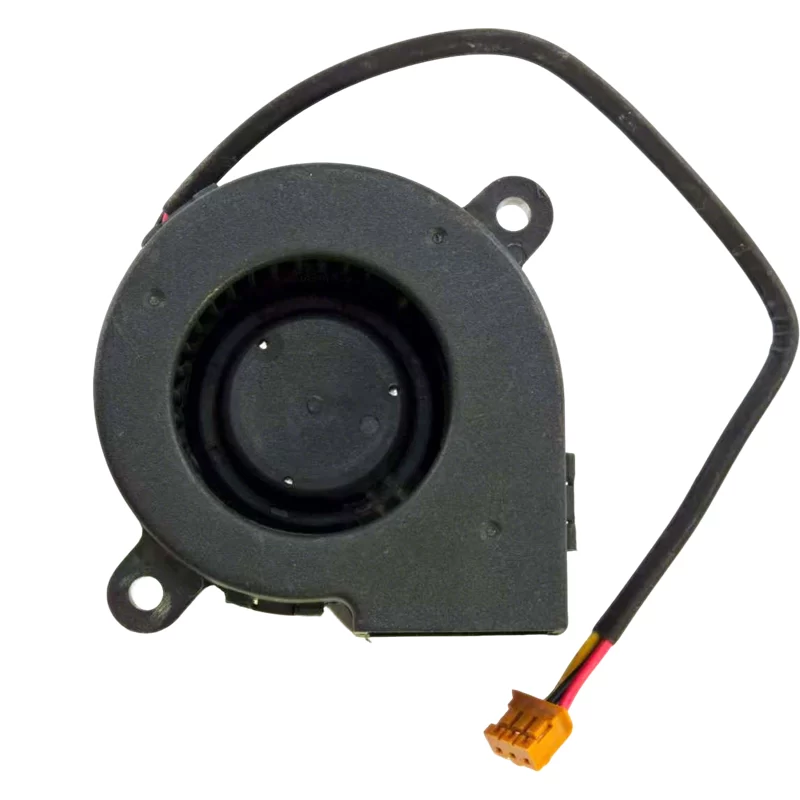

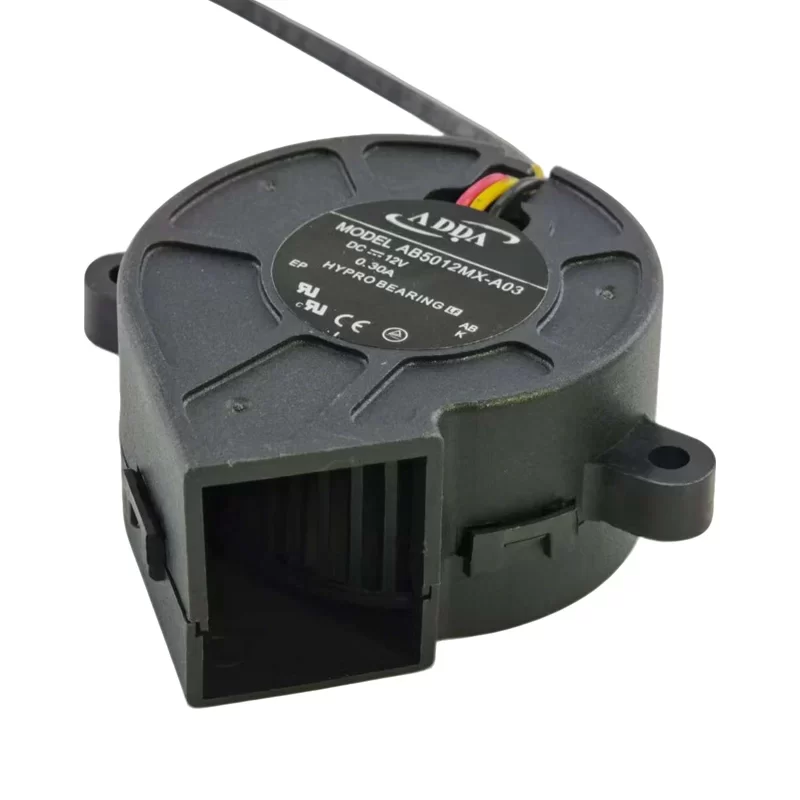

The ADDA AB5012MX-A03 is a DC blower with dimensions of 50 x 50 x 25 mm. It operates on 12V DC, drawing 0.30 A of current and consuming 3.6 W of power. The fan uses ball bearings for reliability and is terminated with three-wire leads, which typically provides a tachometer signal. It is constructed from thermoplastic materials and is designed to provide concentrated airflow and high static pressure, making it ideal for cooling in confined spaces.
AB5012MX-A03 Fan Parameters
Manufacturer: ADDA
Model: AB5012MX-A03
Fan Type: DC Blower
Dimensions: 50 x 50 x 25 mm
Rated Voltage: 12V DC
Current Rating: 0.30 A
Power Consumption: 3.6 W
Bearing Type: Ball bearing
Termination: 3-Wire Leads
Housing Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10 °C to 70 °C
Application
The AB5012MX-A03 is a projector turbine cooling fan suitable for CPU cooling, and electronic enclosures that require focused airflow to overcome air resistance and dissipate heat from specific components.
