Description

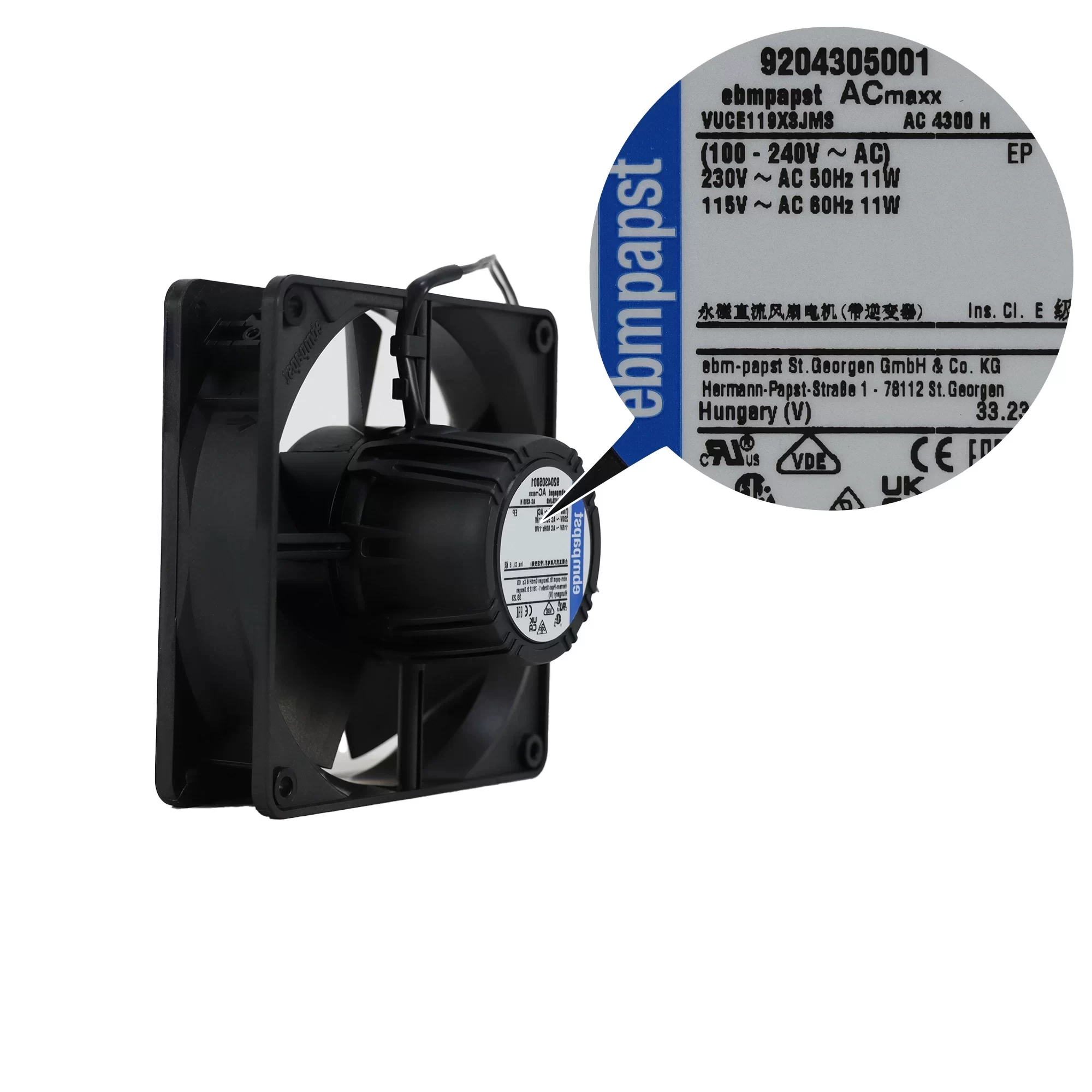

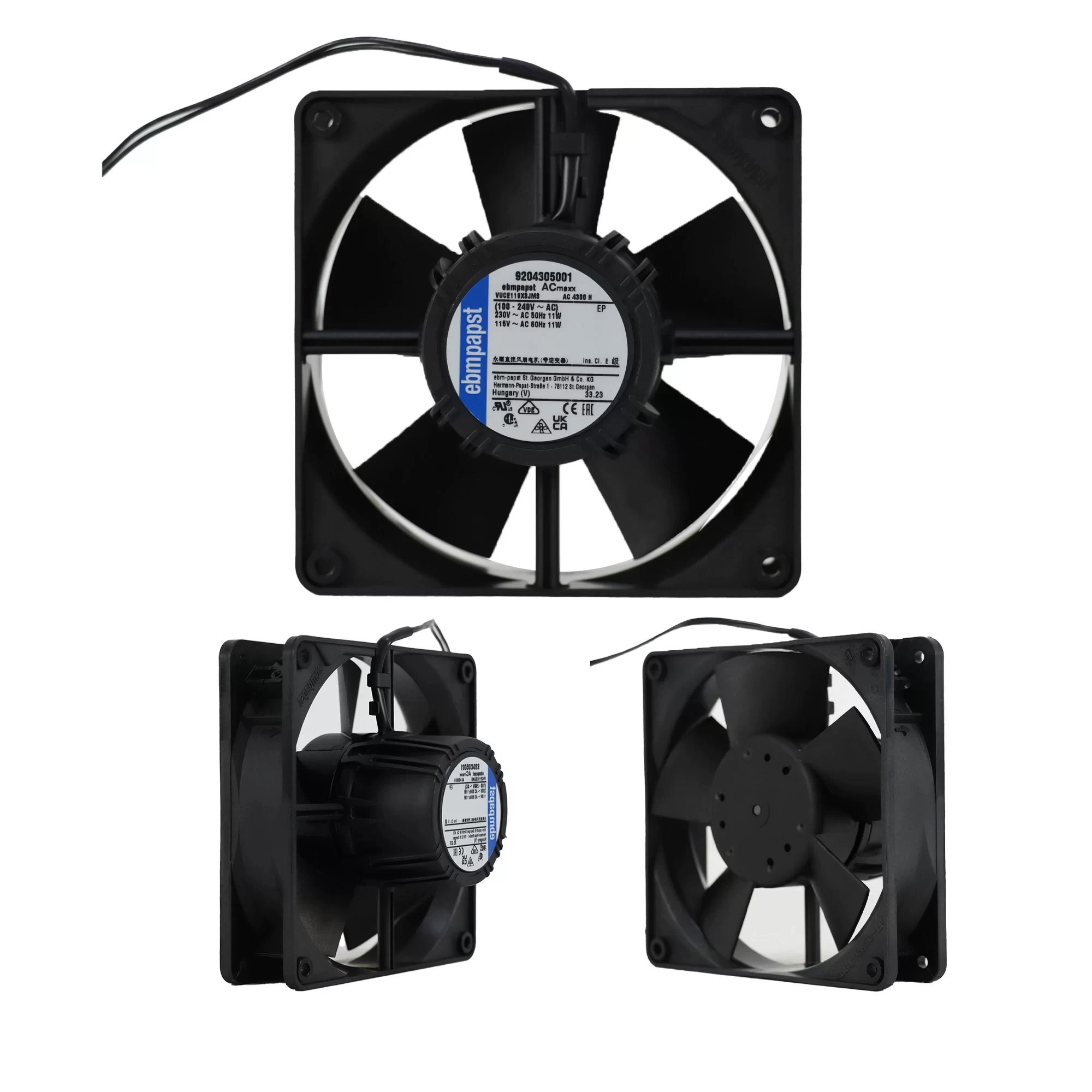

The ebmpapst AC4300H is an AC axial fan with dimensions of 119x119x32mm. Identified by part number 9204305001 and new model VUCE119XSJMS, it operates on a wide nominal voltage range of 85-265VAC at both 50Hz and 60Hz frequencies. This fan consumes 12W of power and delivers an airflow of 204m³/h (120CFM) at a speed of 3400RPM, with a sound pressure level of 51dB(A) and a sound power level of 6.4Bels. Featuring durable ball bearings and two wire leads for connection, it is constructed with a glass-fiber reinforced PBTP plastic housing and a glass-fiber reinforced PA plastic impeller, boasting an IP21 ingress protection rating. It’s suitable for reliable operation within an ambient temperature range of -20 to 70°C and has a typical service life of 45,000 hours at 40°C. This fan is ideal for general cooling applications in electronic equipment and control systems.
AC4300H Fan Parameters
Manufacturer: ebmpapst
Model: AC4300H
Part number: 9204305001
New Model: VUCE119XSJMS
Fan Type: AC Axial Fan
Dimensions: 119 x 119 x 32 mm
Rated Voltage: 115 VAC
Operating Voltage Range: 85 ~ 265 VAC
Frequency: 50 Hz / 60 Hz
Power Consumption: 12 W
Airflow: 204 m³/h (120 CFM)
Speed: 3400 RPM
Noise Level: 51 dB(A)
Sound Power Level: 6.4 Bels
Bearing Type: Ball Bearing
Termination: Two Wire Leads
Operating Temperature: -20 ~ 70°C
Lifetime @ Temp: 45,000 Hours (at 40°C)
Housing Material: Glass-fiber reinforced PBTP plastic
Impeller Material: Glass-fiber reinforced PA plastic
IP Rating: IP21
Weight: 0.325 kg
Approval Agency: UL, CSA, VDE
Application: This ebmpapst AC axial fan is suitable for general cooling applications in a wide array of electronic equipment, control cabinets, and various systems where universal voltage compatibility is beneficial.
