Description

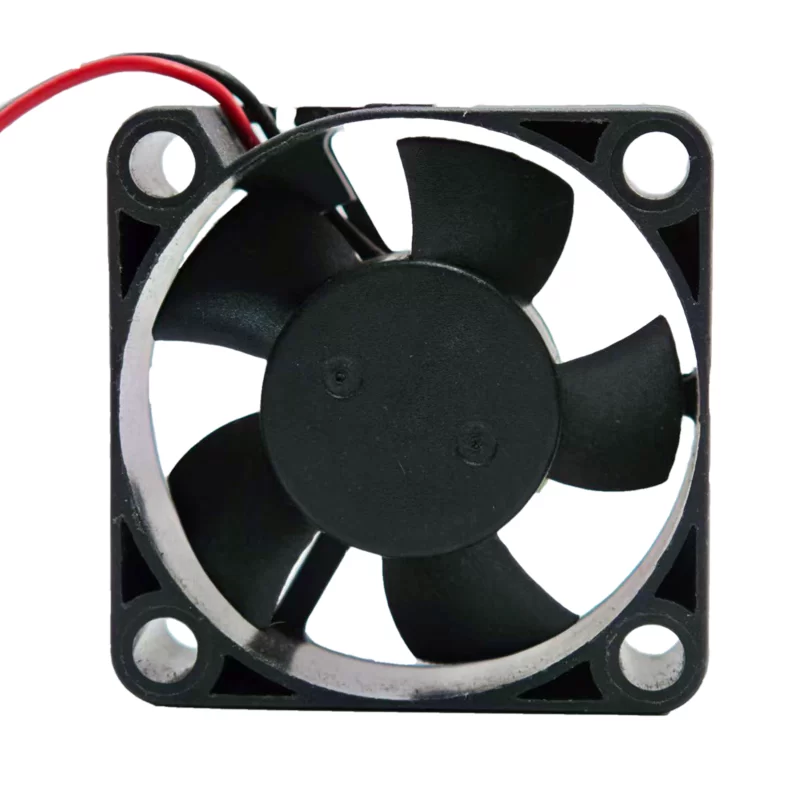

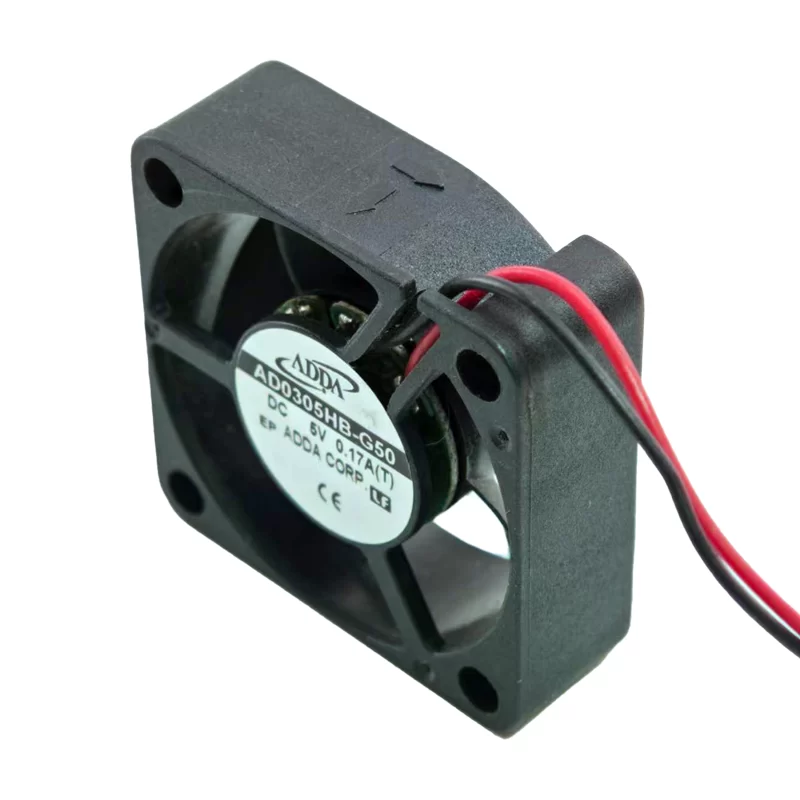

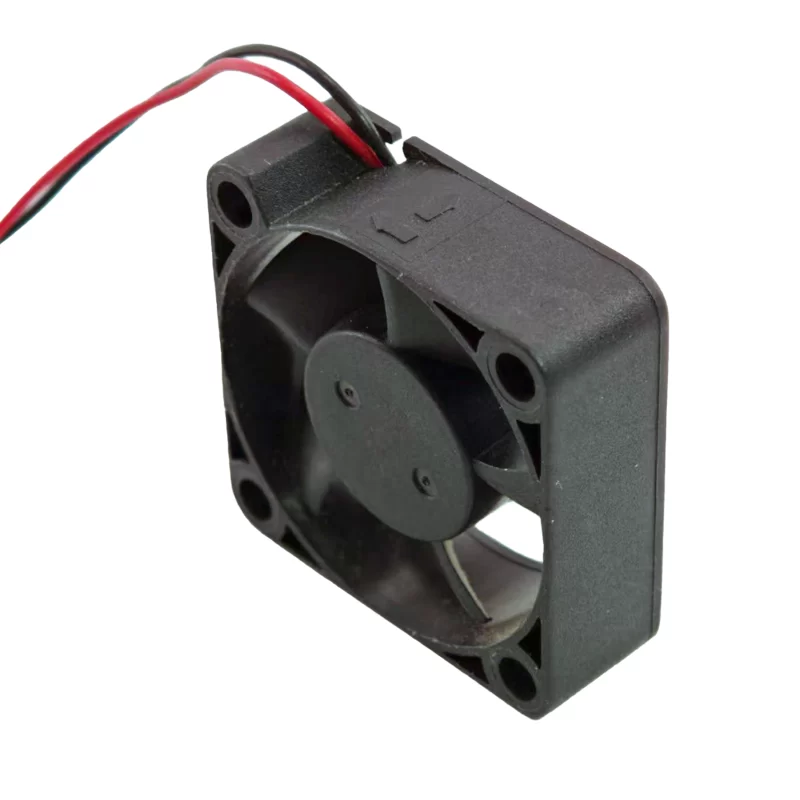

The ADDA AD0305HB-G50 is a compact DC axial fan with dimensions of 30 x 30 x 10 mm. It operates on a rated voltage of 5V DC, drawing 0.17 A of current and consuming 0.85 W of power. This fan, with 5 blades, delivers an airflow of 1.20 CFM (0.119 m3/min) and a static pressure of 0.210 inch-H₂O (5.33mm−H2O) at a high speed of 10500 RPM. It operates at a noise level of 30.7 dB(A) and features a Hypro bearing with a service life of up to 40,000 hours at 40°C. The fan housing and impeller are constructed from plastic meeting the UL 94V-0 flammability rating, and this model connects via a 2-wire lead.
AD0305HB-G50 Fan Parameters
Manufacturer: ADDA
Model: AD0305HB-G50
Fan Type: DC Axial Fan
Dimensions: 30 x 30 x 10 mm
Rated Voltage: 5V DC
Current Rating: 0.17 A
Power Consumption: 0.85 W
Airflow: 1.20 CFM
Static Pressure: 0.210 inch-H₂O
Speed: 10500 RPM
Noise Level: 30.7 dB(A)
Weight: 8 g
Bearing Type: Hypro bearing
Number of blades: 5
Termination: 2-Wire Leads
Frame Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Operating Temperature: -10 °C to 70 °C
Service Life: 40000 h at 40 °C
Approval: UL, cUL, CE
Application
The AD0305HB-G50 fan is suitable for miniature electronics, personal computers, and small-scale device cooling where space is limited and efficient cooling is required.
