Description

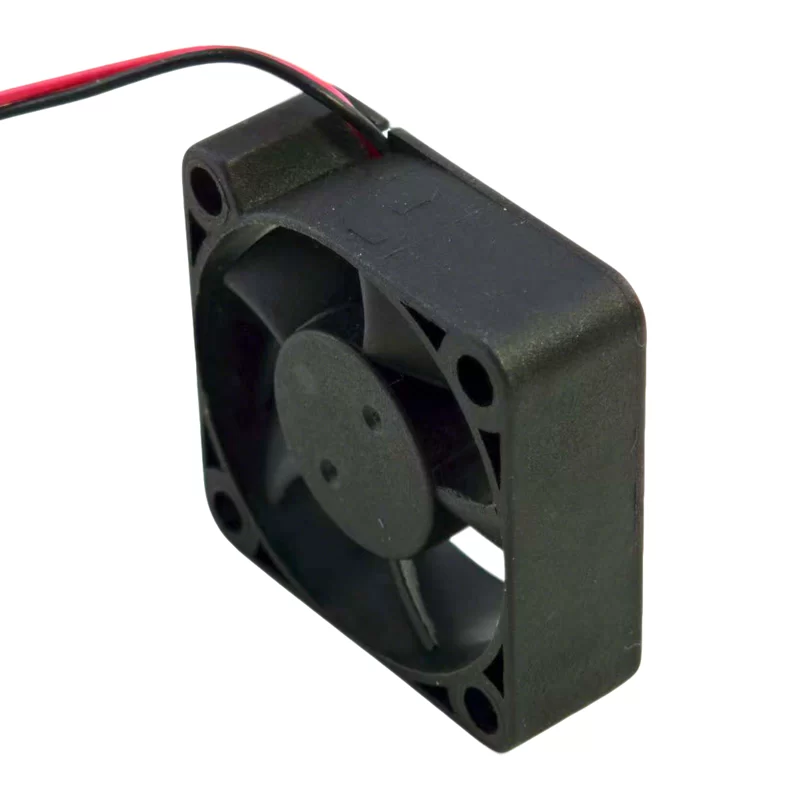

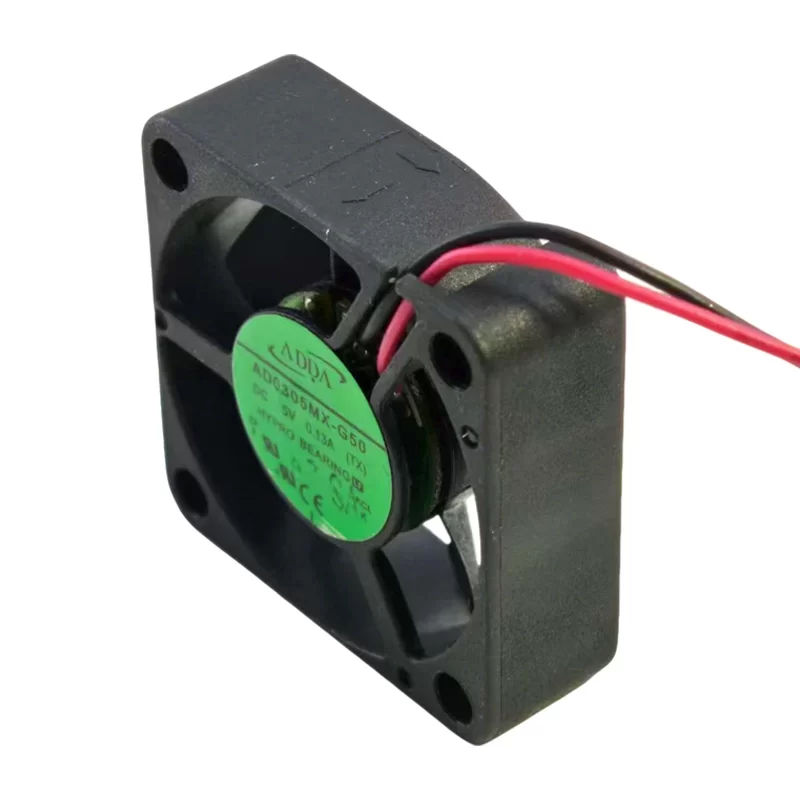

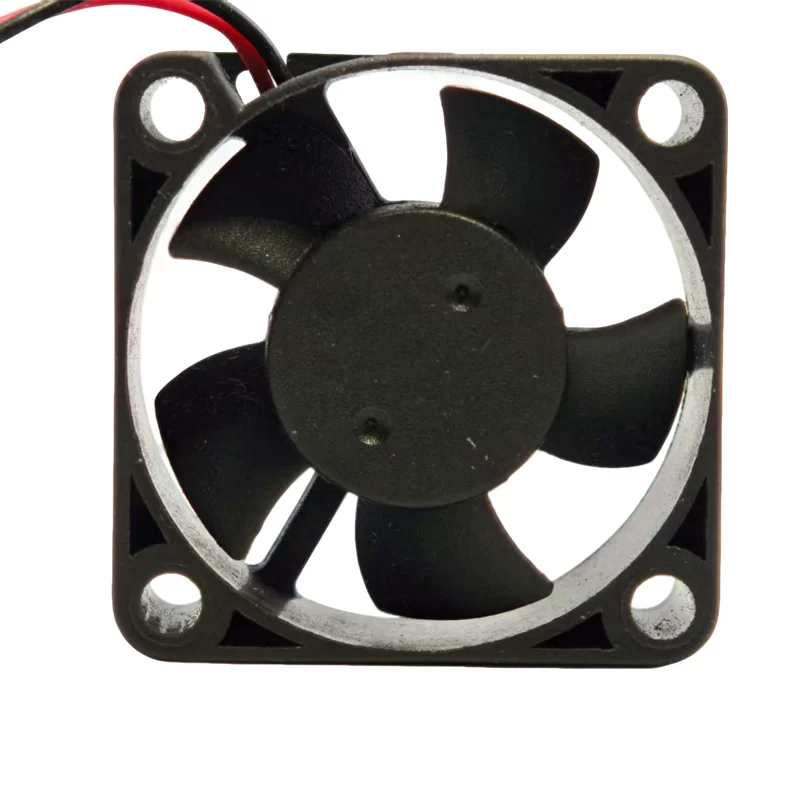

The ADDA AD0305MX-G50 is a compact, high-speed DC axial fan with dimensions of 30 x 30 x 10 mm. It operates on 5V DC, drawing 0.13 A of current and consuming 0.65 W of power. The fan provides an airflow of 3.3 CFM (5.6 m³/h) and generates a static pressure of 3.75 mmAq (36.8 Pa). It runs at a speed of 9000 RPM with a noise level of 30 dB(A). The fan uses Hypro bearings for enhanced durability and features two-wire leads. This fan is ideal for cooling in small electronic devices.
AD0305MX-G50 Fan Parameters
Manufacturer: ADDA Corporation
Model: AD0305MX-G50
Fan Type: DC Axial Fan
Dimensions: 30 x 30 x 10 mm
Rated Voltage: 5V DC
Current Rating: 0.13 A
Power Consumption: 0.65 W
Airflow: 3.3 CFM (5.6 m³/h)
Static Pressure: 3.75 mmAq (36.8 Pa)
Speed: 9000 RPM
Noise Level: 30 dB(A)
Bearing Type: Hypro Bearing
Termination: Two Wire Leads
Housing Material: Thermoplastic (UL94V-0)
Impeller Material: Thermoplastic (UL94V-0)
Operating Temperature: -10 °C ~ 60 °C
Weight: 8 g
Application: The AD0305MX-G50 is a compact, high-speed DC axial fan specifically designed for silent cooling solutions, particularly for projectors. Its performance characteristics are optimized for thermal management of optical components and other heat-generating elements within projector systems, ensuring quiet operation without compromising cooling efficiency. This fan is also suitable for other space-constrained applications requiring effective and low-noise cooling, such as embedded systems and miniature electronic devices.
