Description

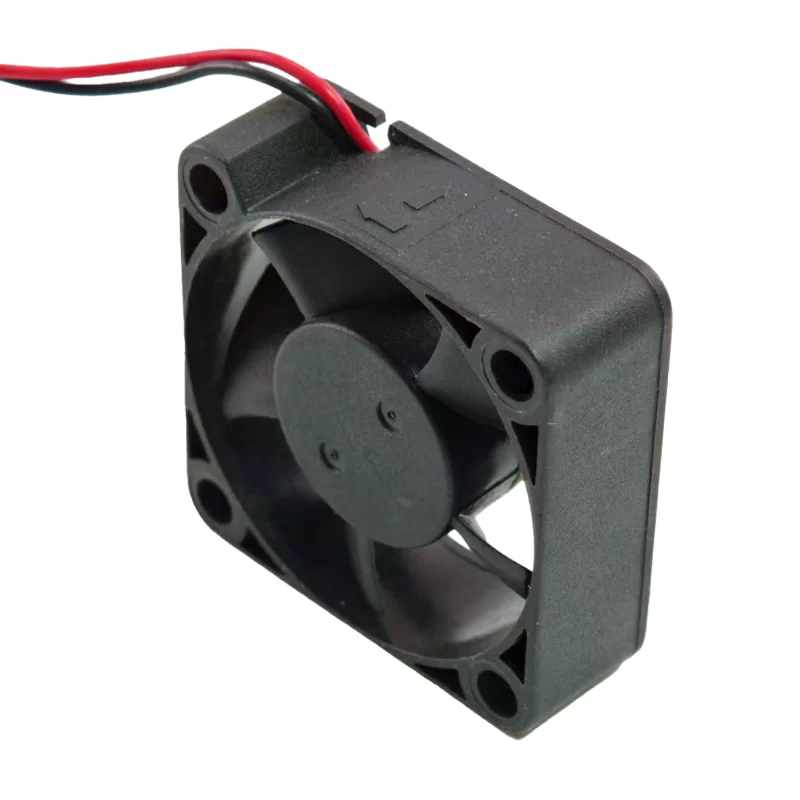

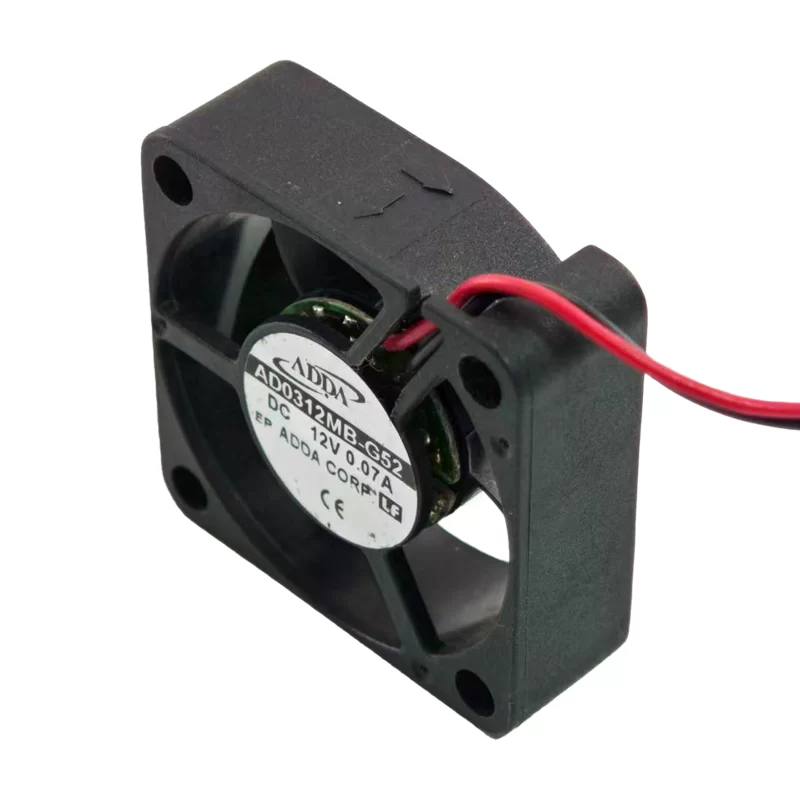

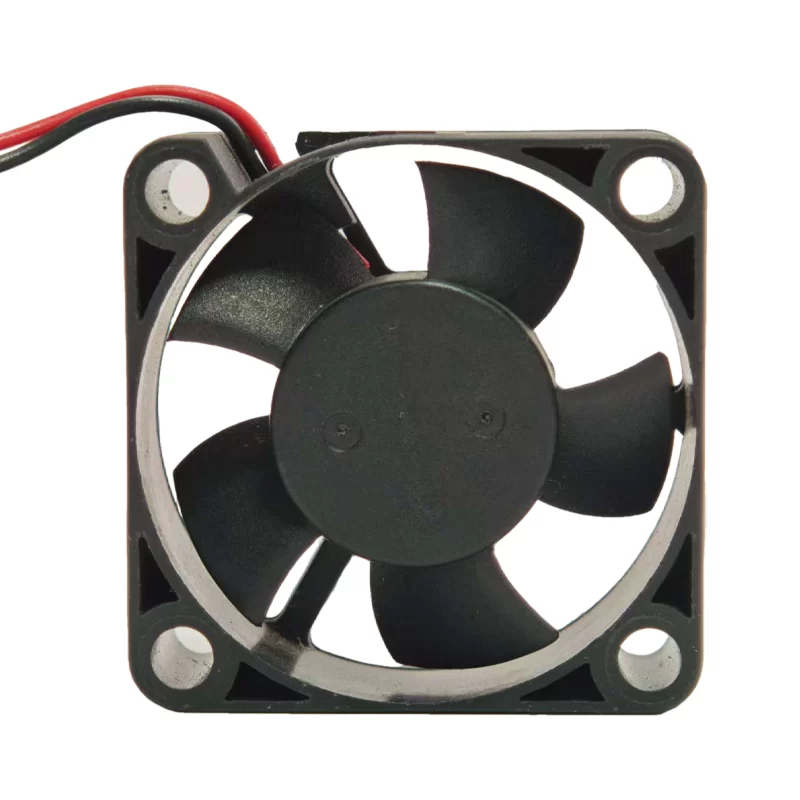

The ADDA AD0312MB-G52 is a compact DC axial fan with dimensions of 30 x 30 x 10 mm. It operates on a rated voltage of 12V DC within a range of 6-13.8V, drawing 0.07 A of current and consuming 0.84 W of power. This fan, with 5 blades, delivers an airflow of 3.6 CFM (6.1 m3/h) and a static pressure of 0.08 inch-H₂O (20Pa) at a speed of 8000 RPM. It operates at a low noise level of 21 dB(A) and features a ball bearing with a service life of up to 50,000 hours at 40°C. The fan housing and impeller are constructed from plastic, and this model connects via a 2-wire lead.
AD0312MB-G52 Fan Parameters
Manufacturer: ADDA
Model: AD0312MB-G52
Fan Type: DC Axial Fan
Dimensions: 30 x 30 x 10 mm
Rated Voltage: 12V DC
Operating Voltage Range: 6-13.8 V
Current Rating: 0.07 A
Power Consumption: 0.84 W
Airflow: 3.6 CFM
Static Pressure: 0.08 inch-H₂O
Speed: 8000 RPM
Noise Level: 21 dB(A)
Weight: 0.008 kg
Bearing Type: Ball bearing
Number of blades: 5
Termination: 2-Wire Leads
Housing Material: Plastic
Impeller Material: Plastic
Operating Temperature: -10 °C to 70 °C
Service Life: 50000 h at 40 °C
Approval: UL, cUL, CE
Application
The AD0312MB-G52 fan is suitable for miniature electronics, personal computers, and small-scale device cooling where space is limited and efficient cooling is required.
