Description

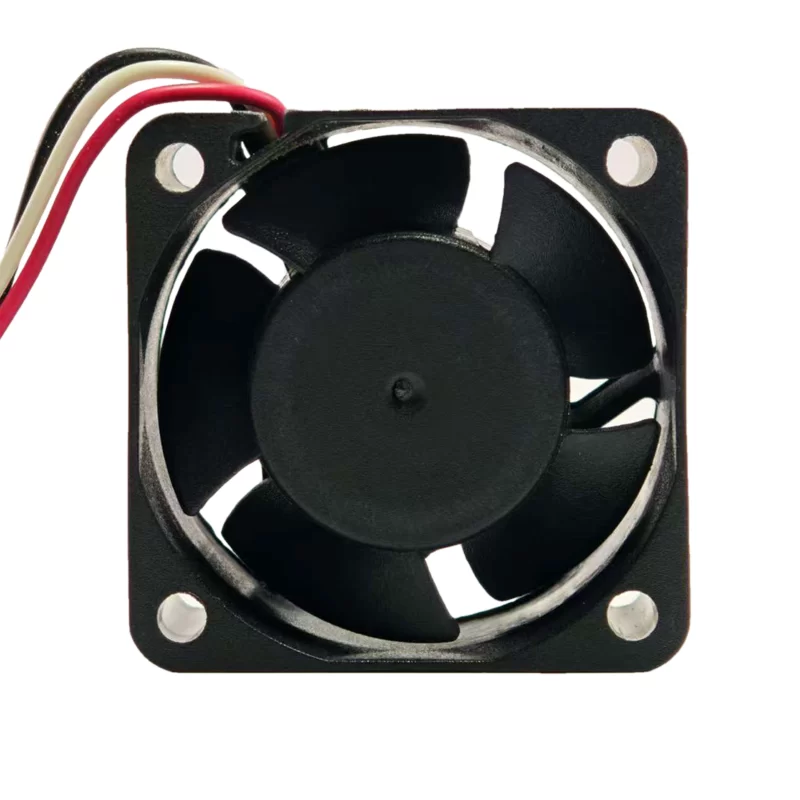

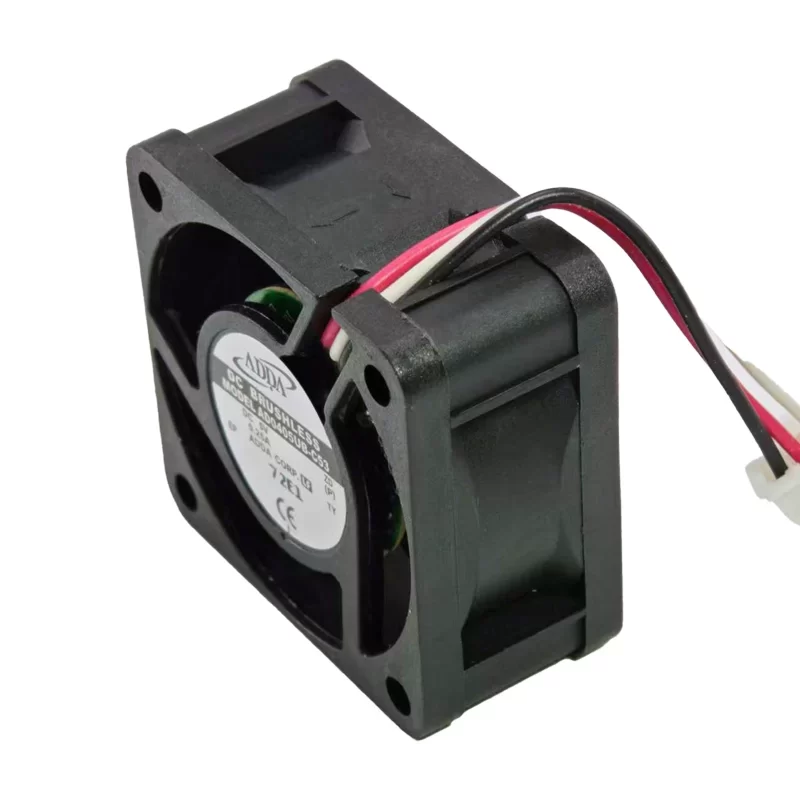

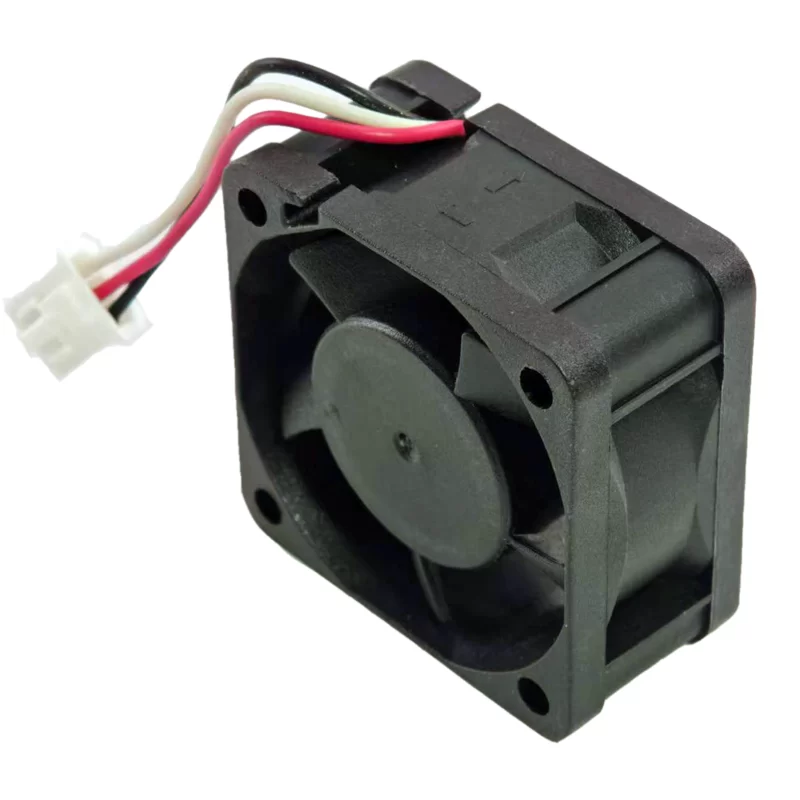

The ADDA AD0405UB-C53 is a high-performance DC Axial Fan with dimensions of 40×40×28 mm. Operating at 5 V, this model is rated at a Current of 0.25 A, resulting in a Power Consumption of 1.25 W. It delivers an Airflow of approximately 20.4 m3/h (12.0 CFM) and Static Pressure of 149.5 Pa (0.60 inAq) at a Nominal Speed of 11,000 RPM. It features a Ball Bearing system, five blades, and a 3-Wire termination, likely with Frequency Generator (FG) output, making it highly suitable for restricted high-resistance applications.

AD0405UB-C53 Fan Parameters
Model: AD0405UB-C53
Manufacturer: ADDA
Type: DC FG Axial Fan
Dimensions: 40×40×28 mm
Operating Voltage: 5 V
Rated Current: 0.25 A
Power Consumption: 1.25 W
Nominal Speed: 11,000 RPM
Airflow: 20.4 m3/h (12.0 CFM)
Static Pressure: 149.5 Pa (0.60 inAq)
Noise Level: 38.0 dB(A)
Bearing Type: Ball Bearing
Motor Design: Brushless DC Motor
Number of blades: 5
Termination: 3-Wire Leads
Motor Protection: Not specified
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Weight: 55 g
Operating Temperature: −10 ∘ C to +70 ∘C
Life Expectancy: Not specified
Available Features: Frequency Generator (FG)

Application
This high-performance fan is ideally suited for compact electronic equipment such as high-density network routers, small form factor server power supplies, industrial control systems, and embedded computing platforms where high static pressure is required within a 40×40×28 mm envelope.
