Description

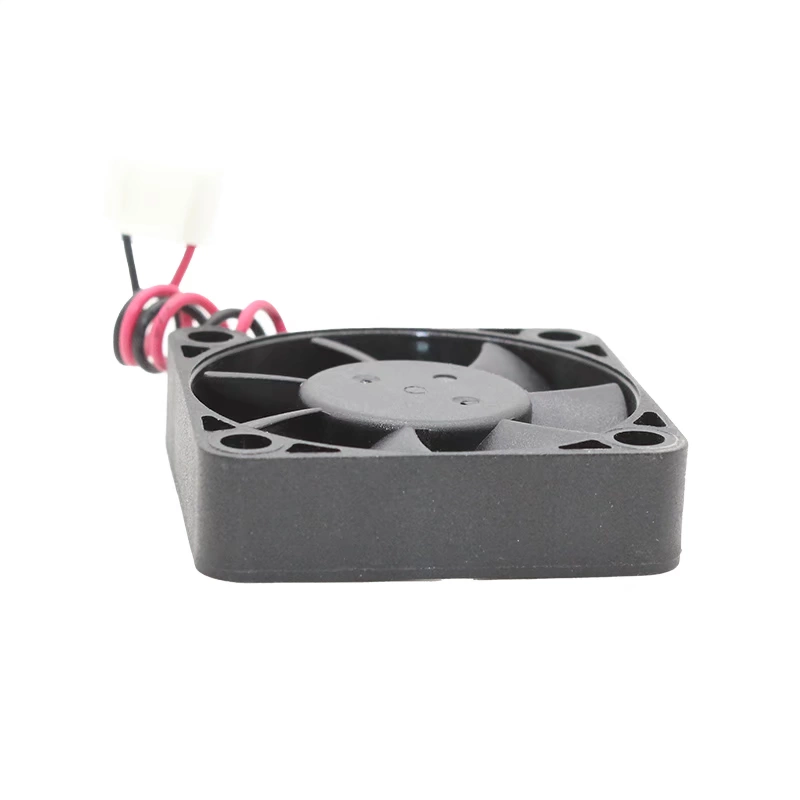

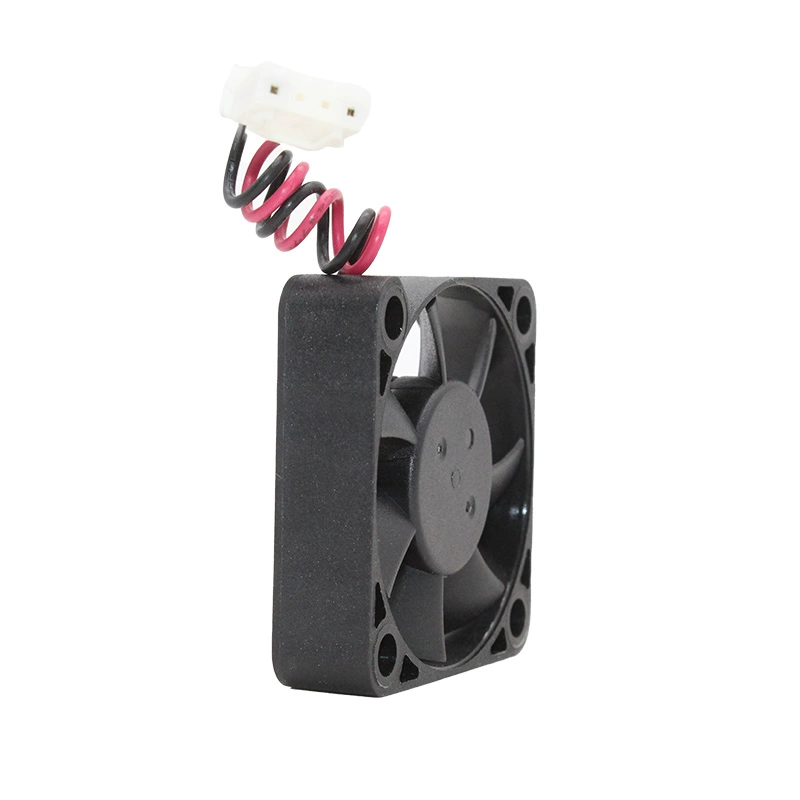

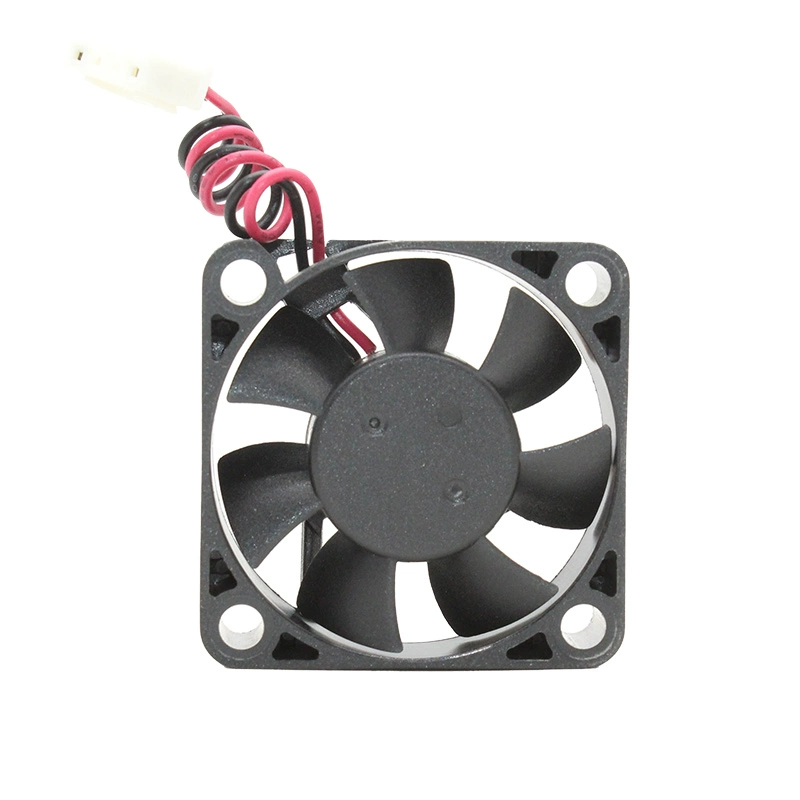

The ADDA AD0405HX-G70 is a compact and efficient DC Axial Cooling Fan designed for various electronic applications requiring precise thermal management in limited spaces. Operating on 5V DC power, it draws 0.19A of current, resulting in a 0.95W power consumption. With its small 40mm x 40mm x 10mm dimensions, this fan spins at 6000 RPM, delivering 6.7 CFM of airflow and a static pressure of 2.54 mmH2O. It maintains a low noise level of 25 dBA, making it suitable for noise-sensitive environments. Equipped with 2-wire leads for power connection and featuring a Hypro Bearing for quiet and reliable operation, the AD0405HX-G70 offers a long operational lifespan of 50,000 hours at 25°C. It is widely used in mini PCs, networking devices, and other small form factor electronics.
AD0405HX-G70 ADDA 4010 fan 5V 0.19A 4cm server industrial control power cooling fan
Manufacturer: ADDA Corporation
Model Number: AD0405HX-G70
Type: DC Axial Cooling Fan
Rated Voltage: 5V DC
Rated Current: 0.19A
Rated Power: 0.95W
Speed: 6000 RPM
Airflow: 6.7 CFM
Static Pressure: 2.54 mmH2O or 0.100 inH2O
Noise Level: 25 dBA
Dimensions: 40mm x 40mm x 10mm
Connector: 2-Wire Leads
Life Expectancy: 50,000 hours at 25°C
