Description

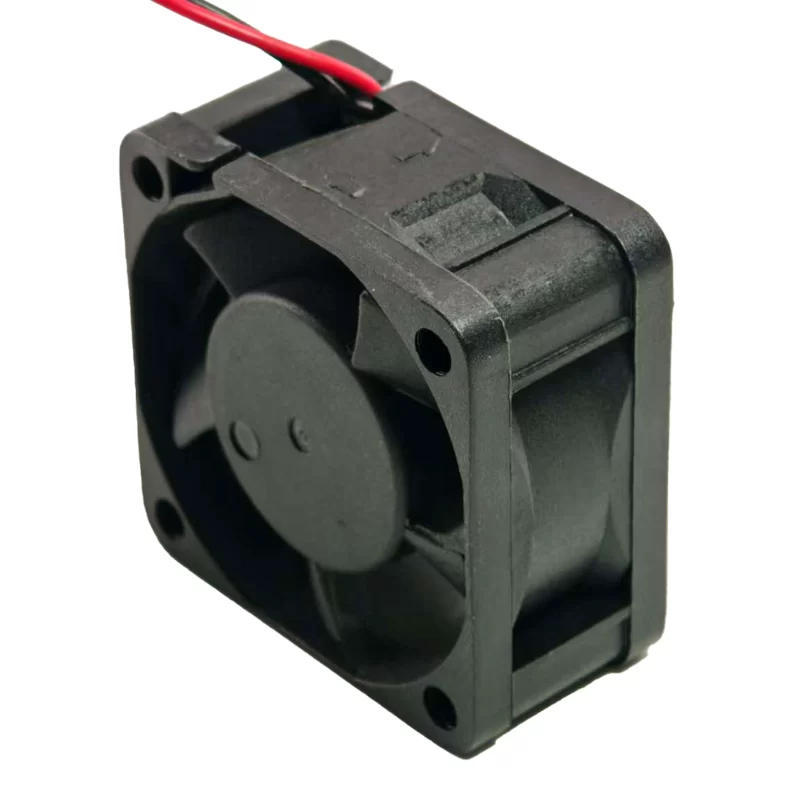

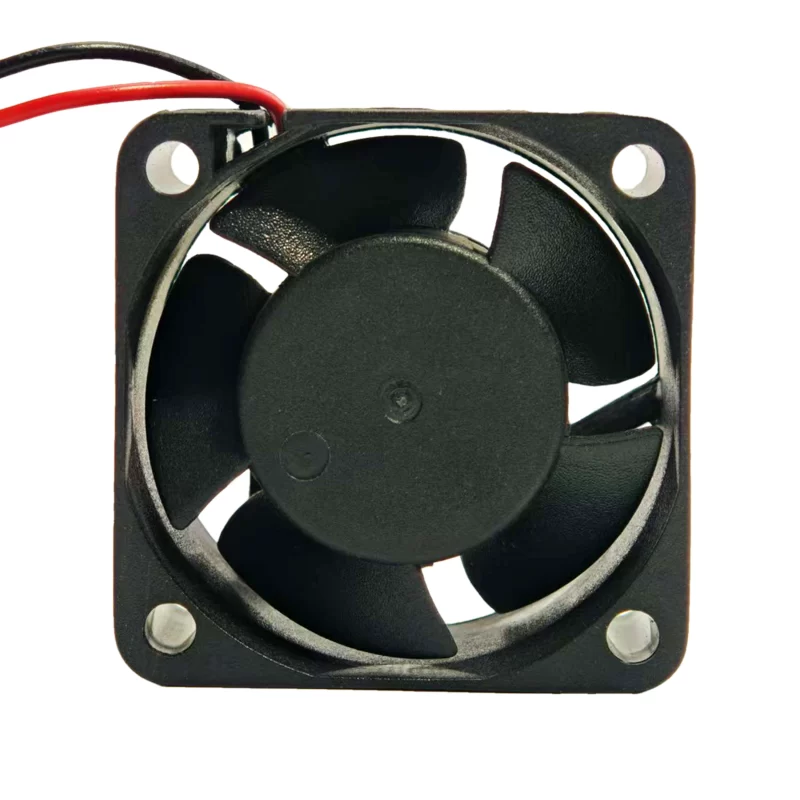

The ADDA AD0405LX-C50 is a high-performance DC Axial Fan with dimensions of 40×40×20 mm. Operating at 5 V, this Low Speed model (LX) has a Rated Current of 0.14 A and Power Consumption of 0.70 W. It delivers an Airflow of 12.23 m3/h (7.2 CFM) and Static Pressure of 35.35 Pa (0.142 inAq) at a Nominal Speed of 5,700 RPM. It features a Hypro Bearing system, five blades, and a low Noise Level of 22.4 dB(A), making it suitable for noise-sensitive applications.
AD0405LX-C50 Fan Parameters
Model: AD0405LX-C50
Manufacturer: ADDA
Type: DC Axial Fan
Dimensions: 40×40×20 mm
Operating Voltage: 5 V
Rated Current: 0.14 A
Power Consumption: 0.70 W
Nominal Speed: 5,700 RPM
Airflow: 12.23 m3/h (7.2 CFM)
Static Pressure: 35.35 Pa (0.142 inAq)
Noise Level: 22.4 dB(A)
Bearing Type: Hypro
Motor Design: Brushless DC Motor
Number of blades: 5
Termination: 2-Wire Leads
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Weight: 28 g
Safety Approvals: UL, CUL, TUV, CE
Application
The AD0405LX-C50 is primarily used for cooling components in low-power 5V systems, including routers, network devices, mini PCs, small appliances, 1U and 2U low-profile equipment, and embedded electronic boards where acoustic noise must be minimized.
