Description

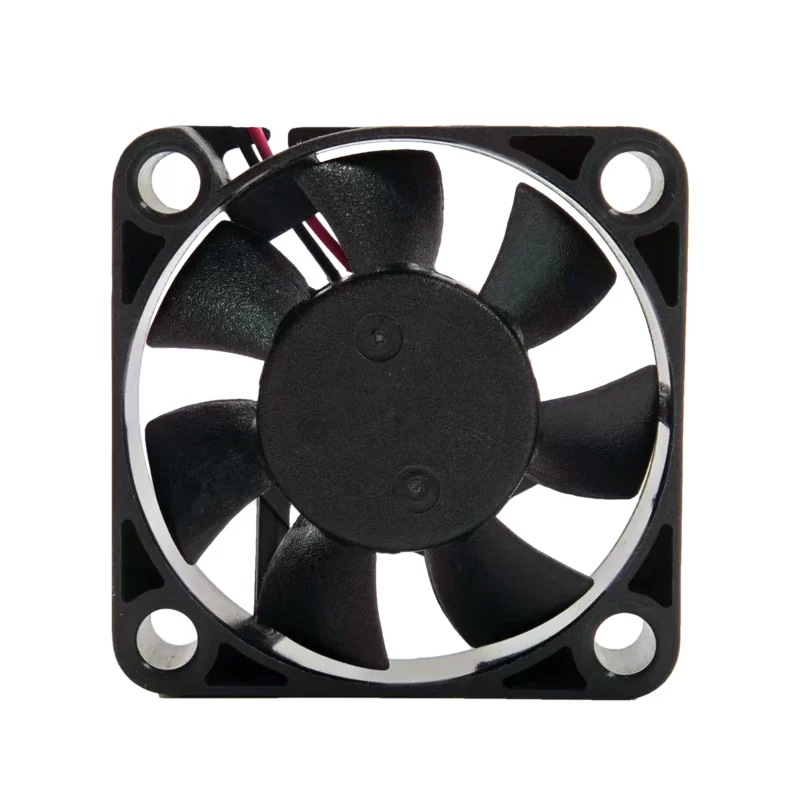

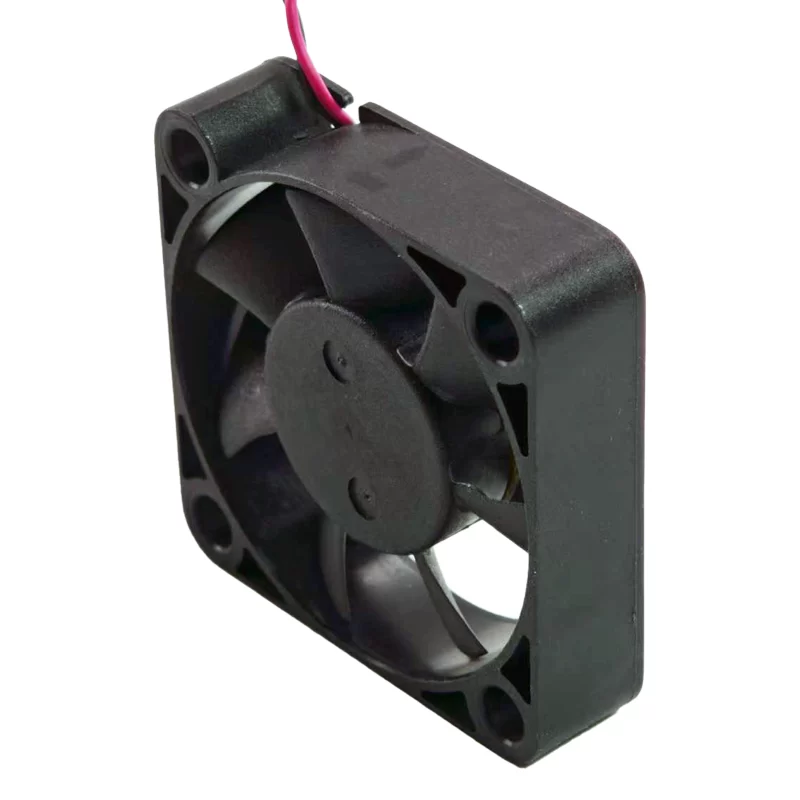

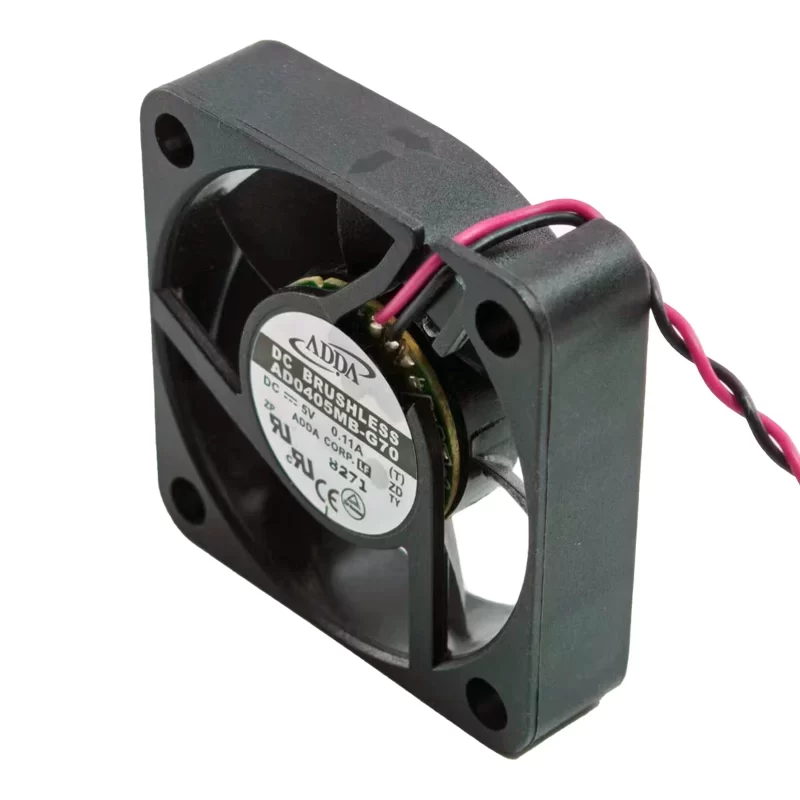

The ADDA AD0405MB-G70 is a compact DC axial fan with measuring dimensions of 40 x 40 x 10 mm. It is rated for 5V DC operation, drawing a low current of 0.11 A and consuming 0.55 W of power. Engineered for effective cooling in small spaces, it achieves an airflow of 5.7 CFM and a static pressure of 0.078 inch-H₂O at a speed of 4800 RPM. The fan utilizes a reliable ball bearing system for long-term use and generates a quiet noise level of 20.0 dB(A). It features an integrated protection circuit and connects via a 2-wire lead. This fan is approved to UL, cUL, TUV, and CE standards, making it suitable for a variety of compact electronic and computing applications.
AD0405MB-G70 Fan Parameters
Manufacturer: ADDA
Model: AD0405MB-G70
Fan Type: DC Axial Fan
Dimensions: 40 x 40 x 10 mm
Rated Voltage: 5 V DC
Current Rating: 0.11 A
Power Consumption: 0.55 W
Airflow: 5.7 CFM
Static Pressure: 0.078 inch-H₂O
Speed: 4800 RPM
Noise Level: 20.0 dB(A)
Weight: 24 g
Bearing Type: Ball bearing
Termination: 2-Wire Leads
Operating Temperature: -10 °C to 70 °C
Approval: UL, cUL, TUV, CE
Application
The AD0405MB-G70 fan is typically used for targeted cooling of router and modem enclosures, mini-PCs, small electronic devices, 3D printers, and embedded systems where space is highly constrained.
