Description

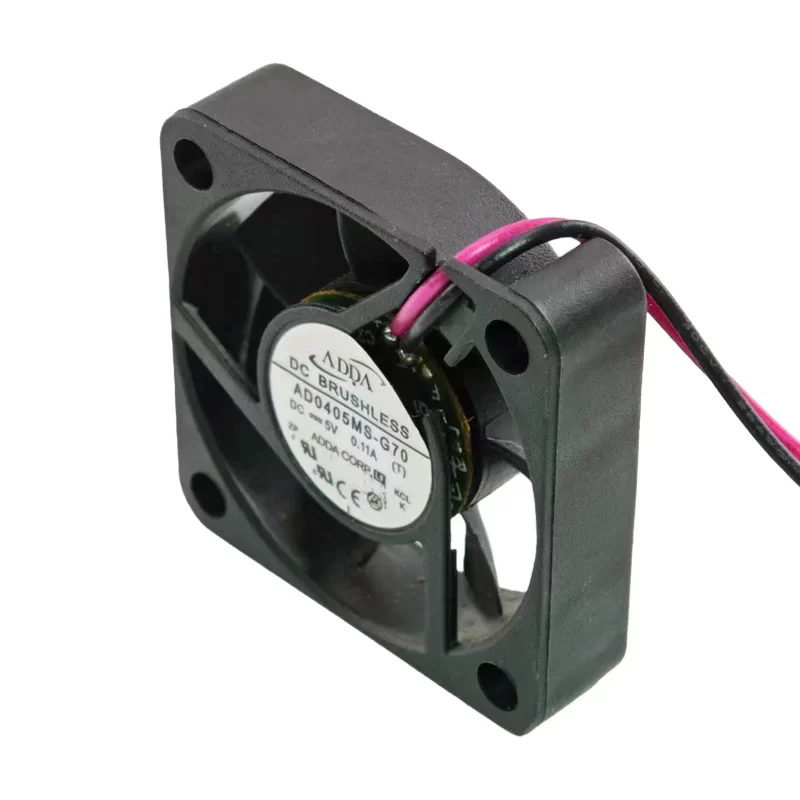

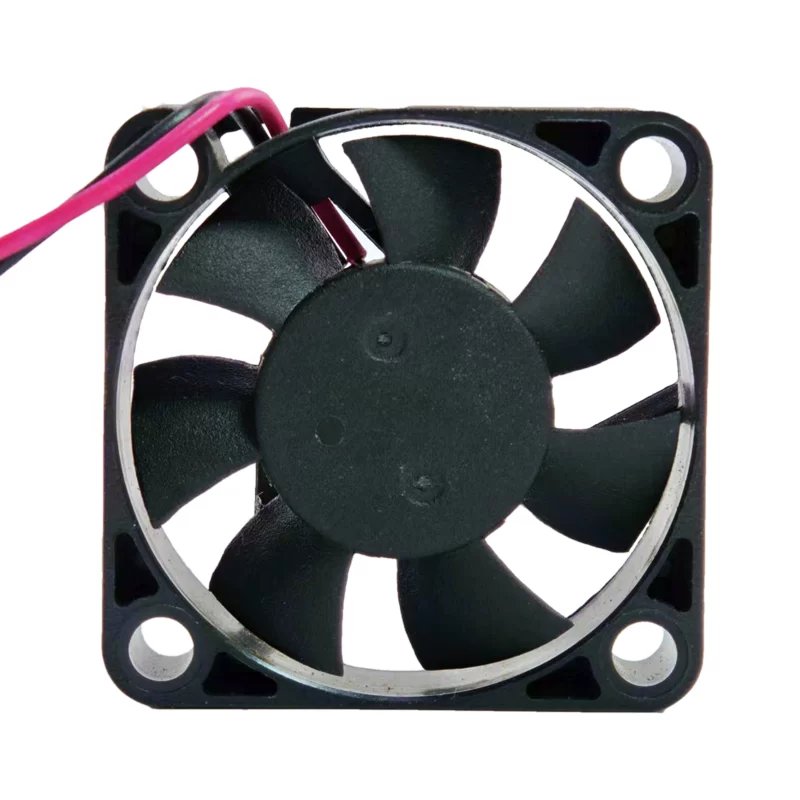

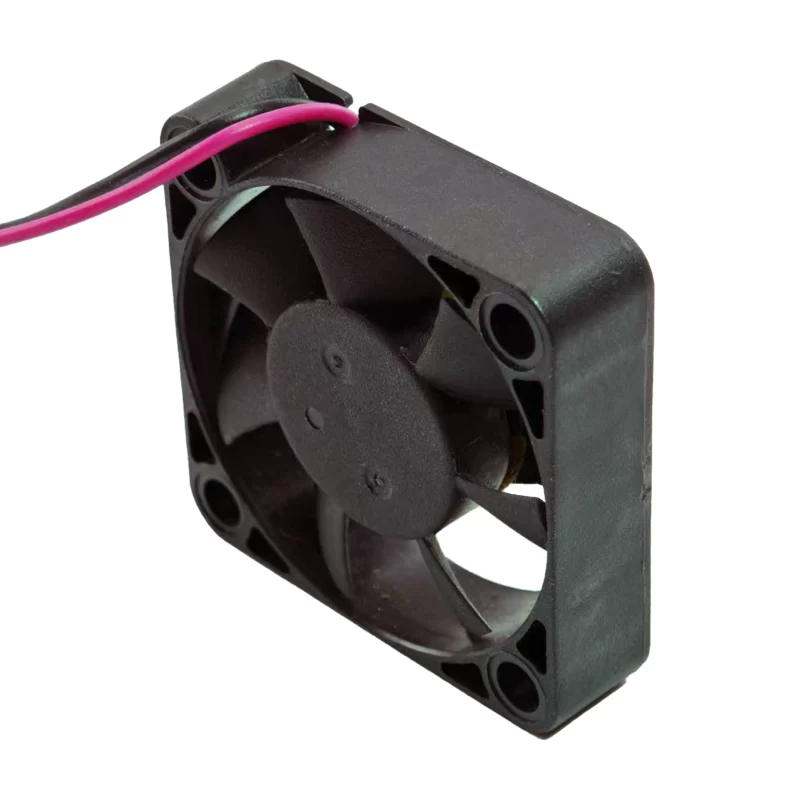

The ADDA AD0405MS-G70 is a high-performance DC Axial Fan with dimensions of 40×40×10 mm. Operating at 5 V, this Medium Speed fan has a Rated Current of 0.11 A and a Power Consumption of 0.55 W. It operates at a Nominal Speed of 4,800 RPM, delivering an Airflow of 9.68 m3/h (5.7 CFM) and Static Pressure of 19.4 Pa (0.078 inAq), with a Noise Level of 20.0 dB(A). It utilizes a Sleeve Bearing system and 2-Wire Leads.
AD0405MS-G70 Fan Parameters
Model: AD0405MS-G70
Manufacturer: ADDA
Type: DC Axial Fan
Dimensions: 40×40×10 mm
Operating Voltage: 5 V
Rated Current: 0.11 A
Power Consumption: 0.55 W
Nominal Speed: 4,800 RPM
Airflow: 9.68 m3/h (5.7 CFM)
Static Pressure: 19.4 Pa (0.078 inAq)
Noise Level: 20.0 dB(A)
Bearing Type: Sleeve Bearing
Motor Design: Brushless DC Motor
Weight: 24 g
Termination: 2-Wire Leads
Number of blades: 7
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Safety Approvals: UL, cUL, TUV, CE
Application
The AD0405MS-G70 is a compact and quiet 5 V fan designed for cooling low-power electronics in small spaces. Its 10 mm thin profile makes it suitable for mini-ITX cases, network routers, small embedded devices, and any application powered by a USB or low-voltage rail where noise reduction is a priority.
