Description

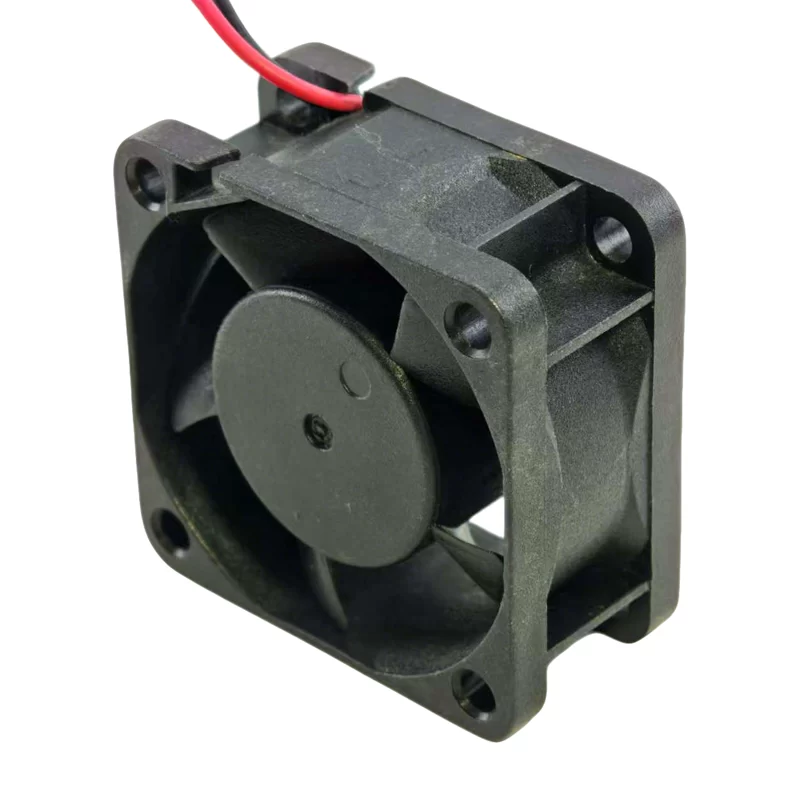

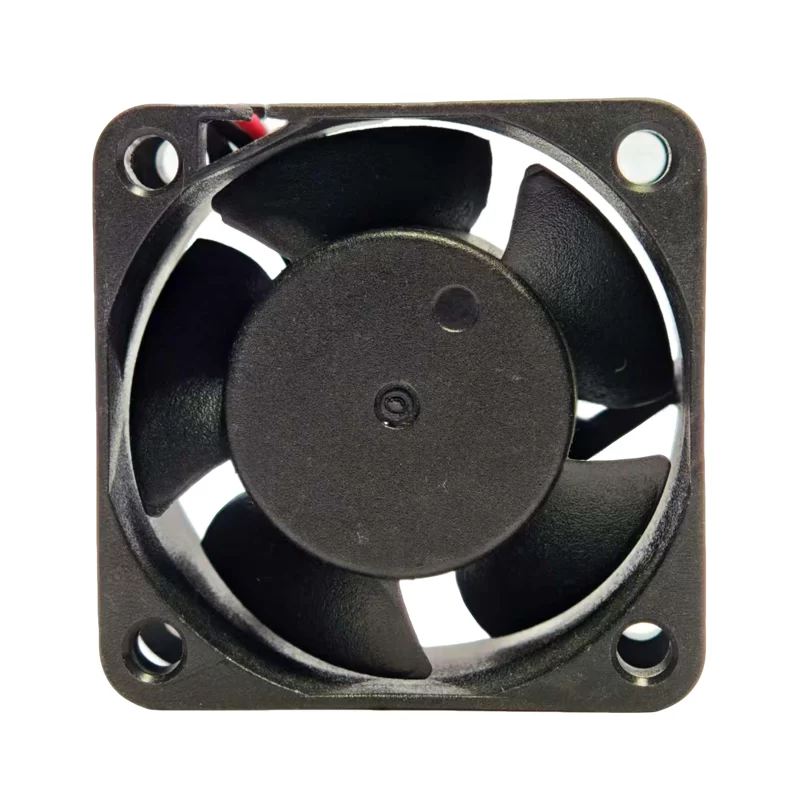

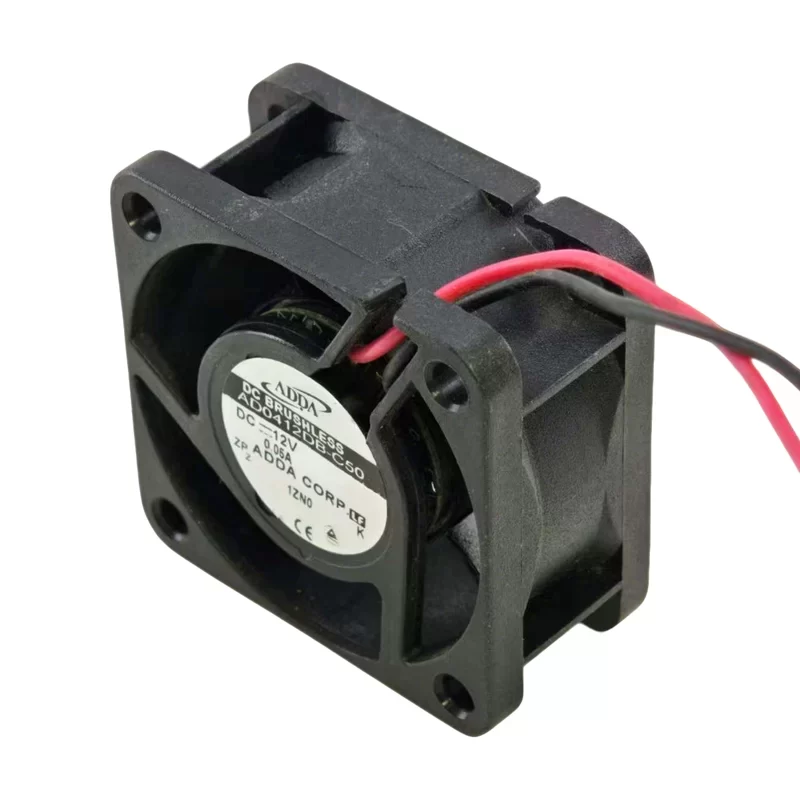

The ADDA AD0412DB-C50 is a DC axial fan with dimensions of 40 x 40 x 20 mm. It operates on 12V DC, drawing 0.05 A of current and consuming 0.6 W of power. This fan utilizes ball bearings for reliability and is terminated with two-wire leads. It is constructed from thermoplastic materials and operates within a temperature range of -10 °C to 70 °C.
AD0412DB-C50 Fan Parameters
Manufacturer: ADDA
Model: AD0412DB-C50
Fan Type: DC Axial Fan
Dimensions: 40 x 40 x 20 mm
Rated Voltage: 12V DC
Current Rating: 0.05 A
Power Consumption: 0.6 W
Bearing Type: Ball bearing
Termination: 2-Wire Leads
Housing Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10 °C to 70 °C
Application
The AD0412DB-C50 fan is suitable for cooling applications in compact electronic devices, servers, network equipment, and other small enclosures where space is limited and effective airflow is required.
