Description

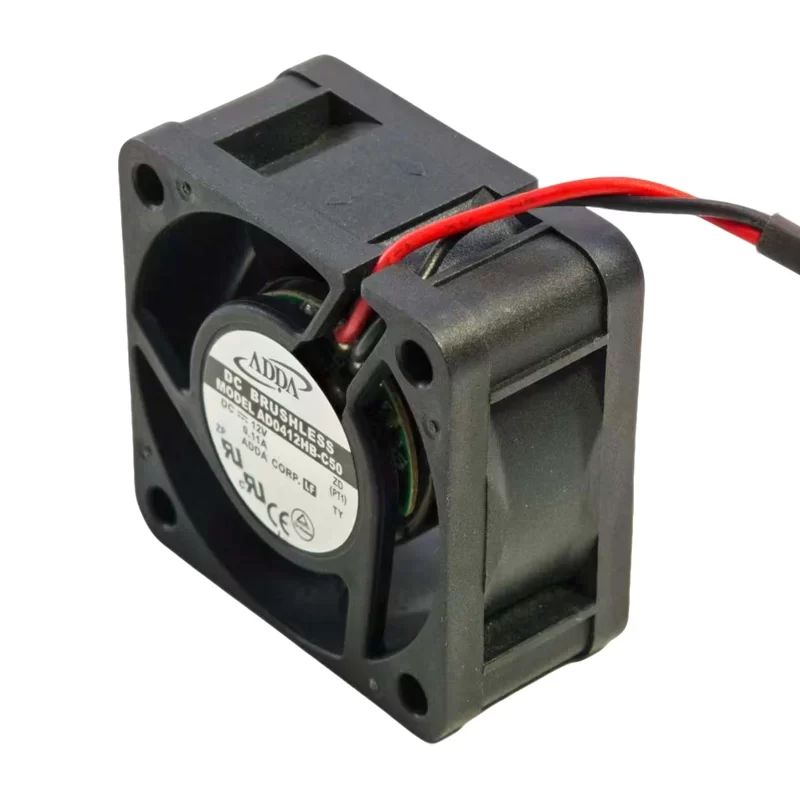

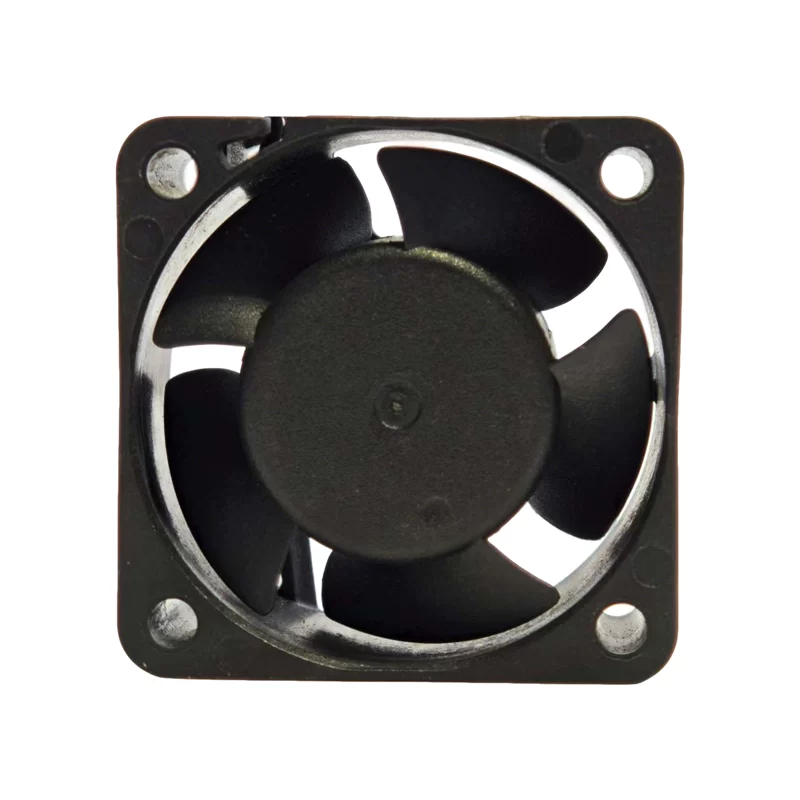

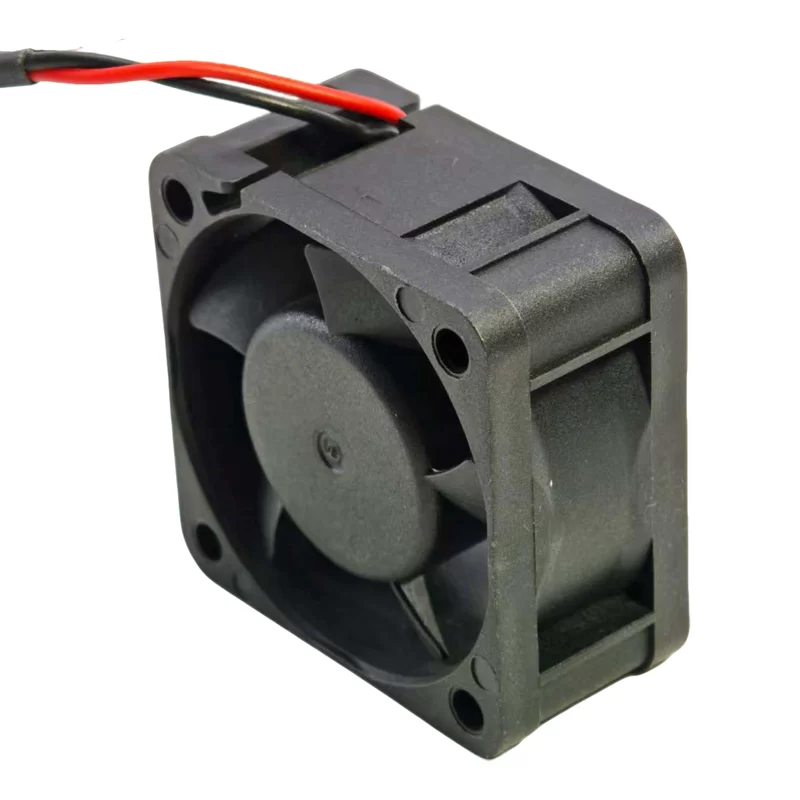

The ADDA AD0412HB-C50 is a compact DC axial fan with dimensions of 40 x 40 x 20 mm. It operates on 12V DC, drawing 0.11 A of current and consuming 1.2 W of power. The fan provides an airflow of 10.1 CFM (17.2 m³/h) and generates a static pressure of 6.6 mmAq (64.7 Pa). It runs at a speed of 7800 RPM with a noise level of 31.9 dB(A). The fan uses ball bearings for enhanced durability and features two-wire leads. This fan is ideal for cooling in compact electronic devices requiring moderate static pressure.
AD0412HB-C50 Fan Parameters
Manufacturer: ADDA Corporation
Model: AD0412HB-C50
Fan Type: DC Axial Fan
Dimensions: 40 x 40 x 20 mm
Rated Voltage: 12V DC
Current Rating: 0.11 A
Power Consumption: 1.2 W
Airflow: 10.1 CFM (17.2 m³/h)
Static Pressure: 6.6 mmAq (64.7 Pa)
Speed: 7800 RPM
Noise Level: 31.9 dB(A)
Bearing Type: Ball Bearing
Termination: Two Wire Leads
Housing Material: Thermoplastic (UL94V-0)
Impeller Material: Thermoplastic (UL94V-0)
Operating Temperature: -10 °C ~ 70 °C
Weight: 28 g
Application: The AD0412HB-C50 is a compact DC axial fan primarily used for inverter cooling. Its balance of airflow and static pressure makes it suitable for dissipating heat within variable speed drives, frequency converters, and other power electronics where space is limited. This fan is also applicable for cooling in other electronic devices that require effective thermal management.
