Description

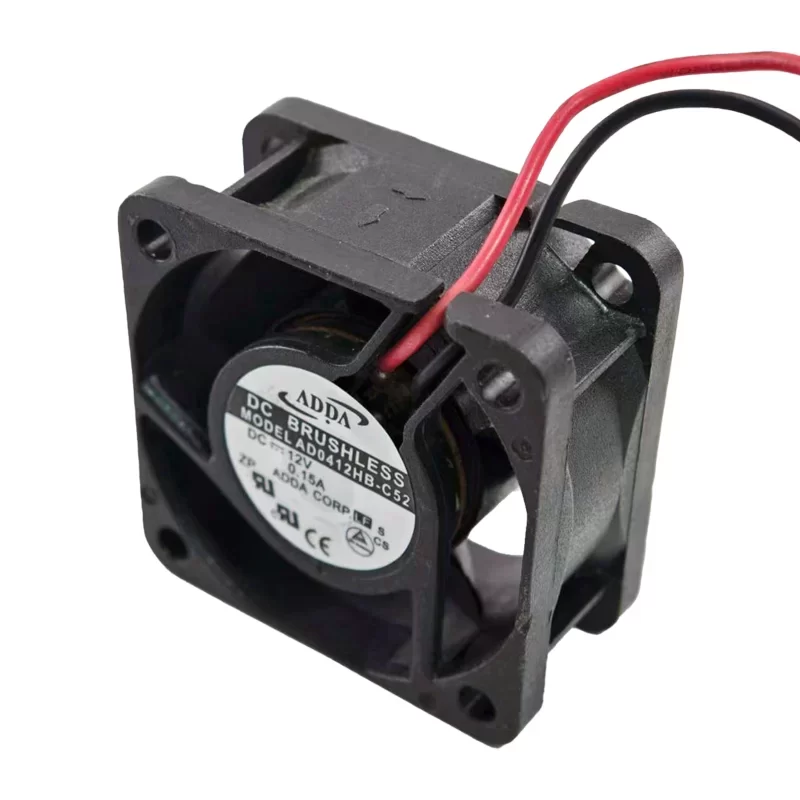

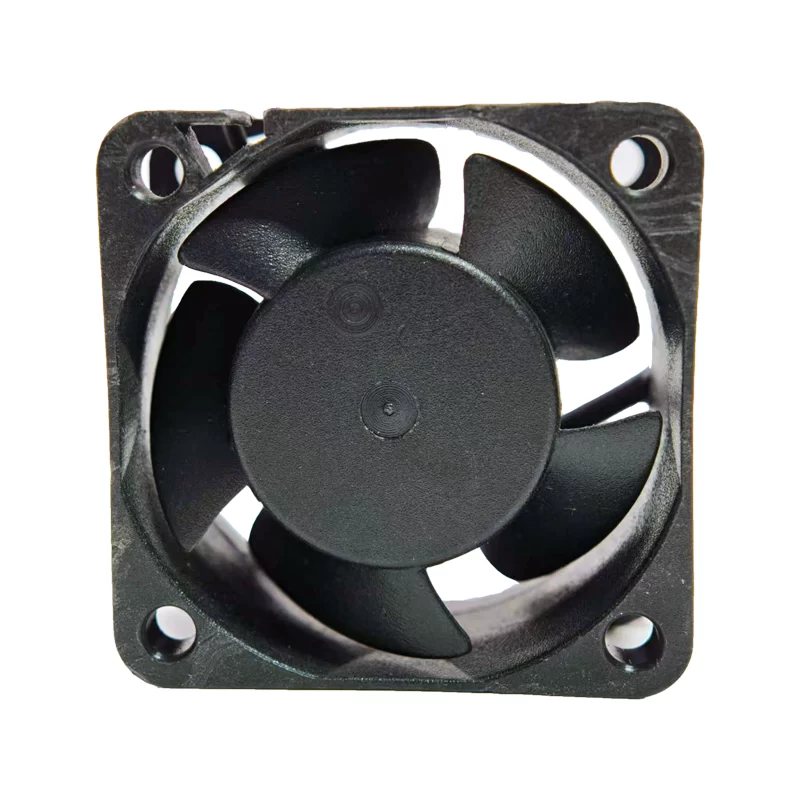

The ADDA AD0412HB-C52 is a high-performance DC Axial Fan with dimensions of 40×40×20 mm. This High Speed model operates on a 12 VDC Rated Voltage with a Rated Current of 0.15 A, resulting in a Rated Input Power of 1.8 W. It is equipped with a Ball Bearing system and a simple 2-wire electrical connection for basic power and ground operation. The fan achieves a Rated Speed of 7,800 RPM, delivering a powerful Airflow of 10.1 CFM (17.16 m3/h) and a high Static Pressure of 0.26 inAq. It is primarily designed for high-density electronic systems and server cooling where peak performance is needed without speed monitoring.
AD0412HB-C52 Fan Parameters
Model: AD0412HB-C52
Manufacturer: ADDA
Type: DC Axial Fan
Dimensions: 40×40×20 mm
Motor Design: Brushless DC Motor
Bearing Type: Ball Bearing
Rated Voltage: 12 VDC
Rated Current: 0.15 A
Rated Input: 1.8 W
Rated Speed: 7,800 RPM
Airflow: 10.1 CFM (17.16 m3/h)
Static Pressure: 0.26 inAq (6.6 mmAq)
Noise Level: 31.9 dB/A
Weight: 28.3 g
Number of blades: 5
Operating Voltage Range: 10.8 VDC to 13.2 VDC
Frame Material: Plastic (P.B.T., UL94V-0)
Impeller Material: Plastic (P.B.T., UL94V-0)
Termination: 2-Wire Leads
Life Expectancy: 50,000 h (at 40 ∘C)
Safety Approval: UL, CUL, CE
Application
The AD0412HB-C52 is a specialized fan used for cooling microprocessors, chipsets, or power modules in confined spaces. Its high-performance design is ideal for network routers, mini servers, and embedded systems that require maximum air moving capability without relying on external speed feedback.
