Description

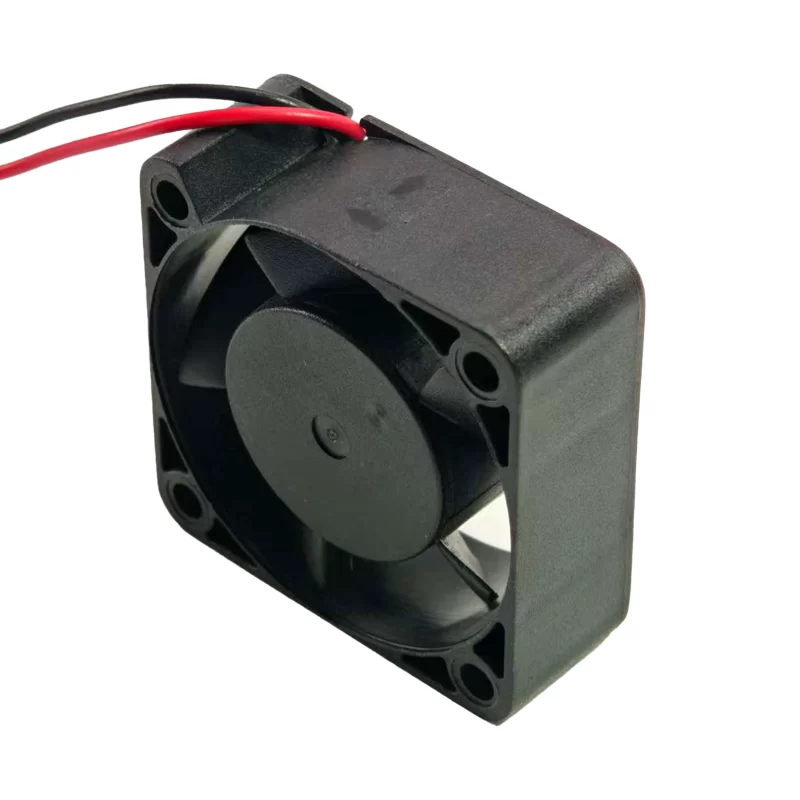

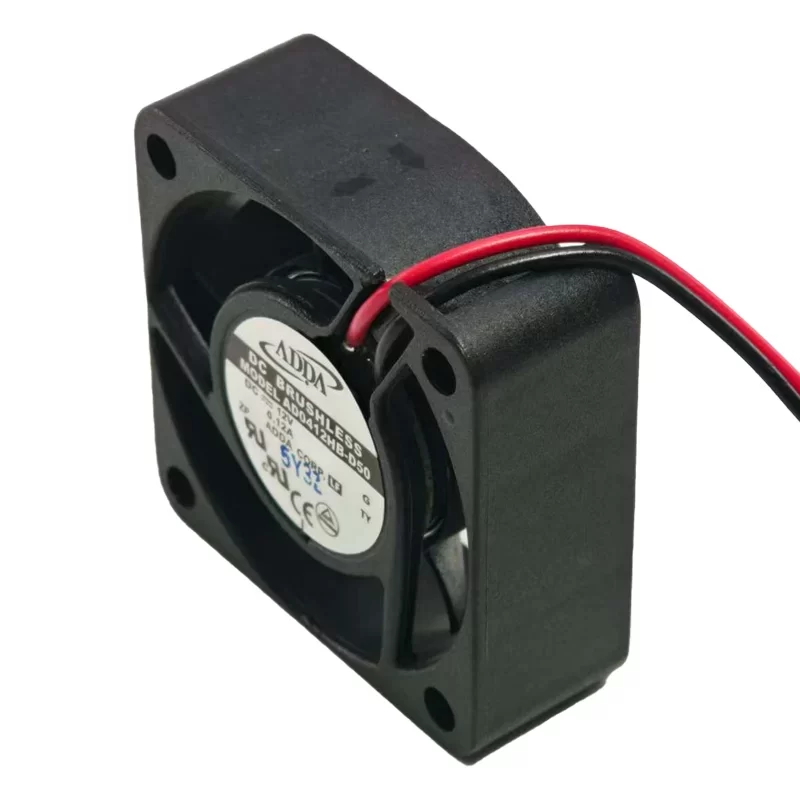

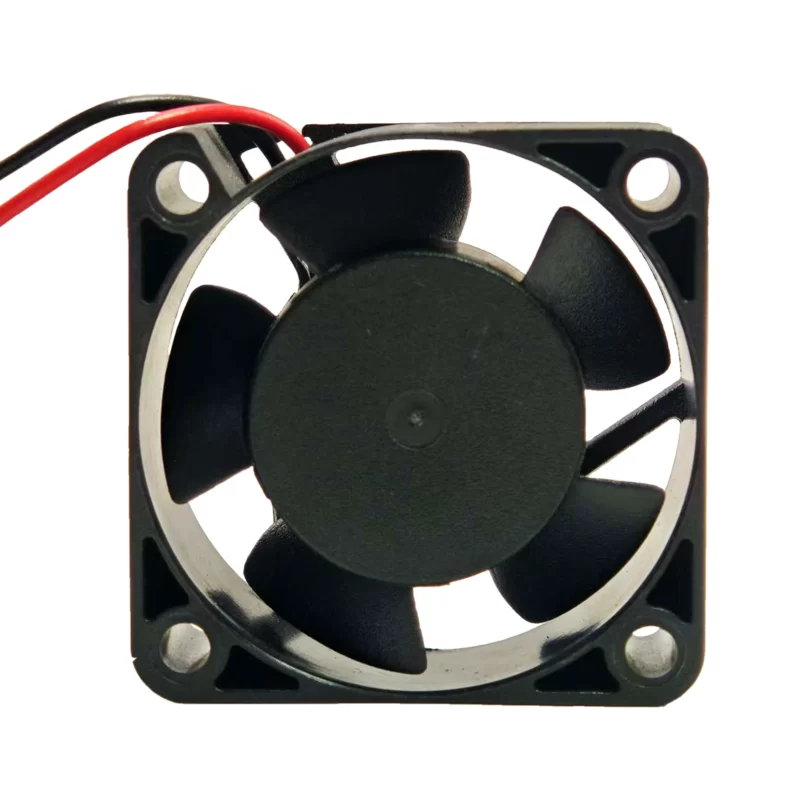

The ADDA AD0412HB-D50 is a high-performance DC Axial Fan with dimensions of 40×40×15 mm. Operating at 12 V, this High Speed model has a Rated Current of 0.12 A and Power Consumption of 1.44 W. It operates at a Nominal Speed of 8,000 RPM, providing an Airflow of 15.6 m3/h (9.2 CFM) and Static Pressure of 71.5 Pa (0.287 inAq), with a Noise Level of 39.3 dB(A). It features a Ball Bearing system, 5 blades, and relies on a 2-Wire Leads termination for direct power connection.
AD0412HB-D50 Fan Parameters
Model: AD0412HB-D50
Manufacturer: ADDA
Type: DC Axial Fan
Dimensions: 40×40×15 mm
Operating Voltage: 12 V
Rated Current: 0.12 A
Power Consumption: 1.44 W
Nominal Speed: 8,000 RPM
Airflow: 15.6 m3/h (9.2 CFM)
Static Pressure: 71.5 Pa (0.287 inAq)
Noise Level: 39.3 dB(A)
Bearing Type: Ball Bearing
Motor Design: Brushless DC Motor
Number of blades: 5
Termination: 2-Wire Leads
Weight: 27 g
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Operating Temperature: −10 ∘C to +70 ∘C
Life Expectancy: 70,000 hours
Safety Approvals: UL, cUL, CE
Application
The AD0412HB-D50 is a compact and efficient cooling solution, perfectly suited for high-density thermal management in space-constrained electronic devices such as 1U network switches, small servers, mini PC systems, and industrial automation control units that require high static pressure performance.
