Description

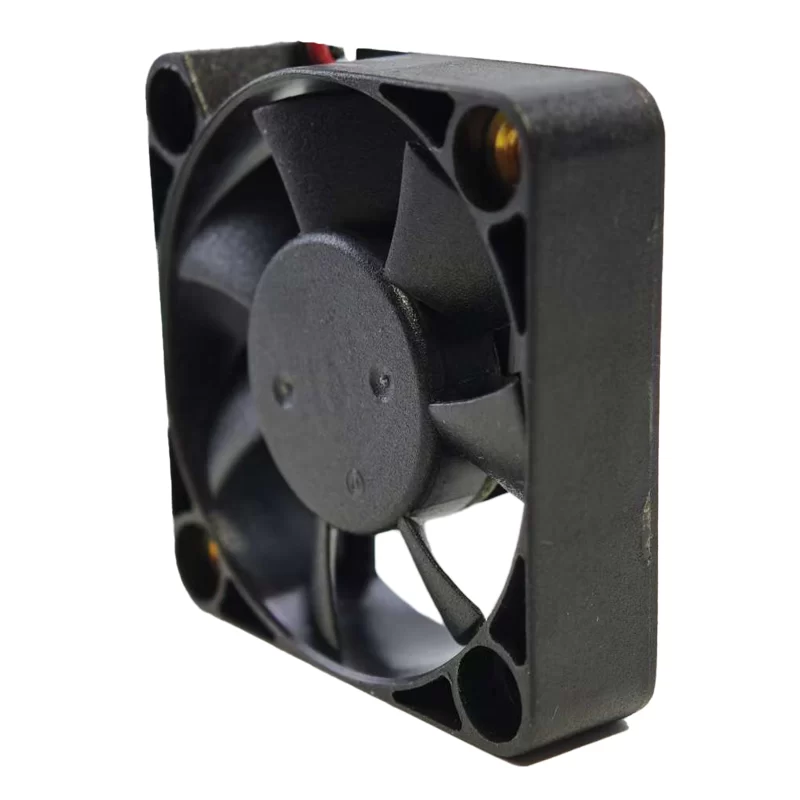

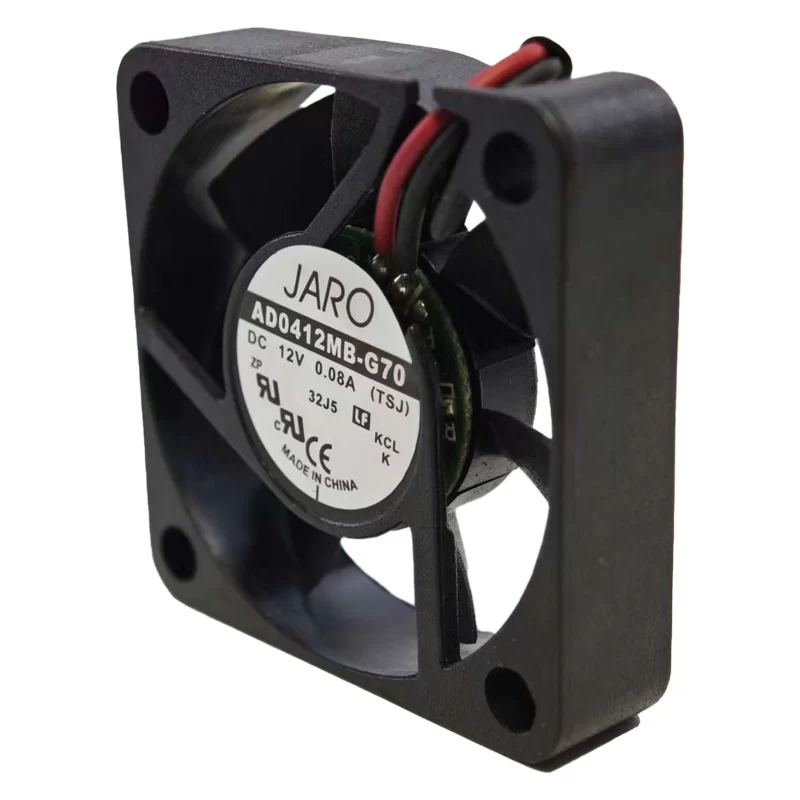

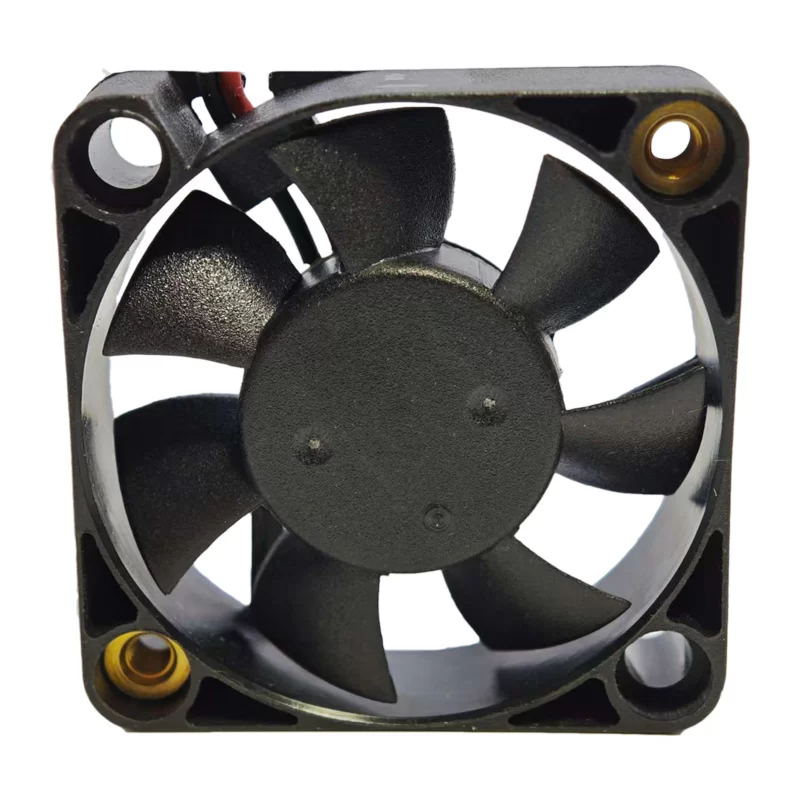

The ADDA AD0412MB-G70 is a compact and quiet 12V DC axial fan measuring 40x40x10mm. Designed with a ball bearing system, it offers a long and reliable operational lifespan. This fan provides a modest airflow of 4.7 to 5.9 CFM with a very low noise level of 22 to 24 dBA, making it highly suitable for applications where space is severely limited and quiet operation is crucial. Common uses include cooling components in small electronic devices, 1U rackmount servers, network equipment, and other embedded systems where efficient and unobtrusive heat dissipation is required.
Model: AD0412MB-G70
Manufacturer: ADDA Corporation
Type: DC Axial Fan
Dimensions: 40mm x 40mm x 10mm
Nominal Voltage: 12V DC
Current: 0.08A
Power Consumption: 0.96W
Speed: 4800 RPM to 5000 RPM
Airflow: 4.7 CFM to 5.9 CFM
Static Pressure: 0.078 In H2O to 0.080 In H2O
Noise Level: 22 dBA to 24 dBA
Bearing Type: Ball Bearing
Termination: 2-wire leads
Life Expectancy: 50,000 to 70,000 hours at 40°C
Frame and Blade Material: Thermoplastic PBT (UL 94V-0 flame rating)
Features: Auto-Restart, Locked Rotor Protection (by IC)
Safety Approvals: UL, cUL, TUV, CE
