Description

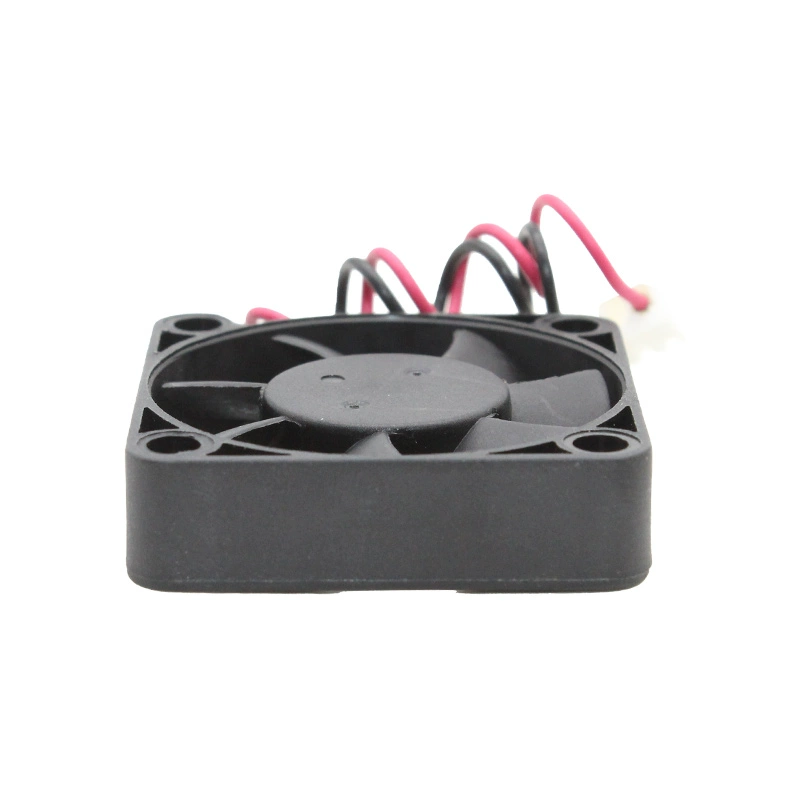

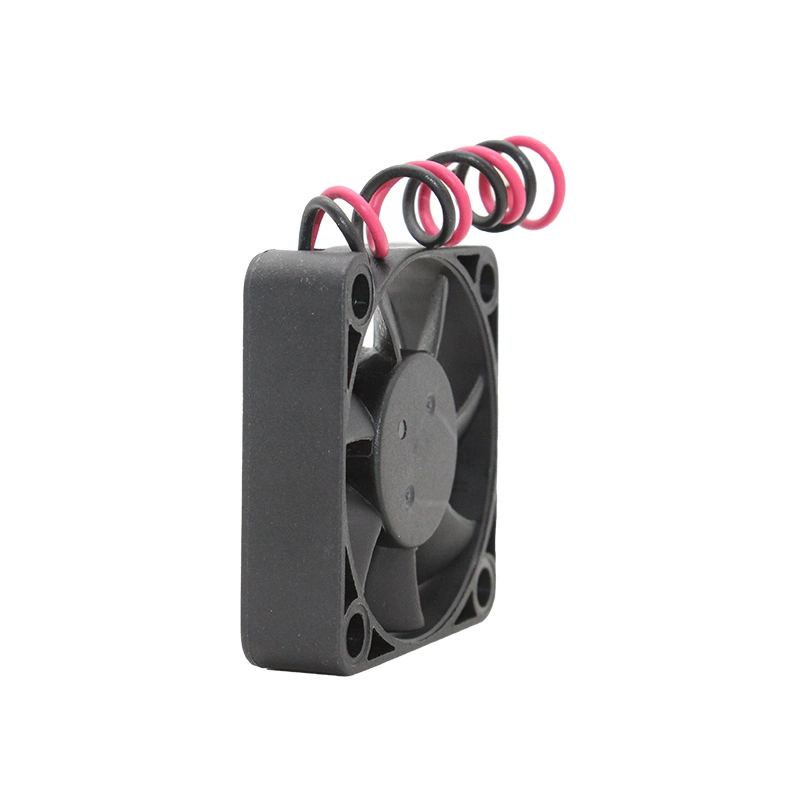

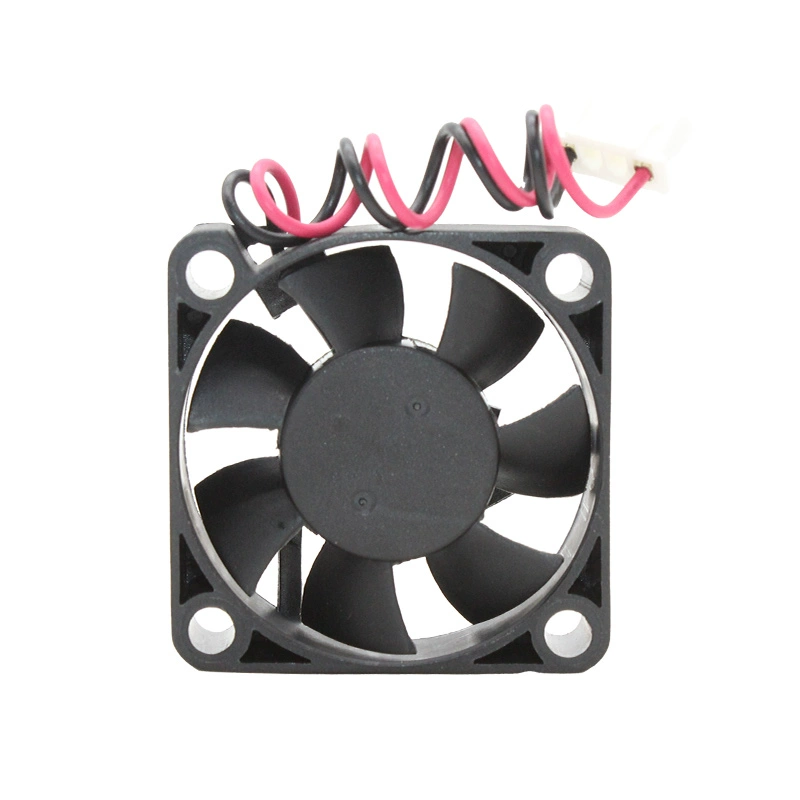

The ADDA AD0412MS-G70 is a compact 12V DC axial cooling fan from ADDA Corporation, measuring 40mm x 40mm x 10mm. Operating at a rated current of 0.08A (0.96W), this fan is designed for efficient cooling in space-constrained electronic applications, such as graphics cards or small embedded systems. It achieves a speed of 4800 RPM, delivering 5.7 CFM of airflow and a static pressure of 0.078 inch-H2O, while maintaining a very low noise level of 20.0 dBA. Equipped with a sleeve bearing, it offers a reliable operational life of 60,000 to 70,000 hours. The fan utilizes 2-wire leads for power connection and includes features such as motor protection, polarity protection, and auto-restart, making it a dependable choice for quiet and consistent thermal management.
Model Number: AD0412MS-G70
Manufacturer: ADDA Corporation
Type: DC Axial Cooling Fan
Dimensions: 40mm x 40mm x 10mm
Rated Voltage: 12V DC
Rated Current: 0.08A
Rated Power: 0.96W
Speed: 4800 RPM
Airflow: 5.7 CFM / 0.16 m³/min
Static Pressure: 0.078 inch-H2O / 19.4 Pa
Noise Level: 20.0 dBA
Connector: 2-Wire Leads
Bearing Type: Sleeve Bearing
Life Expectancy: 60,000 to 70,000 hours (at 40°C)
Operating Temperature: -10°C to 70°C
Frame Material: Plastic (UL94V-0 Glass Filled Polyester)
Impeller Material: Plastic (UL94V-0 Glass Filled Polyester)
Features: Motor Protection, Polarity Protection, Auto Restart
