AD0412UB-C7BGP ADDA 12V DC Axial Fan

Description

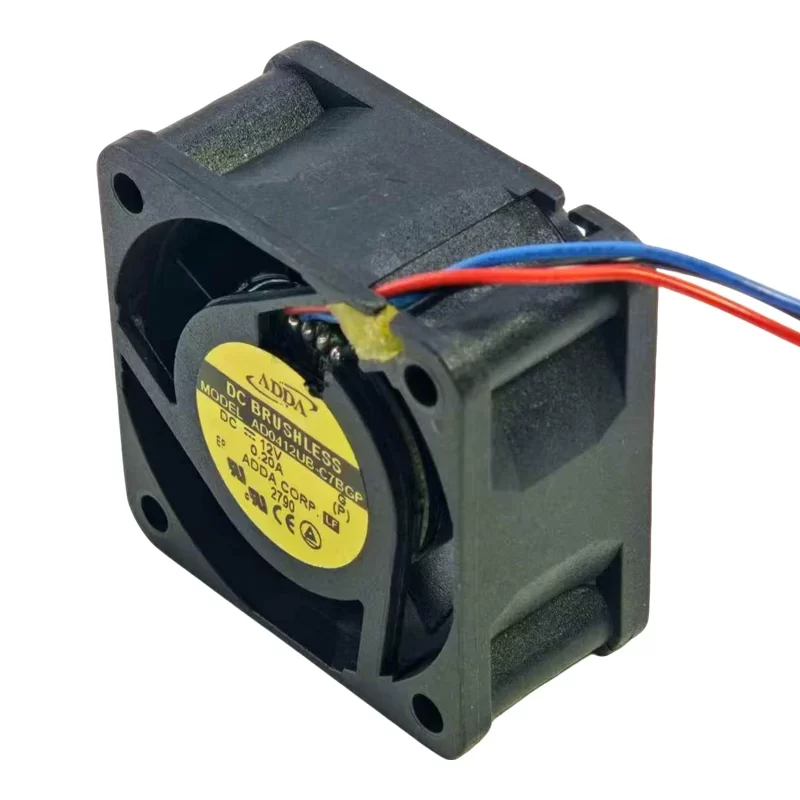

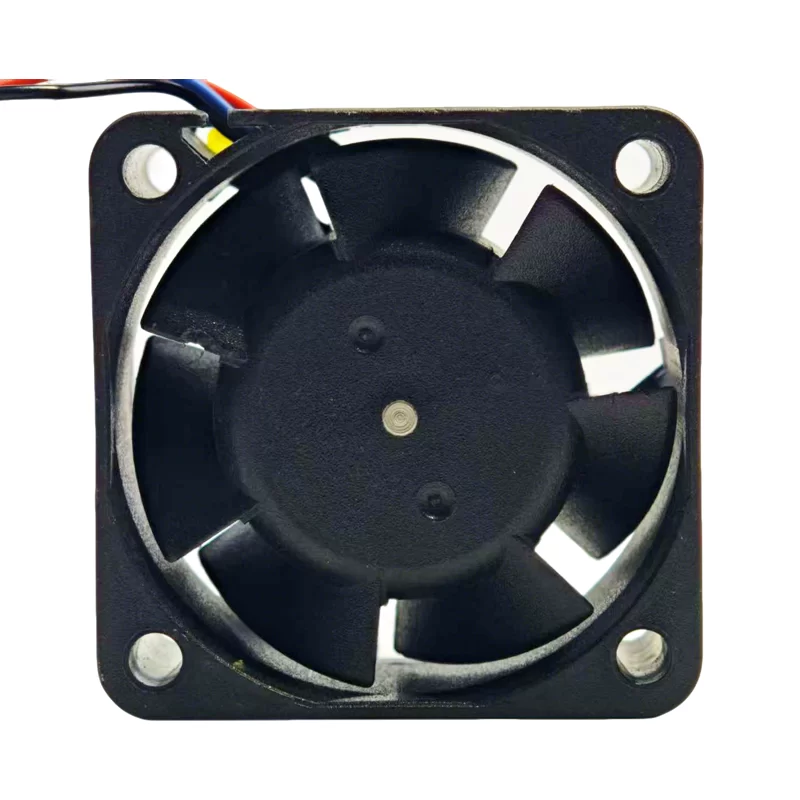

The ADDA AD0412UB-C7BGP is a DC axial fan with dimensions of 40 x 40 x 20 mm. It operates on 12V DC, drawing 0.20 A of current and consuming 2.40 W of power. This fan runs at a high speed of 7800 RPM, delivering an airflow of 11 CFM with a static pressure of 10.16 mmAq. It produces a noise level of 33 dBA. The fan utilizes ball bearings for reliability and is terminated with three-wire leads, which typically includes a tachometer signal for speed monitoring. It operates within a temperature range of -10 °C to 70 °C.

AD0412UB-C7BGP Fan Parameters
Manufacturer: ADDA
Model: AD0412UB-C7BGP
Fan Type: DC Axial Fan
Dimensions: 40 x 40 x 20 mm
Rated Voltage: 12V DC
Current Rating: 0.20 A
Power Consumption: 2.40 W
Airflow: 11 CFM
Static Pressure: 10.16 mmAq
Speed: 7800 RPM
Noise Level: 33 dBA
Bearing Type: Ball Bearing
Termination: 3-Wire Leads
Housing Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10 °C to 70 °C
Weight: 28 g

Application
The AD0412UB-C7BGP fan is suitable for compact electronic devices, embedded systems, computer components, and other applications that require precise thermal management and a small form factor.
