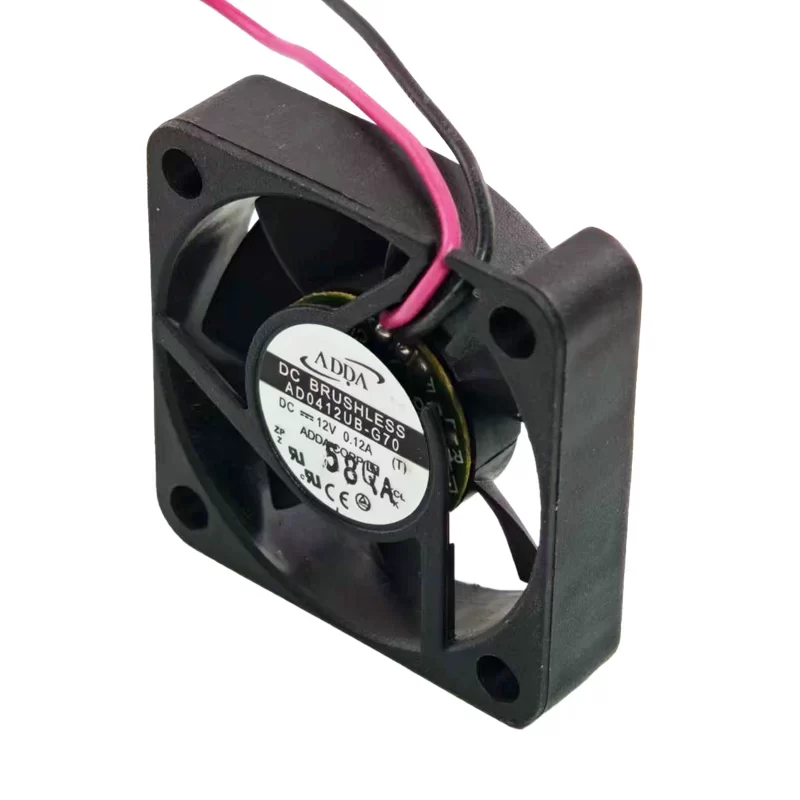

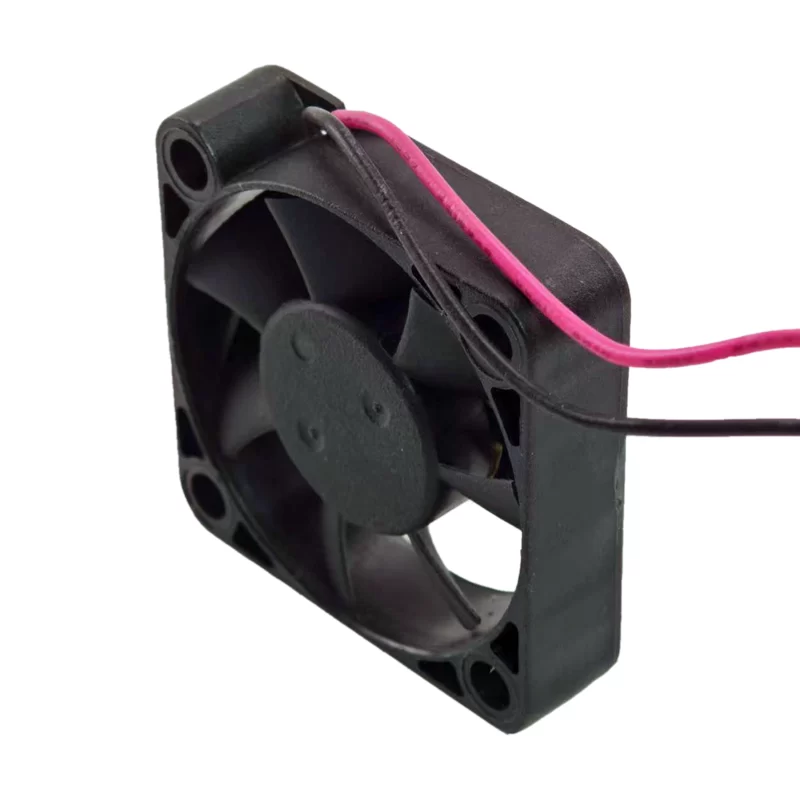

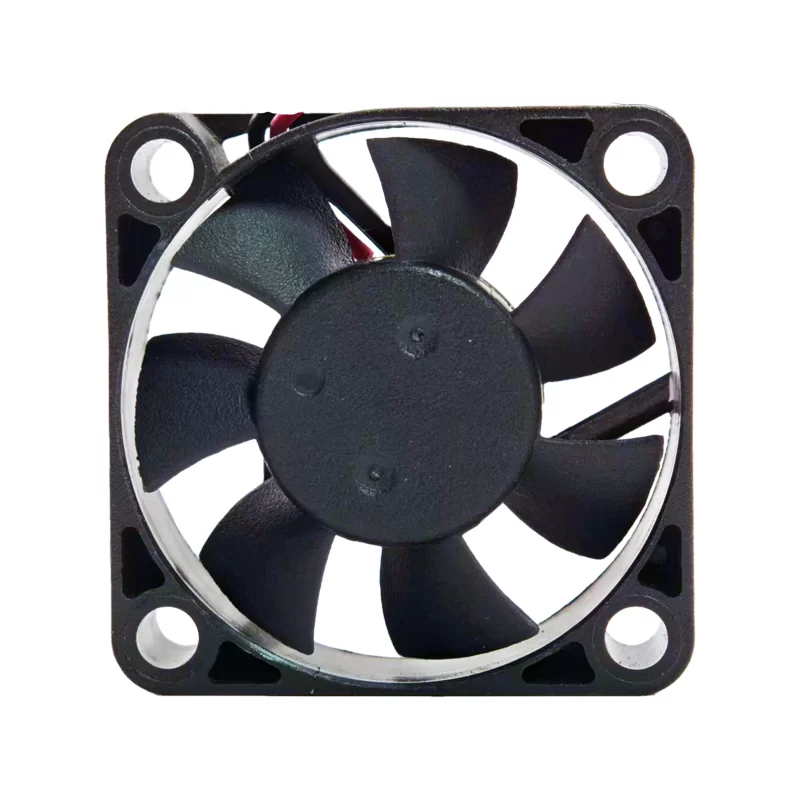

AD0412UB-G70 ADDA 12V DC Axial Fan

$9.99

SKU: AD0412UB-G70
Tag:

Description

The ADDA AD0412UB-G70 is an ultra-high-performance DC Axial Fan with dimensions of 40×40×10 mm. Operating at 12 V, this model has an updated Rated Current of 0.12 A and Power Consumption of 1.44 W. It operates at a Nominal Speed of 6,800 RPM, providing an Airflow of 13.4 m3/h (7.9 CFM) and Static Pressure of 32.1 Pa (0.129 inAq), with a lower Noise Level of 28 dB(A). This model features a Ball Bearing system and 7 blades, terminated with 2-Wire Leads.

AD0412UB-G70 Fan Parameters
Model: AD0412UB-G70
Manufacturer: ADDA
Type: DC Axial Fan
Dimensions: 40×40×10 mm
Operating Voltage: 12 V
Rated Current: 0.12 A
Power Consumption: 1.44 W
Nominal Speed: 6,800 RPM
Airflow: 13.4 m3/h (7.9 CFM)
Static Pressure: 32.1 Pa (0.129 inAq)
Noise Level: 28 dB(A)
Bearing Type: Ball Bearing
Motor Design: Brushless DC Motor
Number of blades: 7
Termination: 2-Wire Leads
Weight: 24 g
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Operating Temperature: −10 ∘C to +70 ∘C
Life Expectancy: 70,000 hours
Safety Approvals: CE

Application
The AD0412UB-G70 is an ideal choice for cooling components within ultra-compact or 1U environments, such as network routers, embedded industrial PCs, and SFF electronics, where its slim 10 mm profile and optimized airflow/static pressure balance are critical for efficient heat dissipation.
