Description

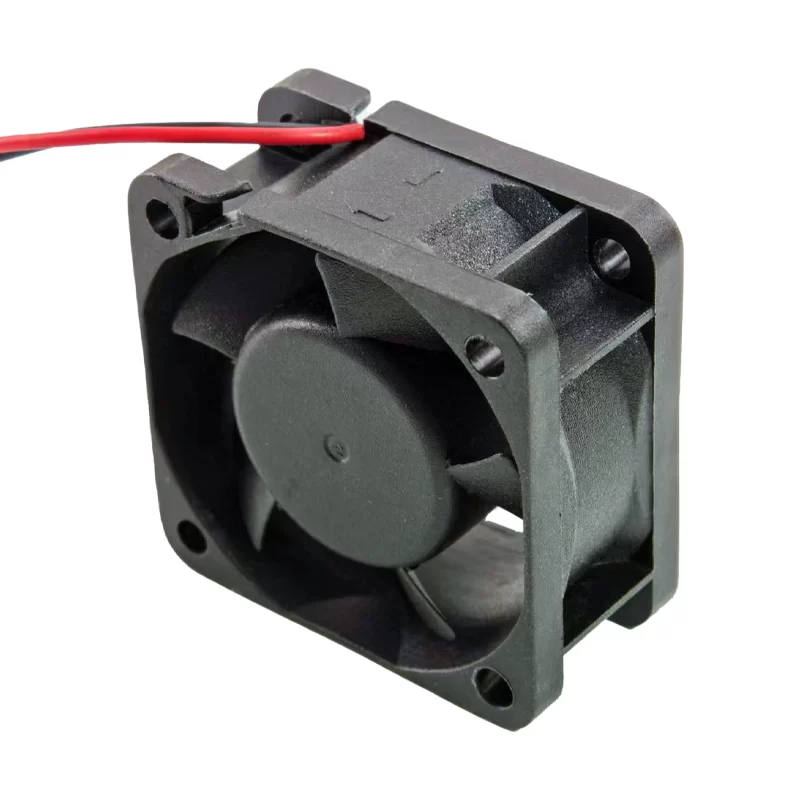

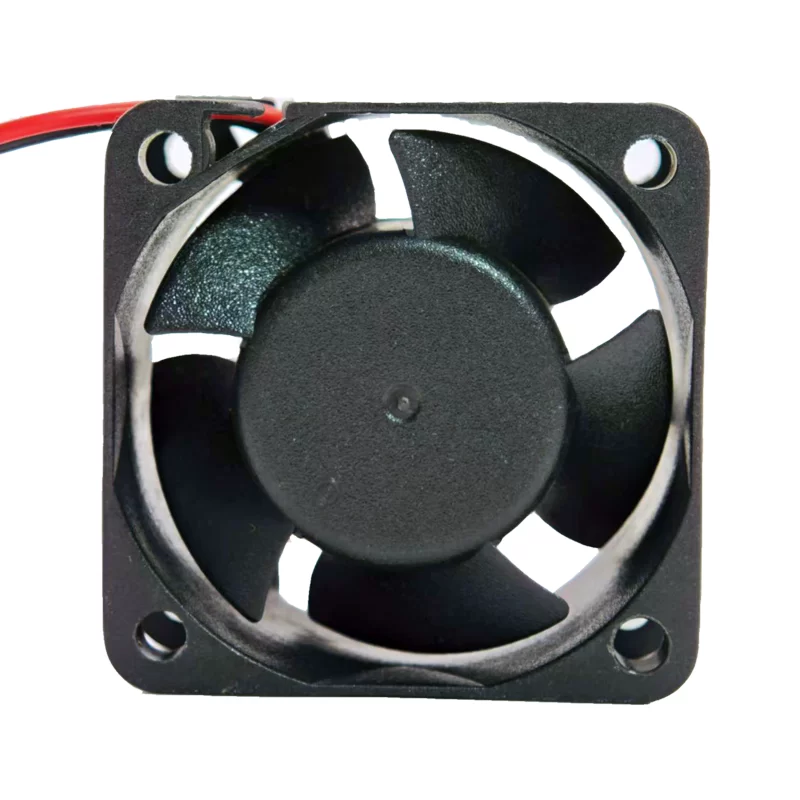

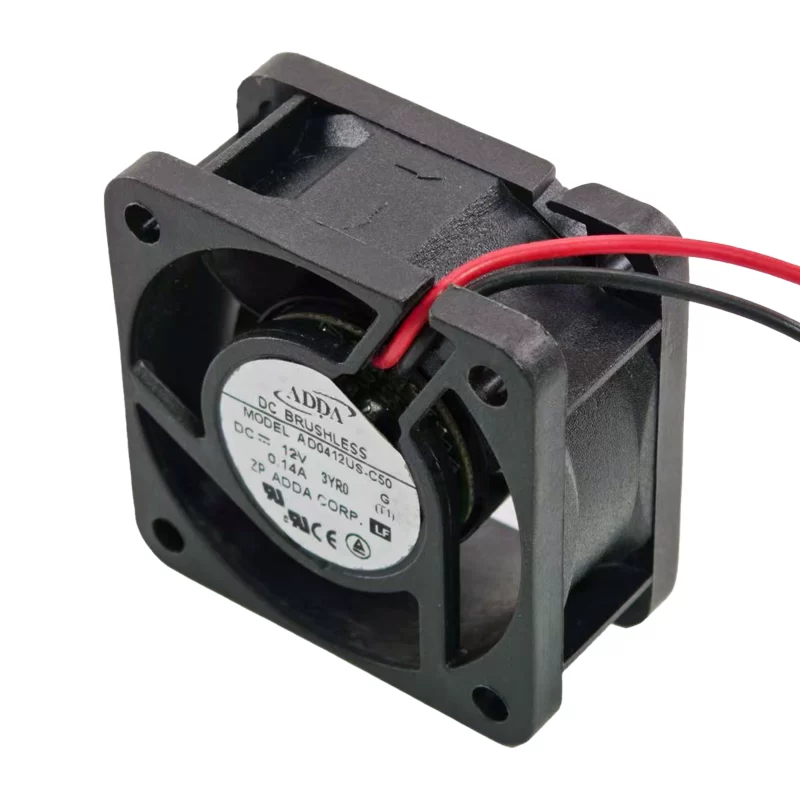

The ADDA AD0412US-C50 is a high-performance DC Axial Fan with dimensions of 40×40×20 mm. Operating at 12 VDC, this fan provides an airflow of 17.5 m3/h at a speed of 8200 RPM, while generating a maximum static pressure of 75.9 Pa and a noise level of 35.0 dBA. With a rated current of 0.14 A and 1.68 W power consumption, the fan features a Sleeve Bearing system and fire-resistant Plastic (UL94V-0) construction, making it ideal for cooling high-density compact electronic equipment.
AD0412US-C50 Fan Parameters
Model: AD0412US-C50
Manufacturer: ADDA Corporation
Fan Type: DC Axial Fan
Dimensions: 40×40×20 mm
Nominal Voltage: 12 VDC
Rated Current: 0.14 A
Rated Power: 1.68 W
Rated Speed: 8200 RPM
Airflow: 17.5 m3/h
Static Pressure: 75.9 Pa
Noise Level: 35.0 dBA
Number of blades: 5
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Bearing System: Sleeve Bearing
Termination Type: 2 Wires
Operating Temperature: −10∘C to +70∘C
Safety Approvals: UL, CUL, TUV, CE
Application
The AD0412US-C50 is typically used in space-constrained cooling applications requiring a high-speed 12V DC fan, such as networking equipment, compact servers, IT hardware, and small embedded systems.
