AD0412XB-G73 ADDA 12V DC Axial Fan

Description

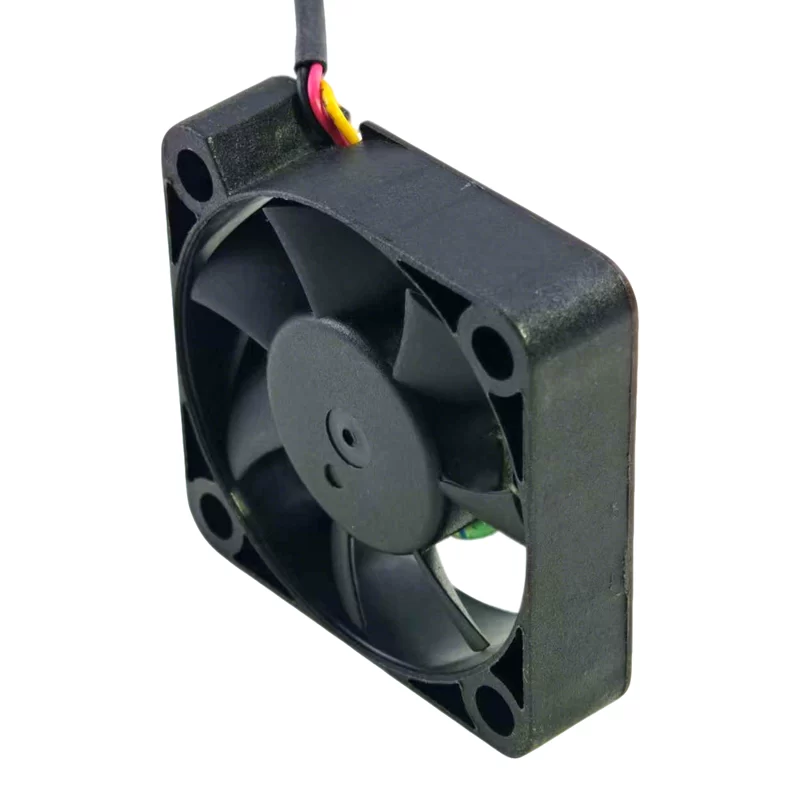

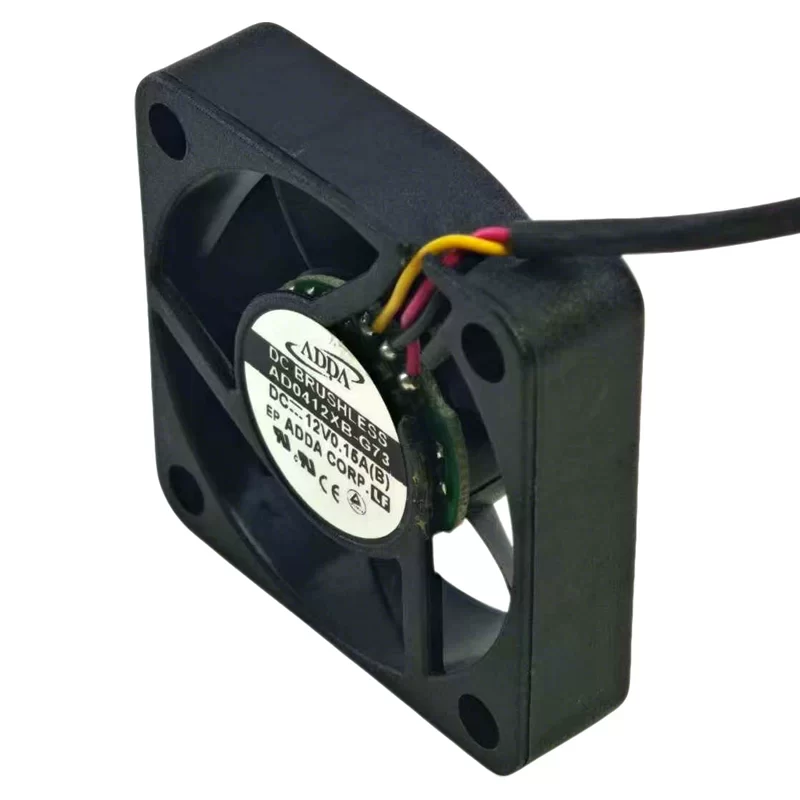

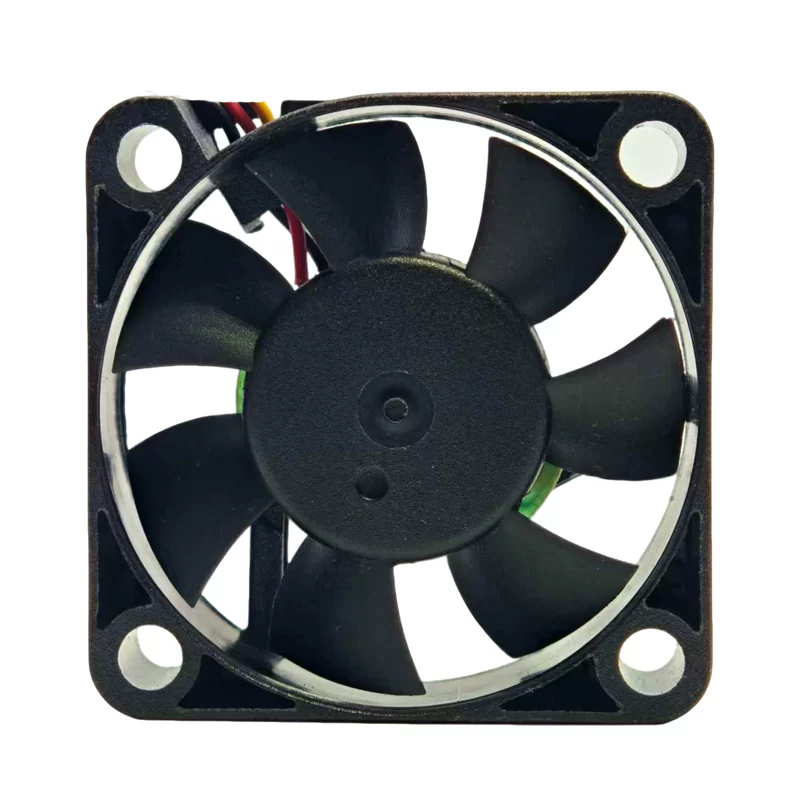

The ADDA AD0412XB-G73 is a DC axial fan with compact dimensions of 40 x 40 x 10 mm. It operates on 12V DC, drawing 0.15 A of current and consuming 1.8 W of power. This fan runs at a high speed of 8000 RPM, delivering an airflow of 11.2 CFM (19.03 m³/h) with a static pressure of 0.25 inch H₂O (62 Pa). It produces a noise level of 35 dB(A). The fan uses ball bearings for reliability and is terminated with three-wire leads, which typically includes a tachometer signal for speed monitoring. It operates within a temperature range of -10 °C to 70 °C.

AD0412XB-G73 Fan Parameters
Manufacturer: ADDA
Model: AD0412XB-G73
Fan Type: DC Axial Fan
Dimensions: 40 x 40 x 10 mm
Rated Voltage: 12V DC
Current Rating: 0.15 A
Power Consumption: 1.8 W
Airflow: 11.2 CFM (19.03 m³/h)
Static Pressure: 0.25 inch H₂O (62 Pa)
Speed: 8000 RPM
Noise Level: 35 dB(A)
Bearing Type: Ball Bearing
Termination: 3-Wire Leads
Housing Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10 °C to 70 °C

Application
The AD0412XB-G73 fan is suitable for applications requiring compact, high-speed cooling, such as in miniature electronics, small appliances, computer components, and embedded systems where space is limited.
