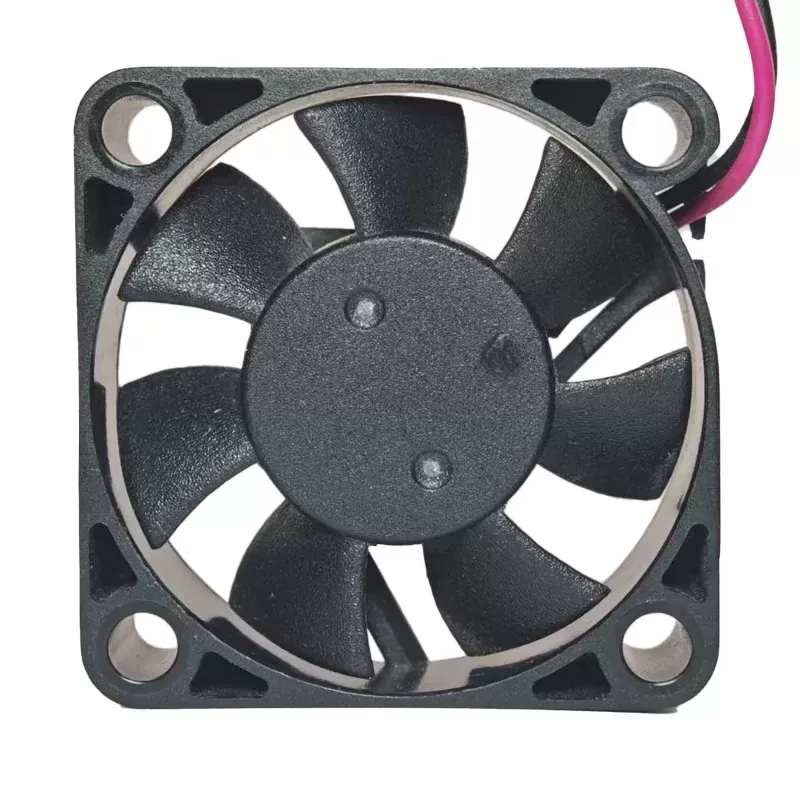

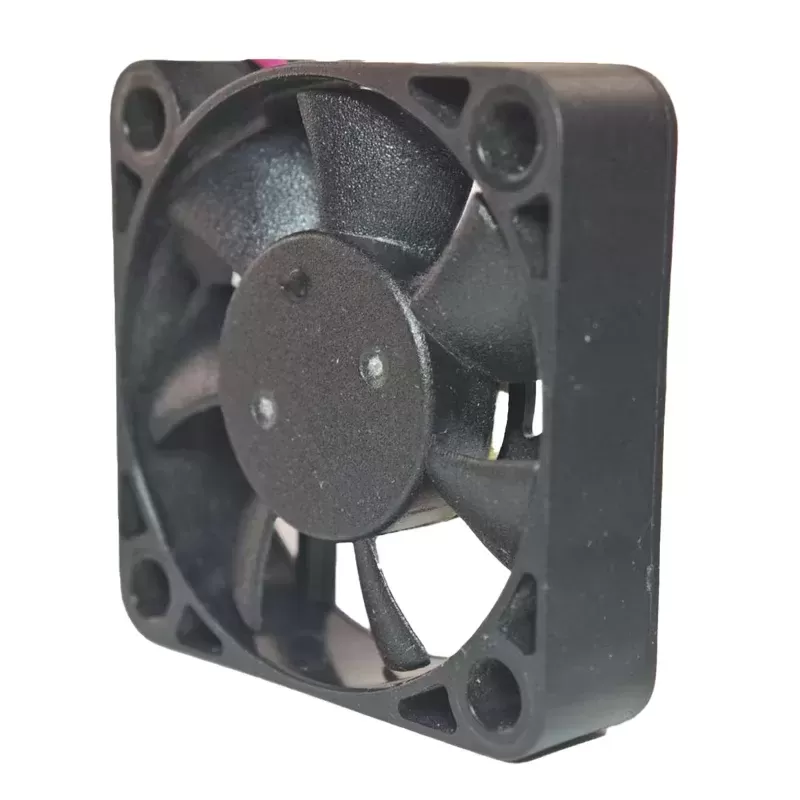

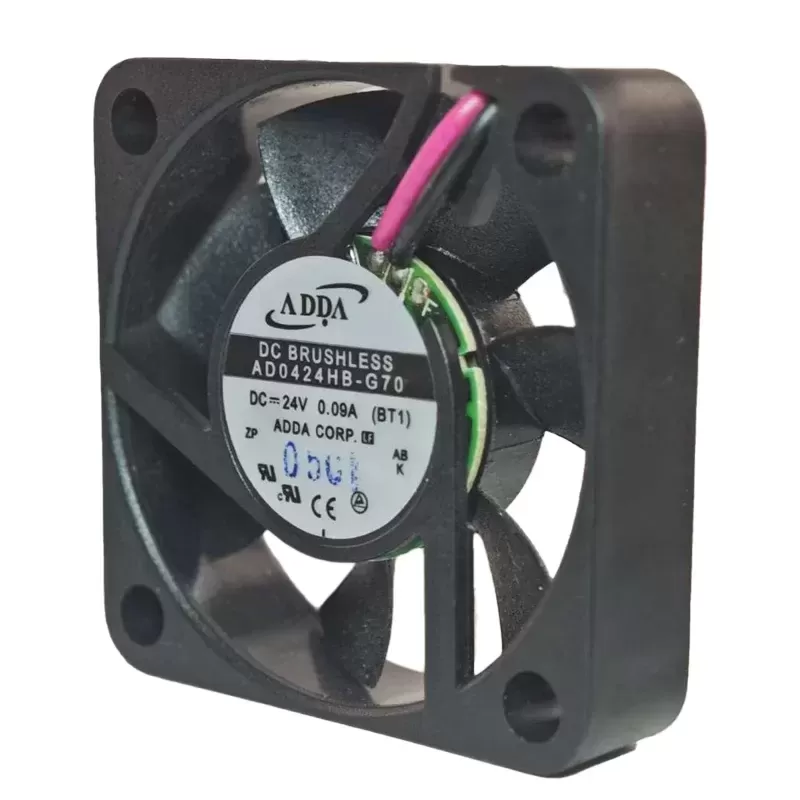

AD0424HB-G70 ADDA 24V 0.09A DC axial fan

Description

The ADDA AD0424HB-G70 is a compact and efficient 24V DC axial fan, measuring 40mm x 40mm x 10mm, manufactured by ADDA Corporation. This fan is designed for reliable cooling in various space-constrained electronic applications. It features durable ball bearings, contributing to a long operational lifespan of 50,000 hours at 25°C. Drawing 0.09A of current, it consumes 2.16W of power. This fan operates at 6000 RPM, delivering 6.7 CFM of airflow and generating 0.10 inches of H2O static pressure, with a quiet 25 dBA noise level. Equipped with 2-wire leads, the ADDA AD0424HB-G70 is an excellent choice for cooling components in small embedded systems, networking equipment, security cameras, and other compact electronics that require effective and quiet thermal management.
ADDA AD0424HB-G70 new original ADDA fan 4010 24V 0.09A cooling fan
Model: AD0424HB-G70
Manufacturer: ADDA Corporation
Type: DC Axial Fan
Dimensions: 40mm x 40mm x 10mm
Nominal Voltage: 24V DC
Operating Voltage Range: 21.6V to 26.4V DC
Current: 0.09A
Power Consumption: 2.16W
Speed: 6000 RPM
Airflow: 6.7 CFM
Static Pressure: 0.10 In H2O
Noise Level: 25 dBA
Bearing Type: Ball Bearing
Life Expectancy: 50,000 Hours (at 25°C)
Termination: 2-wire leads
Frame Material: Plastic
Impeller Material: Plastic
Features: Brushless DC motor, polarity protected, impedance protected.
