Description

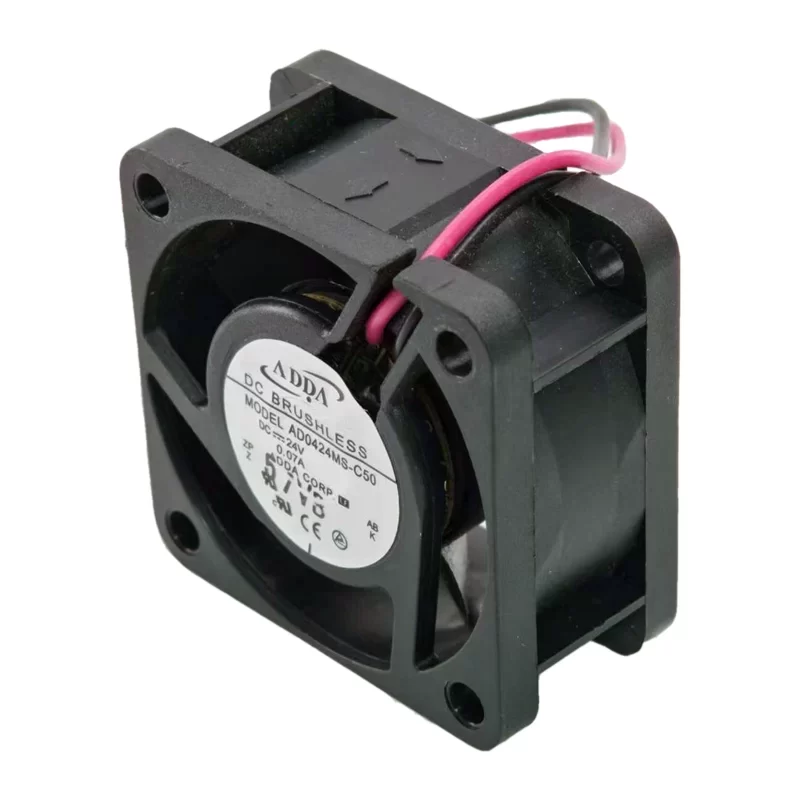

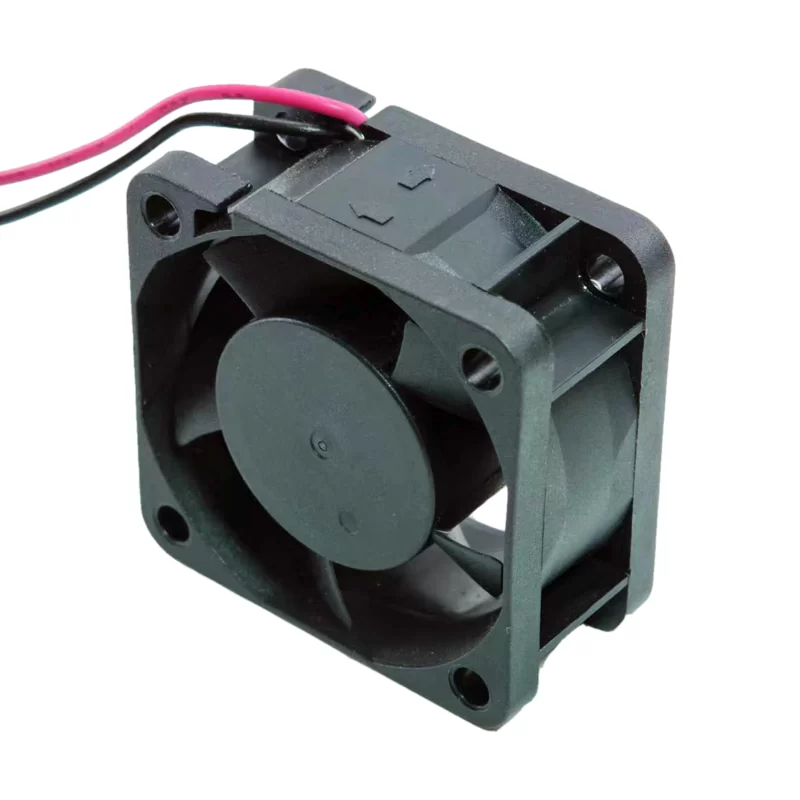

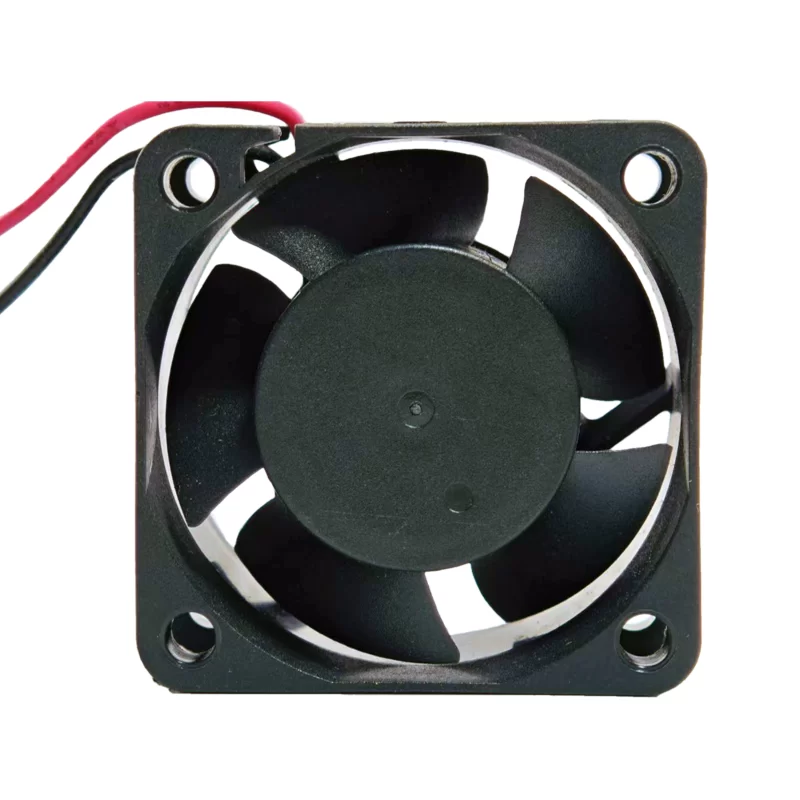

The ADDA AD0424MS-C50 is a high-performance DC Axial Fan with dimensions of 40×40×20 mm. Operating at 24 V, this Medium Speed fan has a Rated Current of 0.07 A and a Power Consumption of 1.68 W. It utilizes a Sleeve Bearing system and operates at a Nominal Speed of 6,700 RPM. It delivers an Airflow of 14.1 m3/h (8.3 CFM) and Static Pressure of 44.5 Pa (0.180 inAq), with a Noise Level of 27.5 dB(A).
AD0424MS-C50 Fan Parameters
Model: AD0424MS-C50
Manufacturer: ADDA
Type: DC Axial Fan
Dimensions: 40×40×20 mm
Operating Voltage: 24 V
Voltage Range: 14.4 V to 27.6 V
Rated Current: 0.07 A
Power Consumption: 1.68 W
Nominal Speed: 6,700 RPM
Airflow: 14.1 m3/h (8.3 CFM)
Static Pressure: 44.5 Pa (0.180 inAq)
Noise Level: 27.5 dB(A)
Bearing Type: Sleeve Bearing
Termination: 2-Wire Leads
Weight: 28 g
Operating Temperature: −10 ∘C to +70 ∘C
Life Expectancy: 30,000 hours (at 40 ∘C)
Safety Approvals: UL, cUL, TUV, CE
RoHS Status: Compliant
Application
The AD0424MS-C50 is a versatile fan designed for use in various electronic and industrial equipment requiring reliable cooling in a compact 40 mm frame. It is frequently employed in 24 V industrial control systems, power supplies, telecommunication gear, and networking devices where low to medium static pressure and balanced noise levels are needed.
