Description

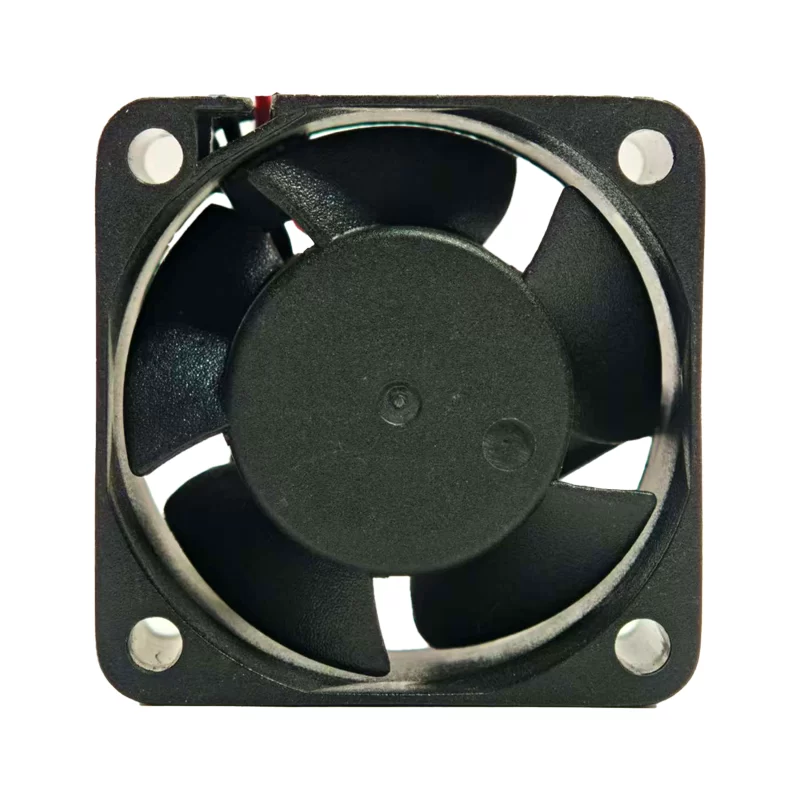

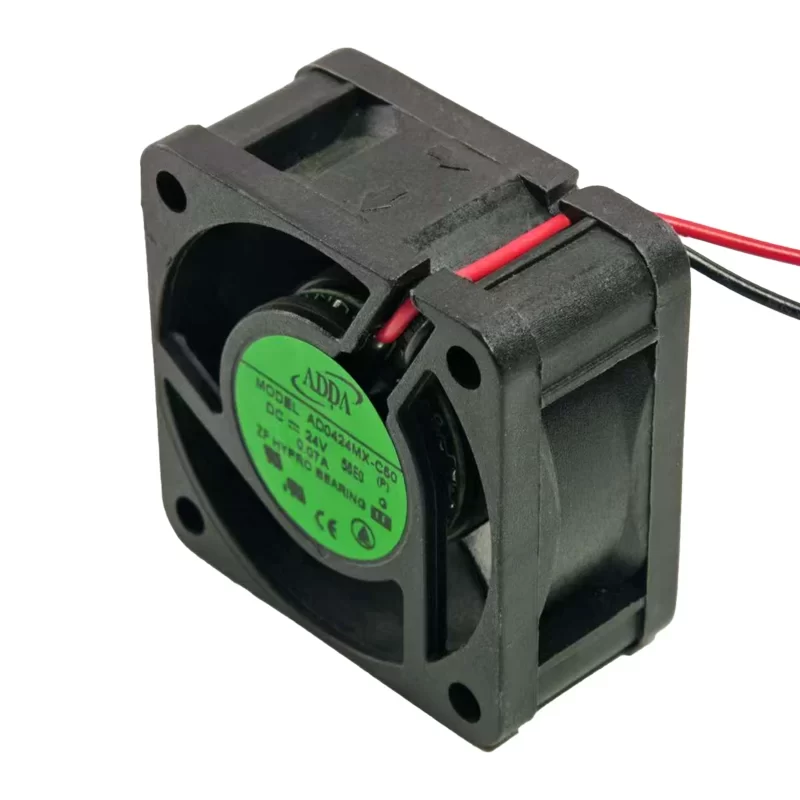

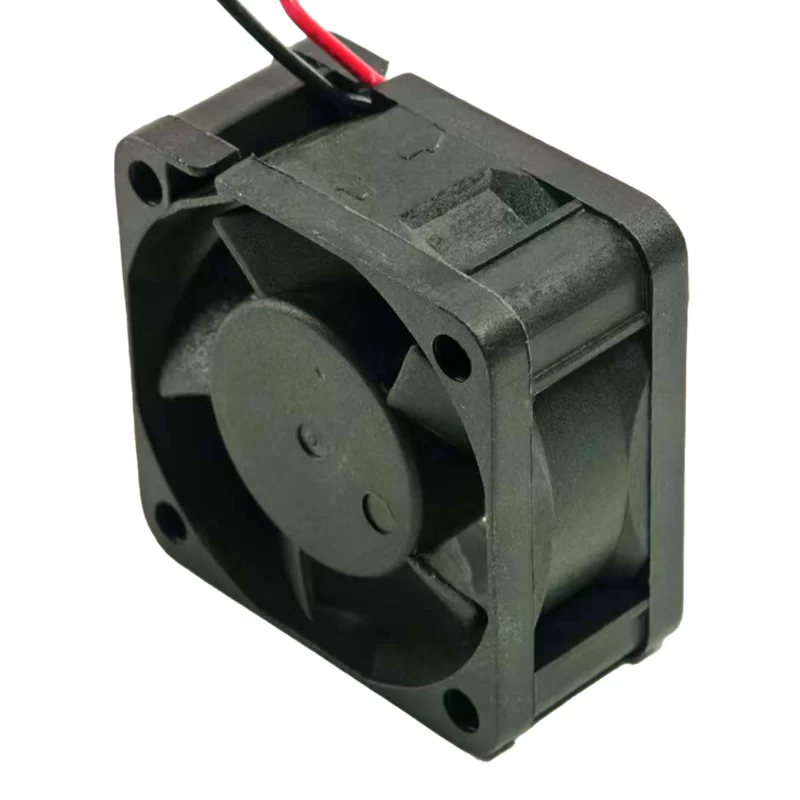

The ADDA AD0424MX-C50 is a high-performance DC Axial Fan with dimensions of 40×40×20 mm. Operating at 24 V, this Medium Speed model has a Rated Current of 0.07 A and a Power Consumption of 1.68 W. It delivers an Airflow of 14.1 m3/h (8.3 CFM) and Static Pressure of 44.8 Pa (0.180 inAq) at a Nominal Speed of 6,700 RPM. It features a Hypro Bearing system and 5 blades, connected via 2-Wire Leads, and is UL, cUL, TUV, CE approved.
AD0424MX-C50 Fan Parameters
Model: AD0424MX-C50
Manufacturer: ADDA
Type: DC Axial Fan
Dimensions: 40×40×20 mm
Operating Voltage: 24 V
Rated Current: 0.07 A
Power Consumption: 1.68 W
Nominal Speed: 6,700 RPM
Airflow: 14.1 m3/h (8.3 CFM)
Static Pressure: 44.8 Pa (0.180 inAq)
Noise Level: 27.5 dB(A)
Bearing Type: Hypro Bearing
Motor Design: Brushless DC Motor
Number of blades: 5
Termination: 2-Wire Leads
Weight: 28 g
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Operating Temperature: −10 ∘C to +70 ∘C
Safety Approvals: UL, cUL, TUV, CE
Application
The AD0424MX-C50 is an efficient 24 V cooling fan suitable for industrial applications, DC power supplies, and telecommunication equipment. Its Medium Speed and 20 mm profile offer a balance of pressure and noise, while the Hypro Bearing provides reliable service life in continuous operation settings.
