Description

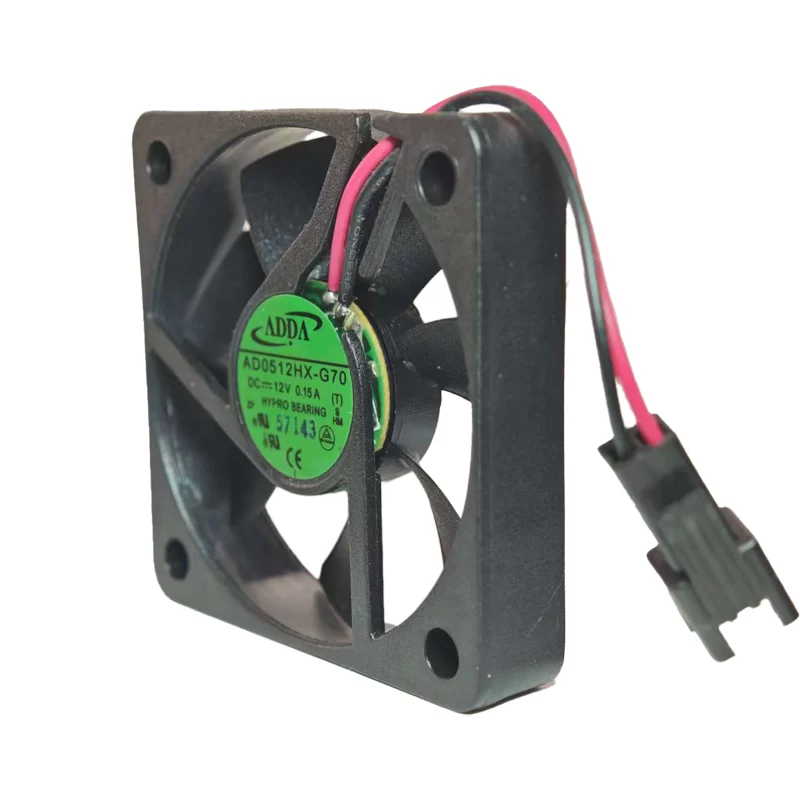

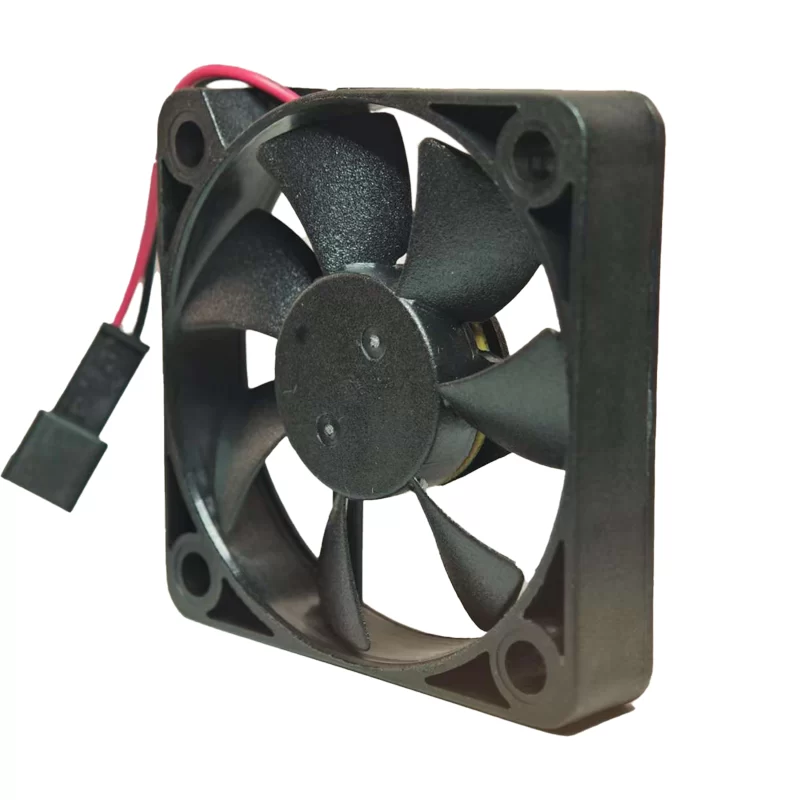

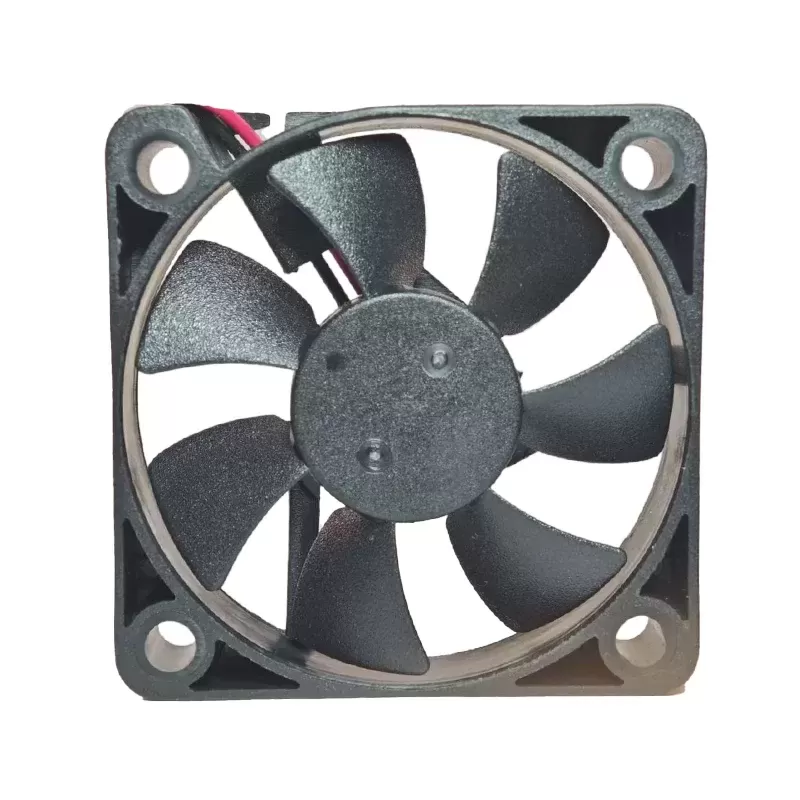

The ADDA AD0512HX-G70 is a compact and efficient 12V DC axial fan measuring 50x50x10mm. Utilizing a Hypro Bearing system, it offers a reliable operational lifespan of 50,000 hours. This fan delivers a respectable 10.30 CFM of airflow at a speed of 5000 RPM, coupled with a relatively low noise level of 30.4 dBA. Its compact size and balanced performance make it an excellent cooling solution for small electronic devices, embedded systems, networking equipment, and other applications where space is limited but effective heat dissipation is required.
Manufacturer: ADDA Corporation
Model: AD0512HX-G70
Type: DC Axial Fan
Dimensions: 50mm x 50mm x 10mm
Nominal Voltage: 12V DC
Current: 0.15A
Power Consumption: 1.80W
Speed: 5000 RPM
Airflow: 10.30 CFM
Static Pressure: 0.100 In H2O
Noise Level: 30.4 dBA
Bearing Type: Hypro Bearing
Termination: 2-wire leads
Life Expectancy: 50,000 hours at 25°C / 65% RH
Frame and Blade Material: Thermoplastic PBT (UL 94V-0 flame rating)
Features: Motor protection by IC, Auto-Restart, Locked Rotor Protection
Safety Approvals: UL, cUL, TUV, CE
