Description

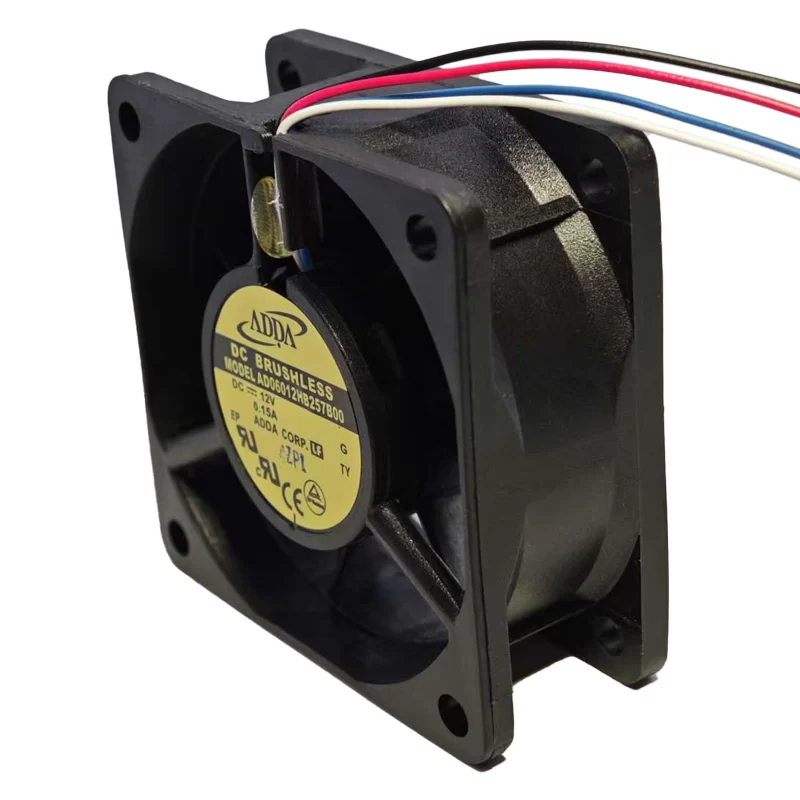

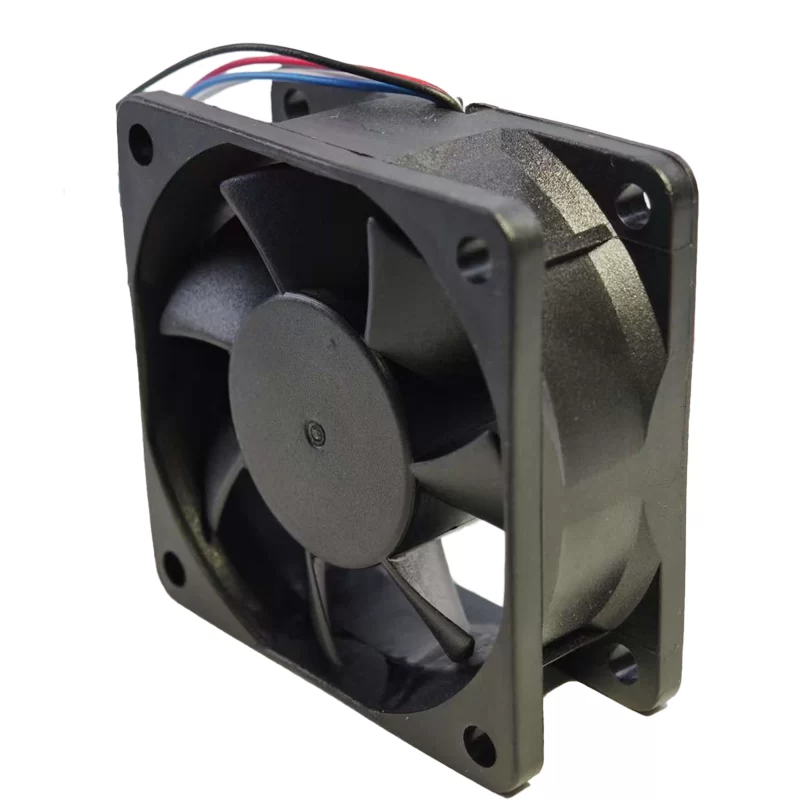

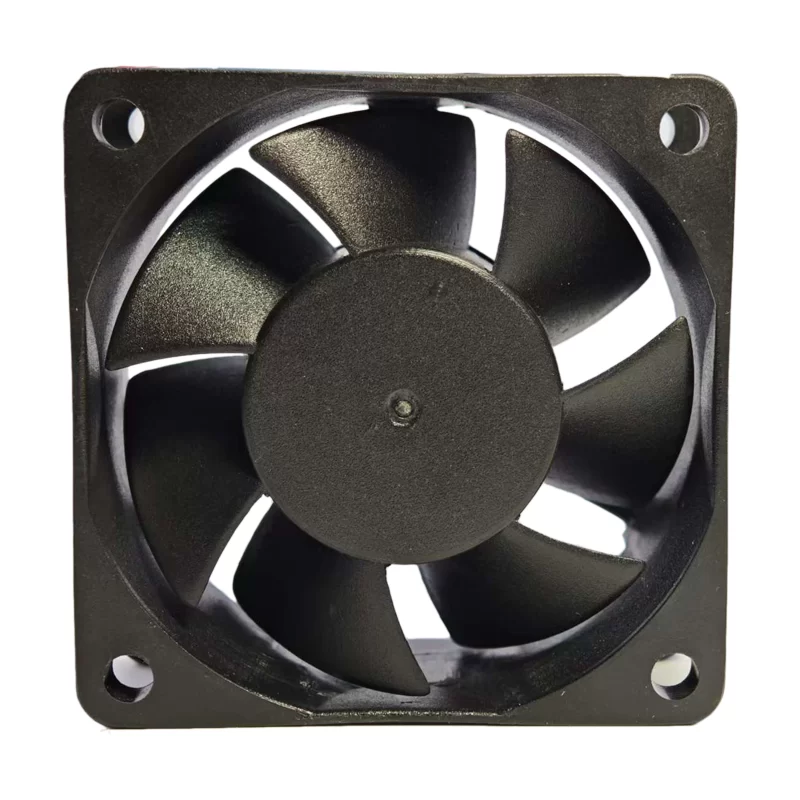

The ADDA AD06012HB257B00 is a reliable 12V DC axial fan, measuring 60x60x25mm. It features ball bearings for excellent durability and a long operational lifespan of 70,000 hours. Drawing 0.15A, this fan provides efficient cooling performance, making it suitable for various electronic applications where space is limited. With its 4-wire termination, it offers both PWM control for precise speed adjustment and a pulse sensor (tachometer) for real-time RPM monitoring. This makes it an ideal choice for mini PCs, embedded systems, networking equipment, and other devices that require controllable, dependable, and efficient thermal management.
AD06012HB257B00 new original ADDA 12V 6025 6CM chassis large air volume inverter fan
Model: AD06012HB257B00
Manufacturer: ADDA Corporation
Type: DC Axial Fan
Dimensions: 60mm x 60mm x 25mm
Nominal Voltage: 12V DC
Current: 0.15A
Power Consumption: 1.8W
Speed: Approximately 3500 – 4000 RPM
Airflow: Approximately 18 – 20 CFM
Static Pressure: Approximately 0.1 – 0.14 In H2O
Noise Level: Approximately 28 – 32 dBA
Bearing Type: Ball Bearing
Life Expectancy: 70,000 hours at 40°C
Termination: 4-wire leads
Frame Material: Plastic
Blade Material: Plastic
Features: PWM Control, Pulse Sensor (Tachometer), Auto-Restart, Locked Rotor Protection
