Description

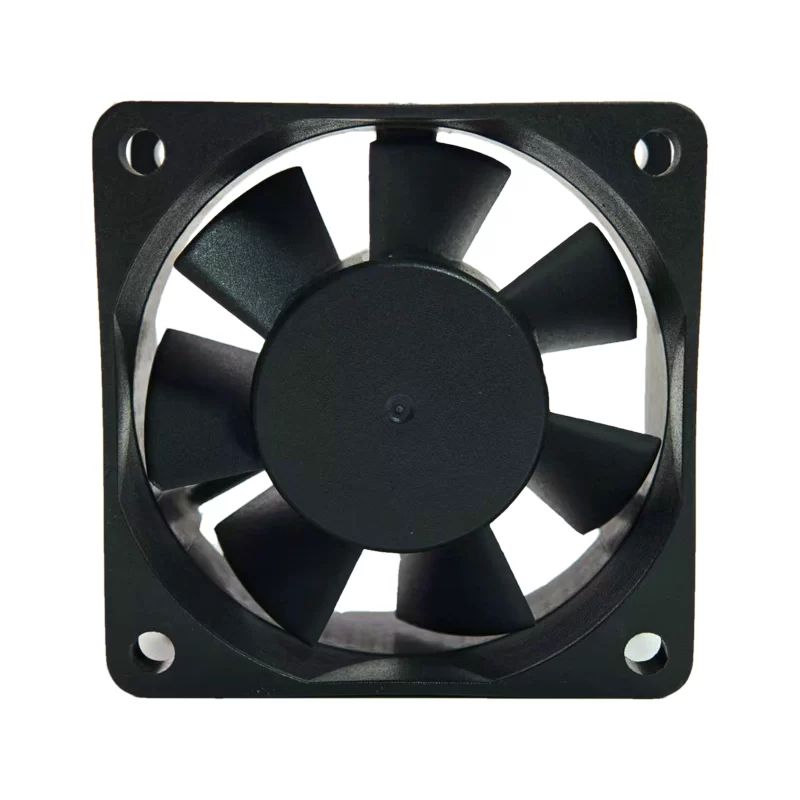

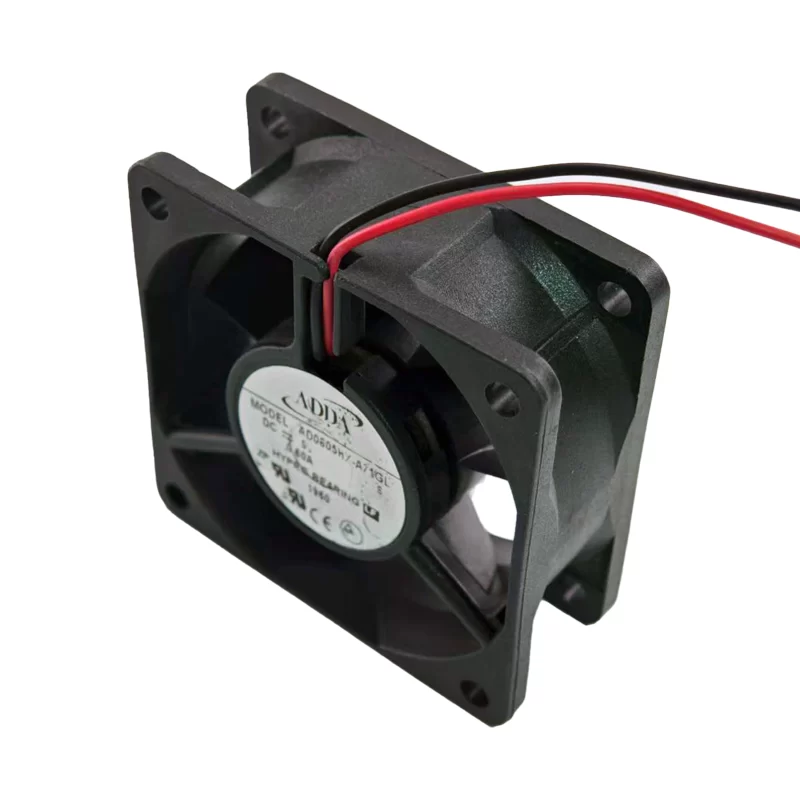

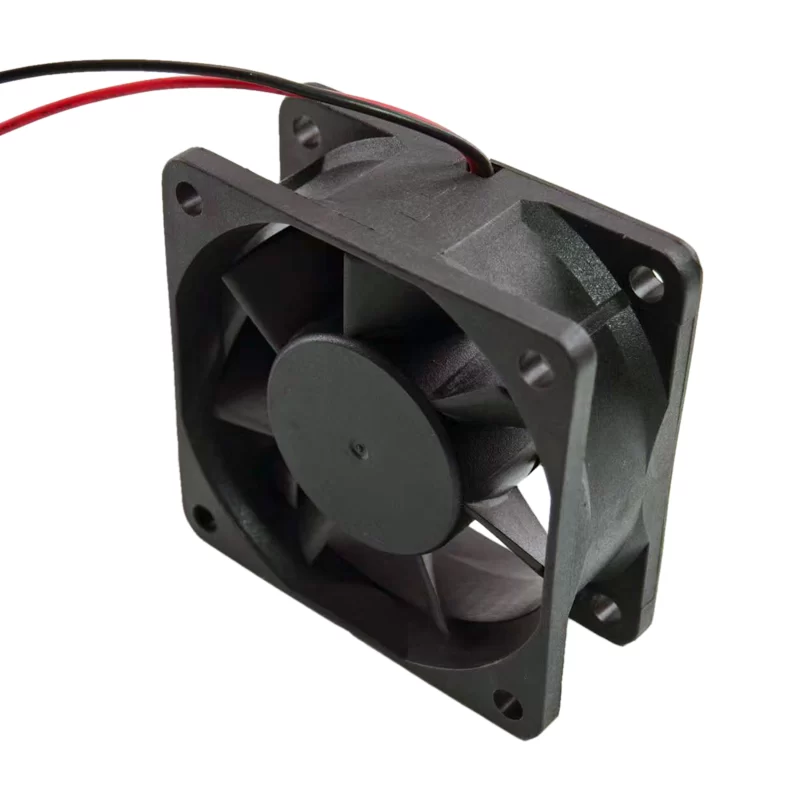

The ADDA AD0605HX-A71GL is a high-speed DC axial fan with dimensions of 60 x 60 x 25 mm. It operates on a rated voltage of 5V DC within a range of 4.5-5.5V, drawing 0.60 A of current and consuming 3.0 W of power. This fan, with 7 blades, delivers an airflow of 25.1 CFM (42.6 m3/h) and a static pressure of 0.17 inch-H₂O (42Pa) at a speed of 5000 RPM. It operates at a noise level of 32 dB(A) and features a Hydraulic bearing with a service life of up to 40,000 hours at 40°C. The fan housing and impeller are constructed from plastic, and this model connects via a 2-wire lead.
AD0605HX-A71GL Fan Parameters
Manufacturer: ADDA
Model: AD0605HX-A71GL
Fan Type: DC Axial Fan
Dimensions: 60 x 60 x 25 mm
Rated Voltage: 5V DC
Operating Voltage Range: 4.5-5.5 V
Current Rating: 0.60 A
Power Consumption: 3.0 W
Airflow: 25.1 CFM
Static Pressure: 0.17 inch-H₂O
Speed: 5000 RPM
Noise Level: 32 dB(A)
Weight: 0.055 kg
Bearing Type: Hydraulic bearing
Number of blades: 7
Termination: 2-Wire Leads
Housing Material: Plastic
Impeller Material: Plastic
Operating Temperature: -10 °C to 70 °C
Service Life: 40000 h at 40 °C
Approval: UL, cUL, CE
Application
The AD0605HX-A71GL fan is suitable for CPU cooling, PC cases, and general electronics cooling in applications where a balance of performance and quiet operation is required.
