Description

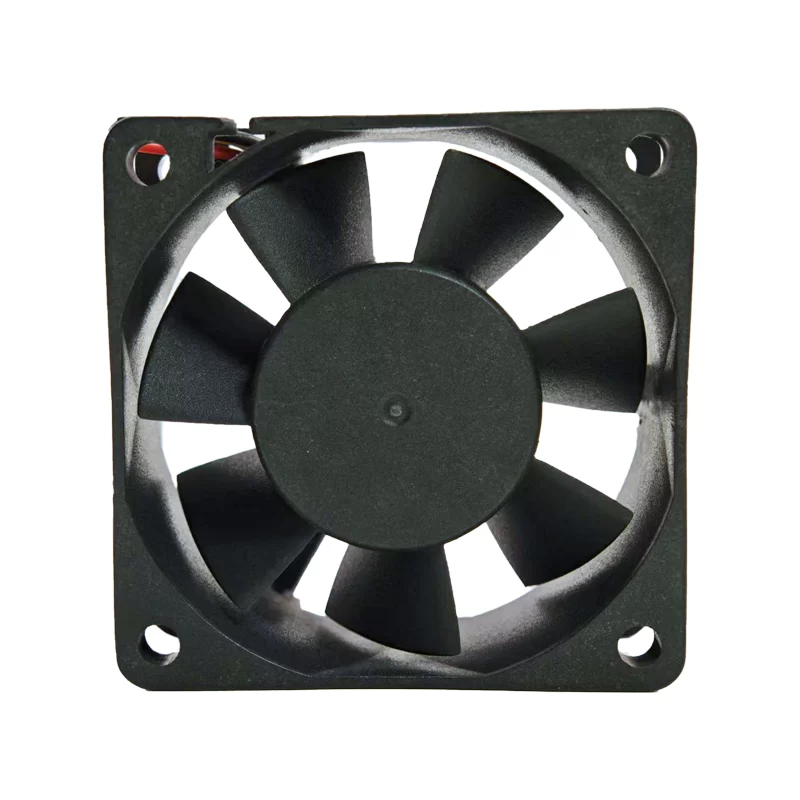

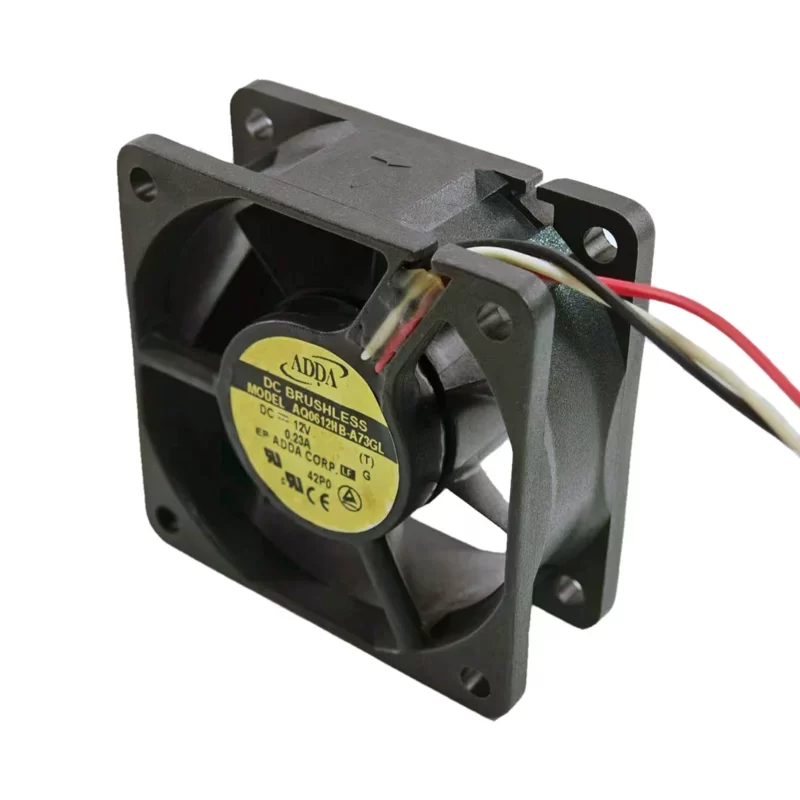

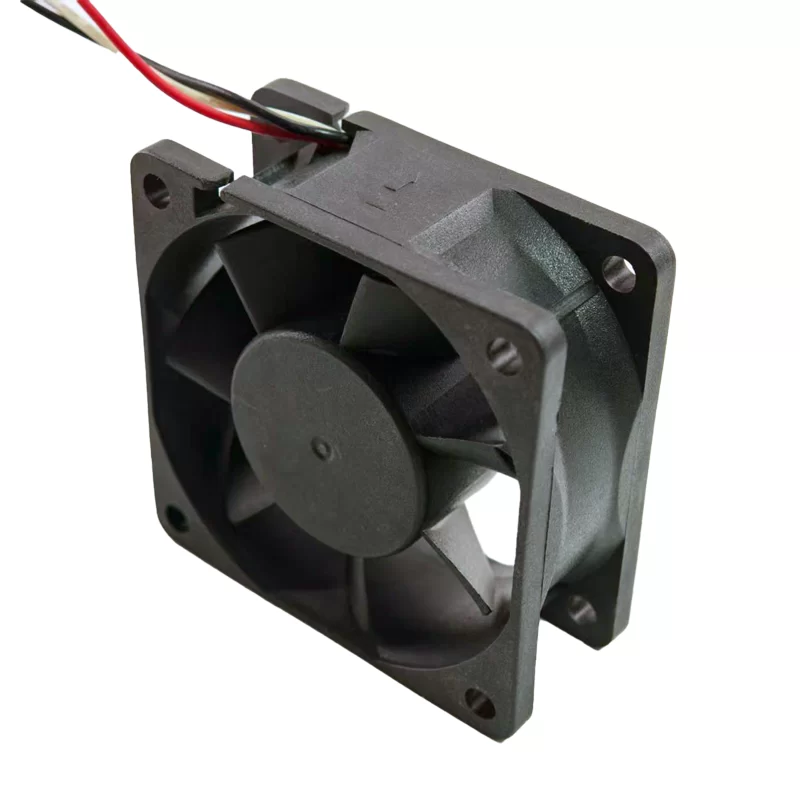

The ADDA AD0612HB-A73GL is a high-performance DC Axial Fan with dimensions of 60×60×25 mm. This High Speed fan operates at 12 V, drawing 0.23 A of Rated Current for a Power Consumption of 2.76 W. It is a 3-wire model that provides Tachometer Output (FG) for speed monitoring. It uses a Ball Bearing system and is rated for a Nominal Speed of 4,500 RPM. It delivers an Airflow of 39.4 m3/h (23.2 CFM) and Static Pressure of 46.8 Pa (0.188 inAq), with a Noise Level of 32.3 dB(A).
AD0612HB-A73GL Fan Parameters
Model: AD0612HB-A73GL
Manufacturer: ADDA
Type: DC Axial Fan
Dimensions: 60×60×25 mm
Operating Voltage: 12 V
Rated Current: 0.23 A
Power Consumption: 2.76 W
Nominal Speed: 4,500 RPM
Airflow: 39.4 m3/h (23.2 CFM)
Static Pressure: 46.8 Pa (0.188 inAq)
Noise Level: 32.3 dB(A)
Bearing Type: Ball Bearing
Termination: 3-Wire Leads (Tachometer Output)
Number of blades: 7
Frame Material: Plastic (PBT)
Impeller Material: Plastic (PBT)
Weight: 68 g
Safety Approvals: UL, CUL, TUV, CE
RoHS Status: Compliant
Application
This high-speed fan is suitable for applications requiring substantial cooling performance in a compact space, such as server components, network switches, small industrial equipment, and power supplies. The integrated Tachometer Output allows the host system to monitor the fan’s speed in real-time for performance management and to trigger an alarm in case of a fan failure.
