Description

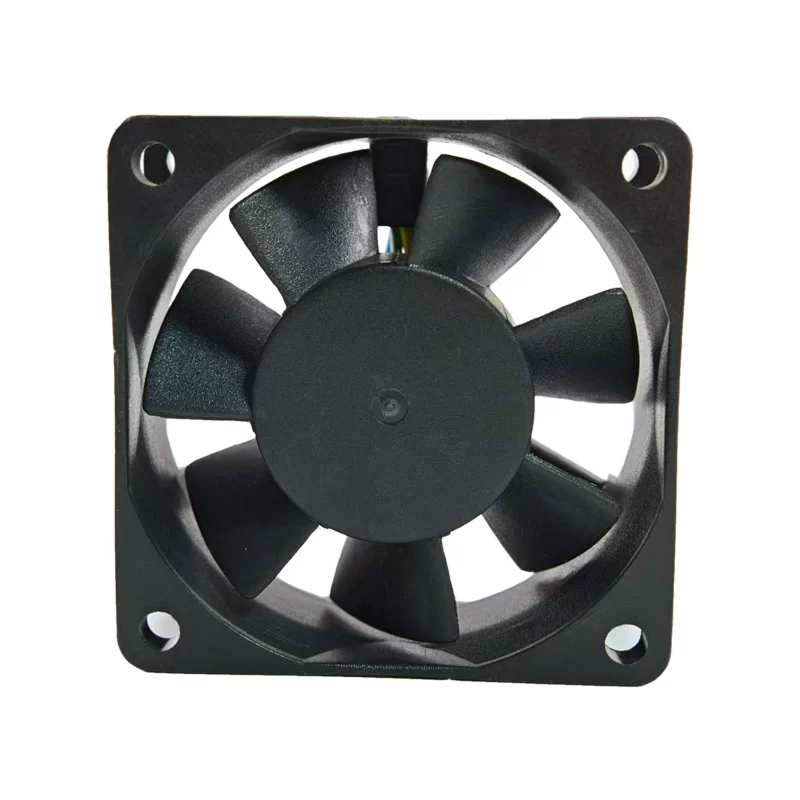

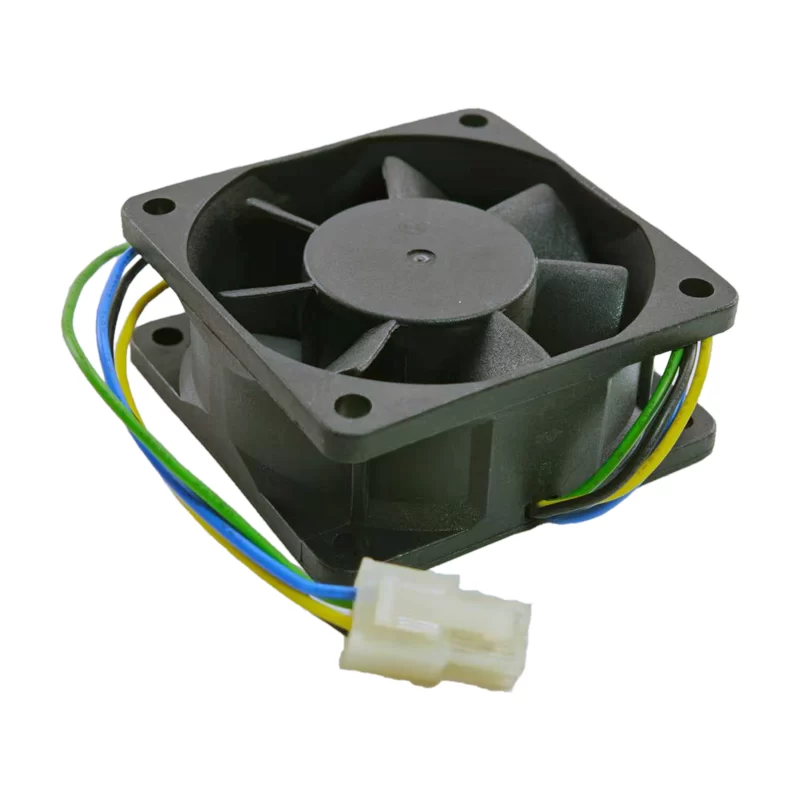

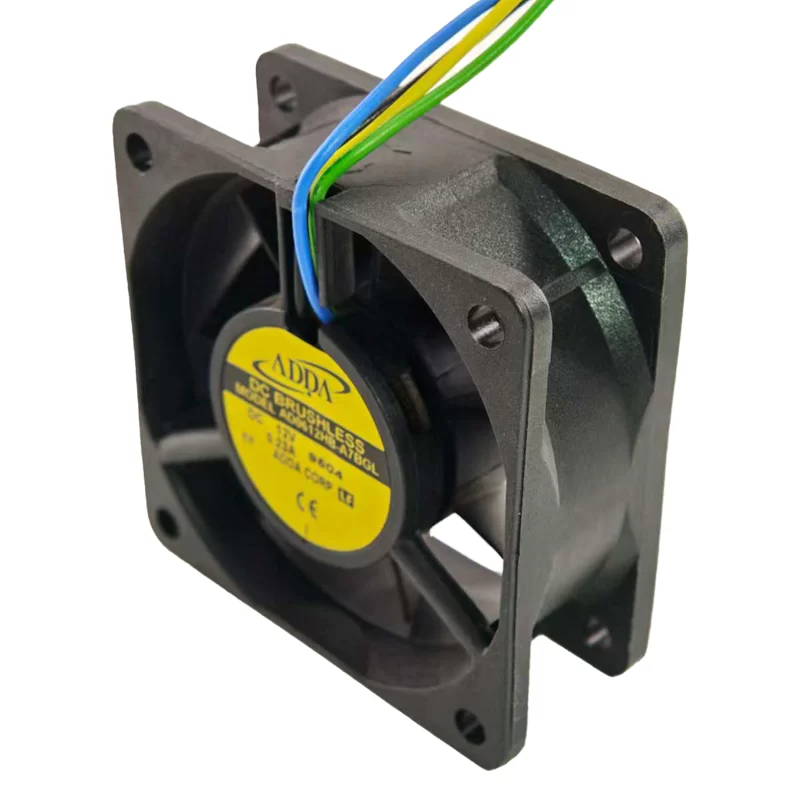

The ADDA AD0612HB-A7BGL is a high-performance DC Axial Fan with dimensions of 60 x 60 x 25 mm. This 12 V DC fan, measuring 60 x 60 x 25 mm, delivers an airflow of 39.4 m³/h (or 23.2 CFM) at a high speed of 4500 RPM. It operates with a current draw of 0.23 A and 2.76 W of power, generating a noise level of 32.3 dB(A). Featuring a durable Ball Bearing system and fire-retardant plastic components, the AD0612HB-A7BGL is ideally suited for compact cooling solutions in sensitive electronic devices.
AD0612HB-A7BGL Fan Parameters
Model: AD0612HB-A7BGL
Manufacturer: ADDA
Type: DC Axial Fan
Dimensions: 60 x 60 x 25 mm
Voltage: 12 V DC
Current: 0.23 A
Power: 2.76 W
Speed: 4500 RPM
Airflow: 39.4 m³/h
Airflow (CFM): 23.2 CFM
Noise Level: 32.3 dB(A)
Bearing Type: Ball Bearing
Weight: 65 g
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Termination: 2 Wires lead
Application
The ADDA AD0612HB-A7BGL is designed for efficient cooling in applications with limited space, such as mini-servers, small form-factor PCs, embedded systems, and various networking and telecommunications equipment where its compact size and high-speed airflow are critical for heat dissipation.
