Description

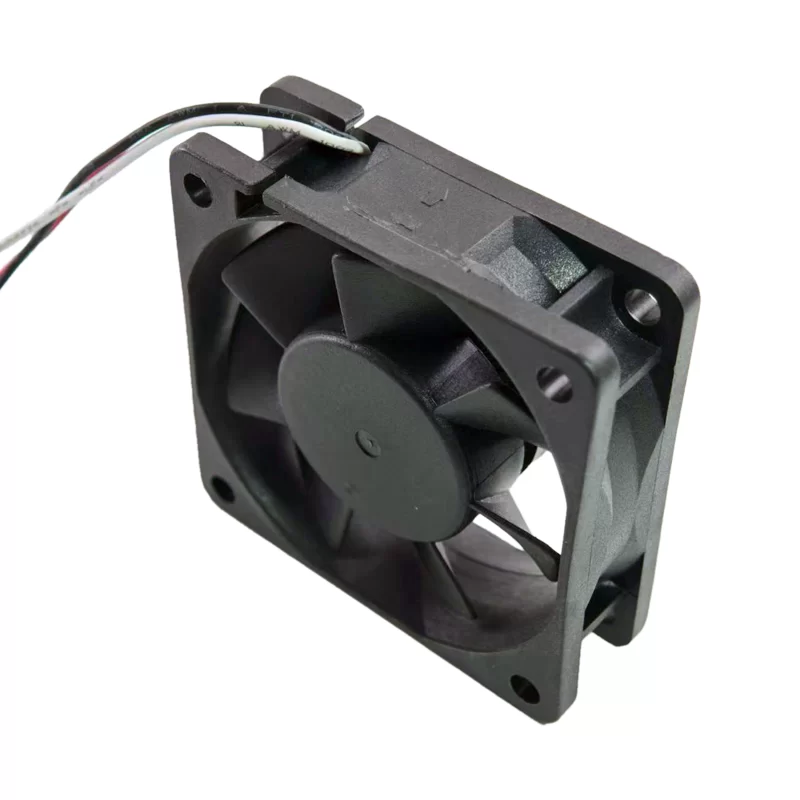

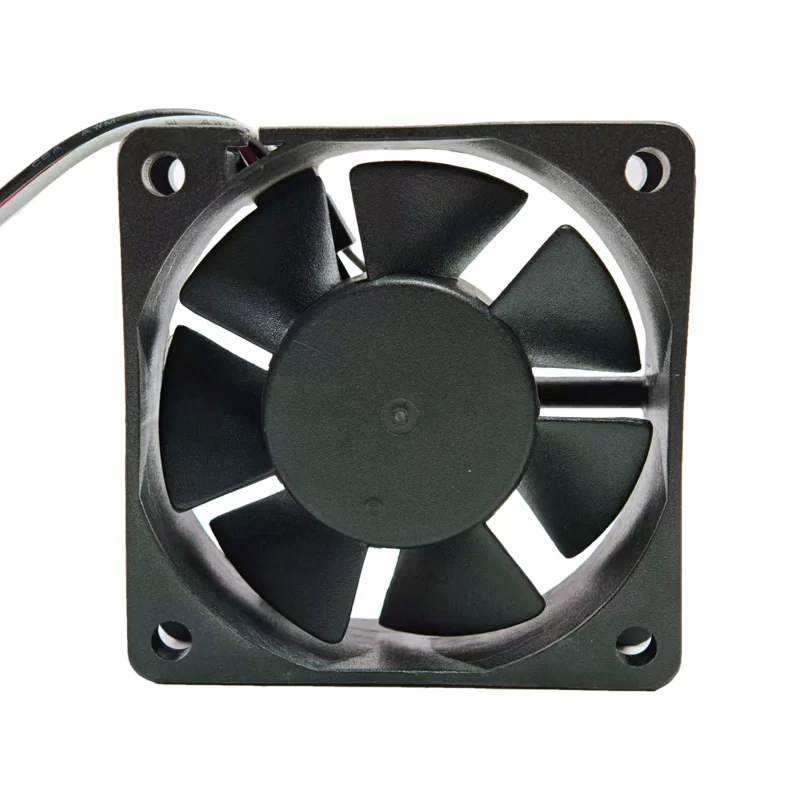

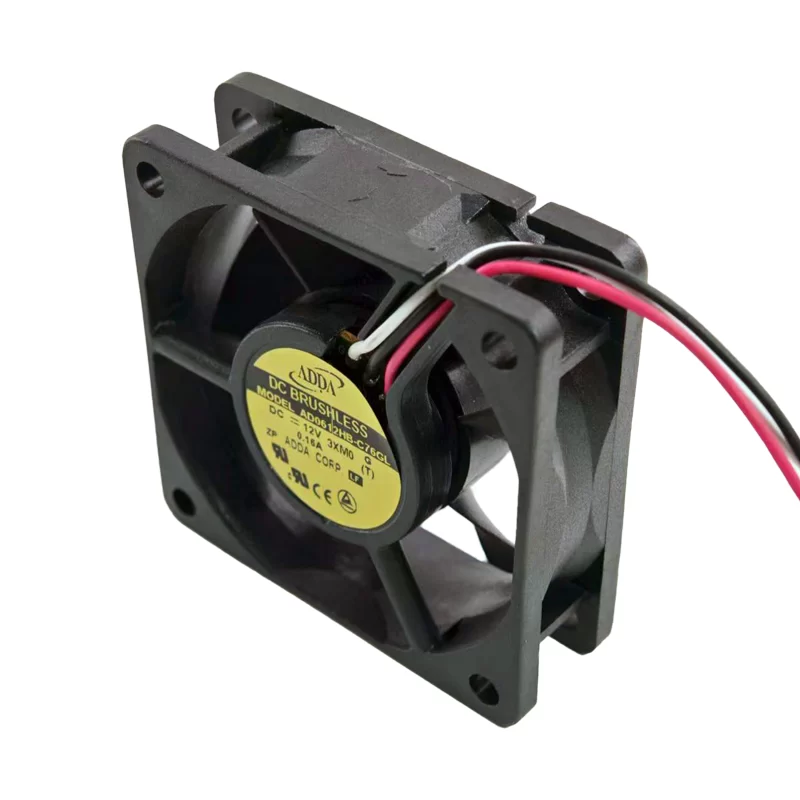

The ADDA AD0612HB-C76GL is a high-speed DC axial fan with dimensions of 60 x 60 x 20 mm. It operates on a rated voltage of 12V DC within a range of 6-13.8V, drawing 0.16 A of current and consuming 1.92 W of power. This fan, with 7 blades, delivers an airflow of 25 CFM (42.5 m3/h) and a static pressure of 0.16 inch-H₂O (40Pa) at a speed of 5000 RPM. It operates at a noise level of 34 dB(A) and features a ball bearing with a service life of up to 50,000 hours at 40°C. The fan housing and impeller are constructed from plastic, and this model includes a tachometer signal for speed monitoring.
AD0612HB-C76GL Fan Parameters
Manufacturer: ADDA
Model: AD0612HB-C76GL
Fan Type: DC Axial Fan
Dimensions: 60 x 60 x 20 mm
Rated Voltage: 12V DC
Operating Voltage Range: 6-13.8 V
Current Rating: 0.16 A
Power Consumption: 1.92 W
Airflow: 25 CFM
Static Pressure: 0.16 inch-H₂O
Speed: 5000 RPM
Noise Level: 34 dB(A)
Weight: 0.065 kg
Bearing Type: Ball bearing
Number of blades: 7
Termination: 3-Wire Leads
Housing Material: Plastic
Impeller Material: Plastic
Operating Temperature: -10 °C to 70 °C
Service Life: 50000 h at 40 °C
Motor Protection: Protection against reverse polarity, locked rotor, and thermal overload
Approval: UL, cUL, CE
Application
The AD0612HB-C76GL fan is suitable for inverter cooling, CPU cooling, PC cases, and general electronics cooling in applications where a balance of performance and quiet operation is required.
