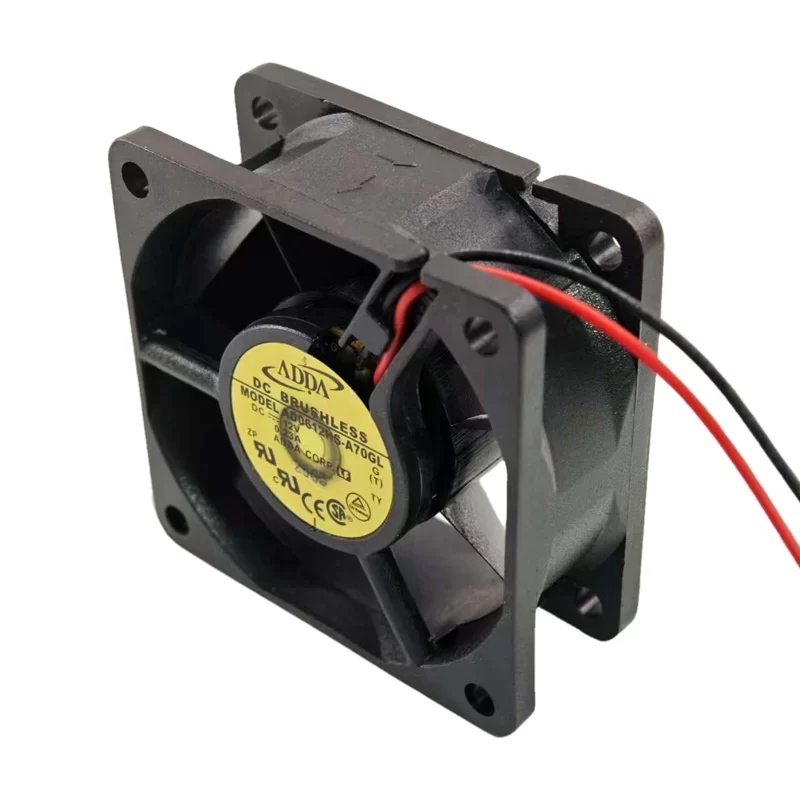

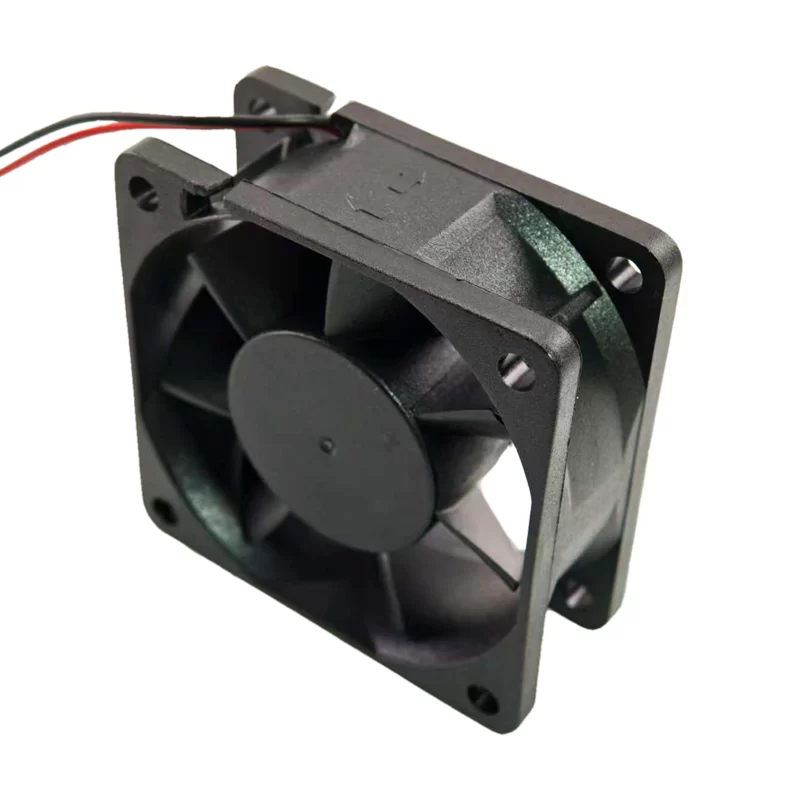

AD0612HS-A70GL ADDA 12V DC Axial Fan

Description

The ADDA AD0612HS-A70GL is a high-performance DC Axial Fan with dimensions of 60×60×25 mm. Operating at 12 V, this High Speed fan has a Rated Current of 0.23 A and a Power Consumption of 2.76 W. It operates at a Nominal Speed of 4,500 RPM with 7 blades, delivering an Airflow of 39.42 m3/h (23.2 CFM) and Static Pressure of 46.8 Pa (0.188 inAq), with a Noise Level of 32.3 dB(A). It utilizes a Sleeve Bearing system and is certified by UL, cUL, TUV, CSA, and CE.

AD0612HS-A70GL Fan Parameters
Model: AD0612HS-A70GL
Manufacturer: ADDA
Type: DC Axial Fan
Dimensions: 60×60×25 mm
Operating Voltage: 12 V
Rated Current: 0.23 A
Power Consumption: 2.76 W
Nominal Speed: 4,500 RPM
Airflow: 39.42 m3/h (23.2 CFM)
Static Pressure: 46.8 Pa (0.188 inAq)
Noise Level: 32.3 dB(A)
Bearing Type: Sleeve Bearing
Motor Design: Brushless DC Motor

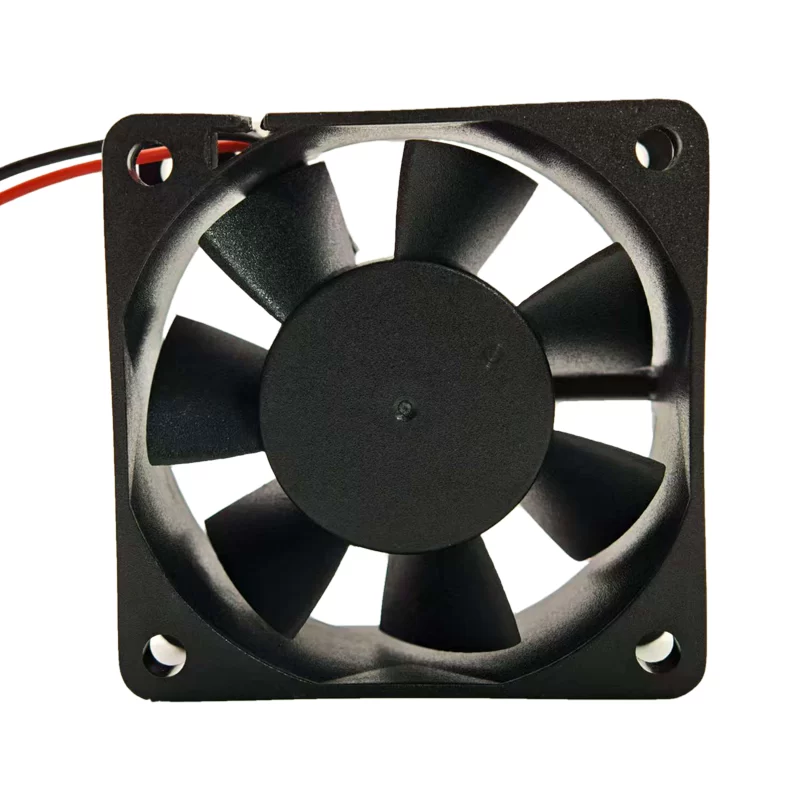

Number of blades: 7
Termination: 2-Wire Leads
Weight: 68 g
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Operating Temperature: −10 ∘C to +70 ∘C
Life Expectancy: 30,000 hours
Safety Approvals: UL, cUL, TUV, CSA, CE

Application
The AD0612HS-A70GL Sleeve Bearing model provides a cost-effective cooling solution for components requiring medium-to-high airflow in a 60×60 mm form factor. It is commonly used in consumer electronics, small appliances, and general-purpose ventilation where initial cost is prioritized, and the fan is not expected to operate under extreme vertical loads or high vibration.
