Description

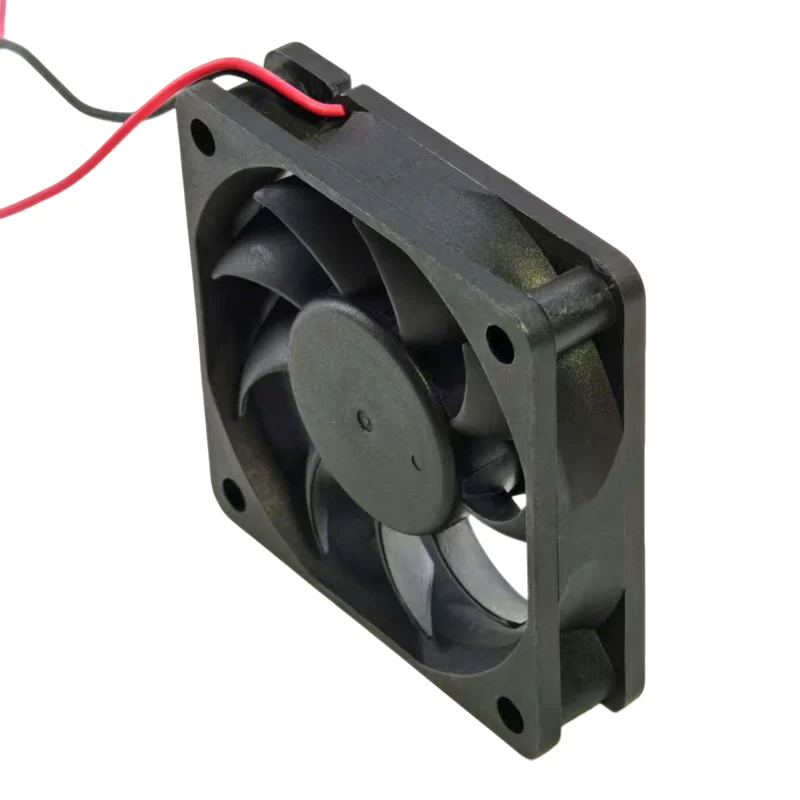

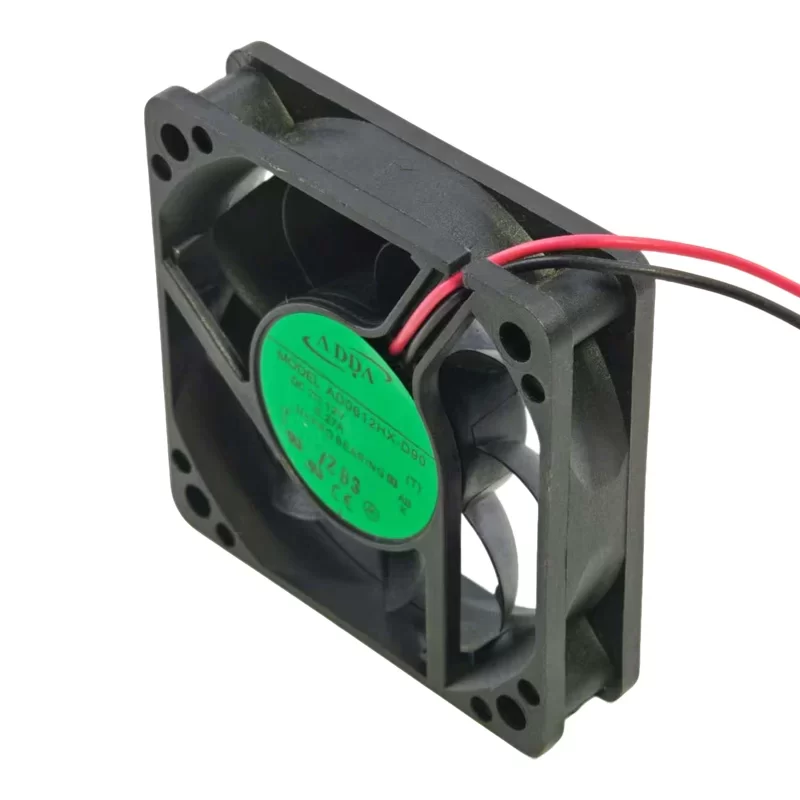

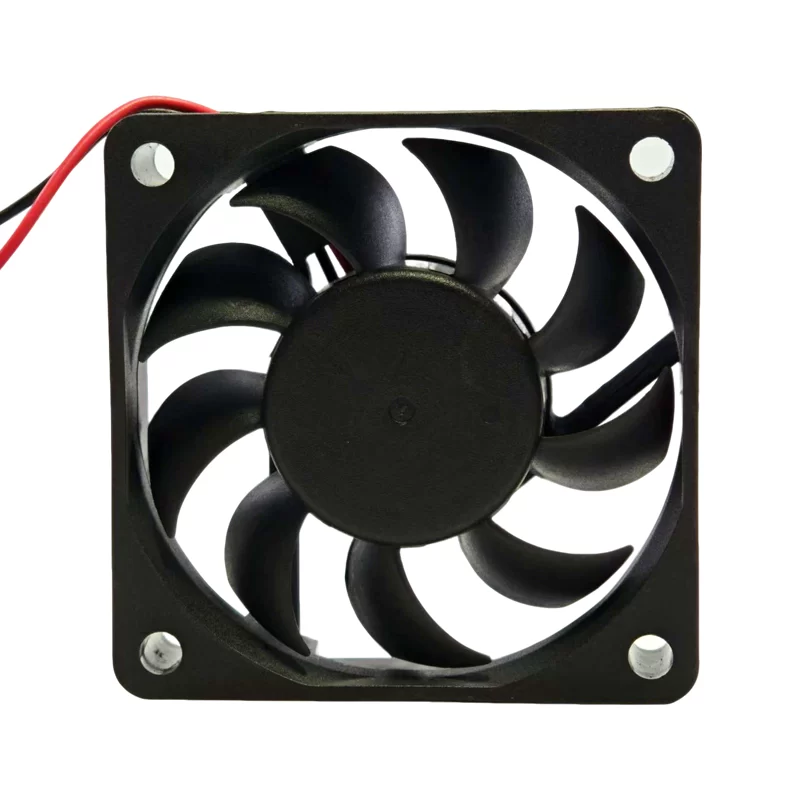

The ADDA AD0612HX-D90 is a DC axial fan with dimensions of 60 x 60 x 15 mm. It operates on 12V DC, drawing 0.27 A of current and consuming 3.24 W of power. This fan runs at a speed of 4500 RPM, delivering an airflow of 22.67 CFM with a static pressure of 0.143 inch H₂O. It produces a noise level of 32.7 dB(A). The fan utilizes a Hypro Bearing for reliability and is terminated with two-wire leads. It is constructed from thermoplastic materials and operates within a temperature range of -10 °C to 70 °C.
AD0612HX-D90 Fan Parameters
Manufacturer: ADDA
Model: AD0612HX-D90
Fan Type: DC Axial Fan
Dimensions: 60 x 60 x 15 mm
Rated Voltage: 12V DC
Current Rating: 0.27 A
Power Consumption: 3.24 W
Airflow: 22.67 CFM
Static Pressure: 0.143 inch H₂O
Speed: 4500 RPM
Noise Level: 32.7 dB(A)
Bearing Type: Hypro Bearing
Termination: 2-Wire Leads
Housing Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10 °C to 70 °C
Application
The AD0612HX-D90 is an inverter axial cooling fan suitable for CPU cooling, personal computers, and electronic enclosures that require efficient and quiet cooling in a slim form factor.
